Sunroof Motor: Removal: Pickup

CAUTION: When removing clip, use great care not to damage the roof trim.
  1. Completely close the sunroof.
  2. Disconnect ground cable from battery.
  3. Remove sunroof lid. Refer to REMOVAL  , Sunroof Lid.
  4. Confirm the matching mark (A) of rear sunroof bracket link and the guide from sunroof opening. (If the mark does not match, adjust to match the mark.)
    Fig 1: Locating Matching Mark
    G03510794Courtesy of SUBARU OF AMERICA, INC.
  5. Remove roof trim. Refer to REMOVAL , Roof Trim.
  6. Remove motor cover.

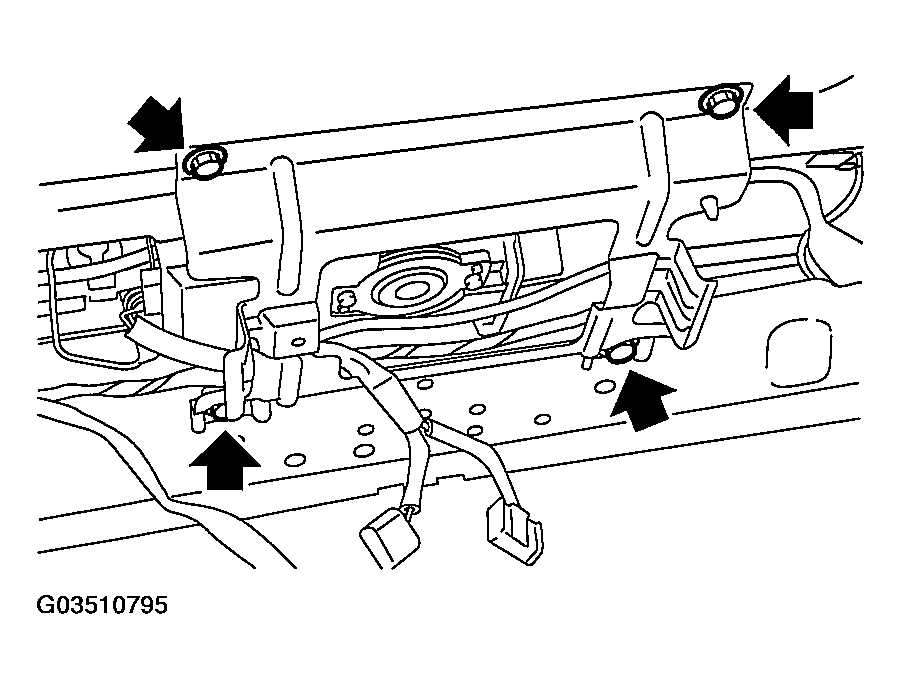

    Fig 2: Removing Motor Cover
    G03510795Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect harness connector and remove sunroof motor mounting screw.
