Sunroof Lid: Removal: Pickup

  1. Completely close rear sunroof lid and open sunshade.
  2. Remove covers (A) then remove nuts (B).

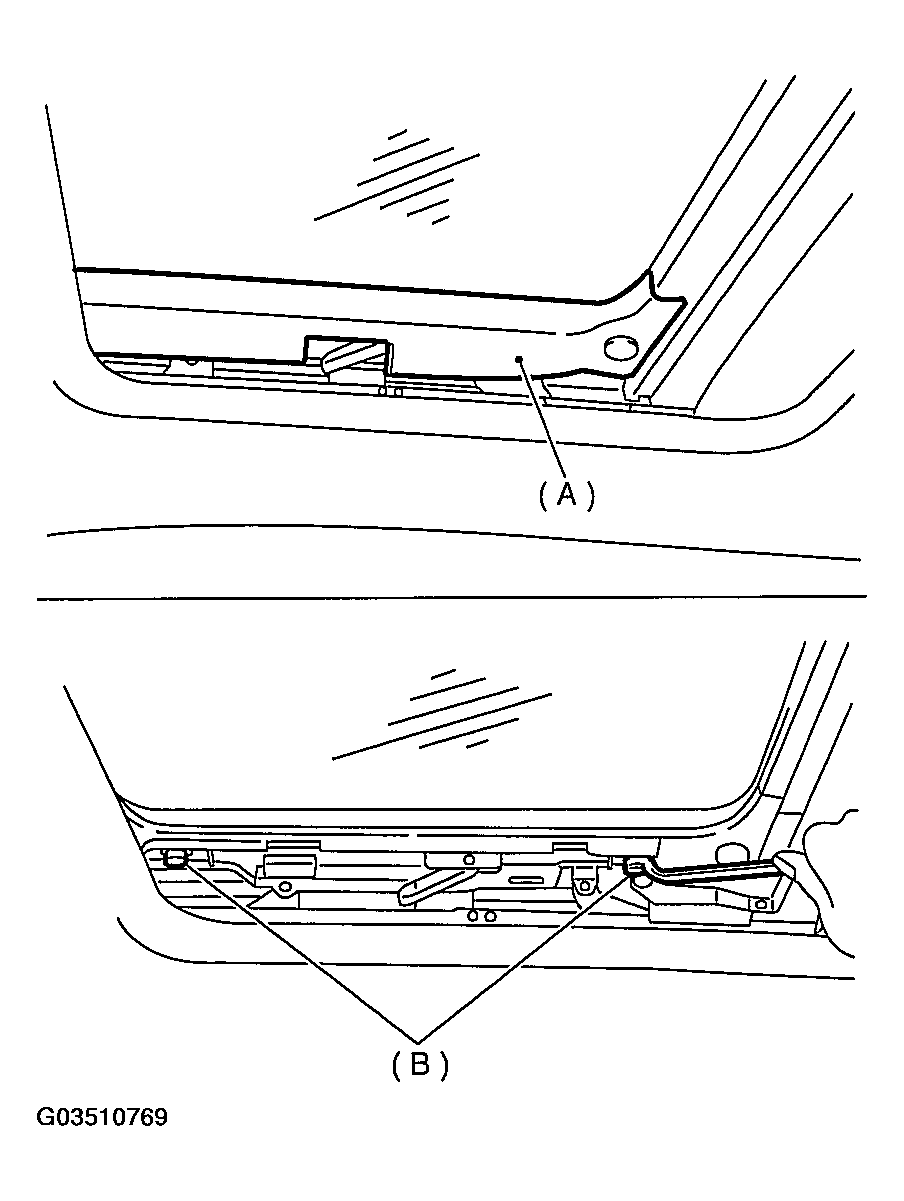

    Fig 1: Removing Covers
    G03510769Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the sunroof lid carefully.
