Alignment Of Height Between Sunroof Lid And Roof Panel

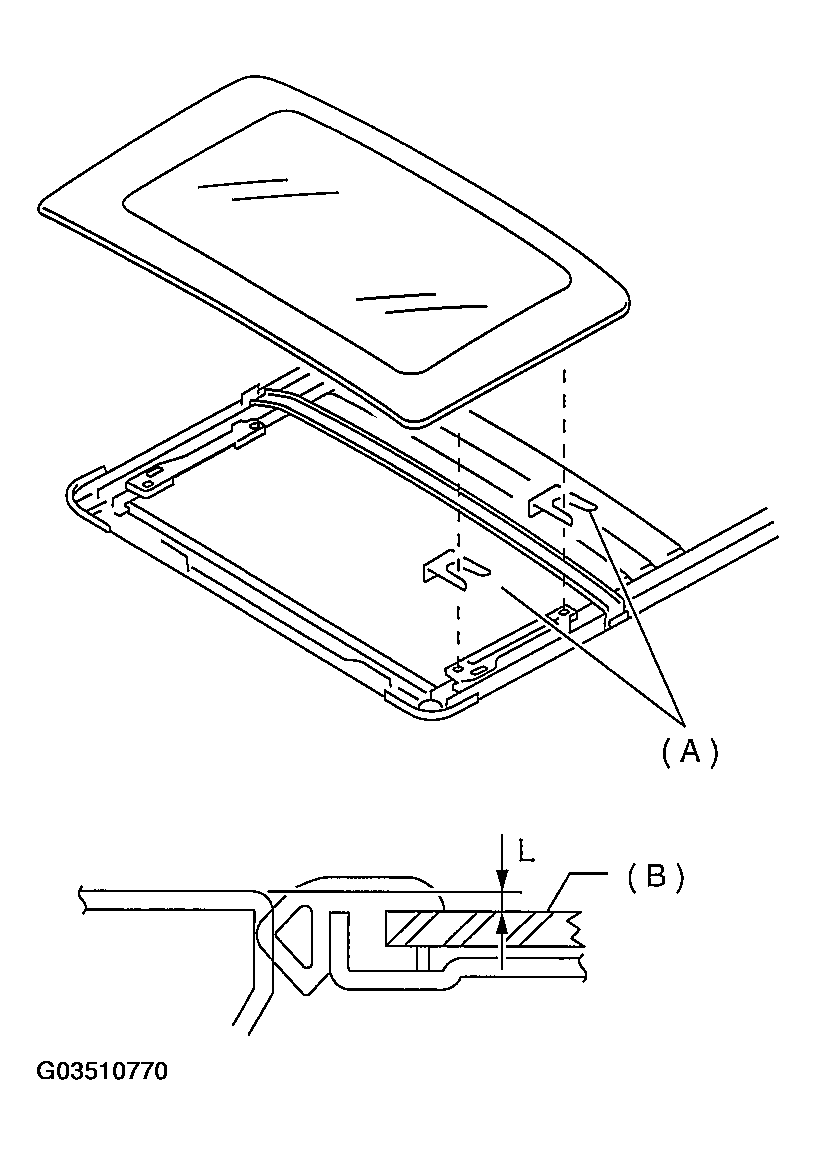

Loosen sunroof lid mounting nut. Adjust height between sunroof lid and lid bracket by number of shims being inserted into the space. Number of shims: Standard: 1 piece
Max.: 3 pieces [1 piece (standard) + 2 pieces (addition)]
Min.: zero piece
Difference in height between sunroof lid and roof panel: L
L: 2.0+/-0.5 mm (0.079+/-0.020 in)
