Wagon (Rear)

  1. Disconnect ground cable from battery.
  2. Remove roof trim. Refer to REMOVAL , Roof Trim.
  3. Remove rear sunroof lid. Refer to SEDAN AND WAGON (REAR)  , Sunroof Lid.
  4. Disconnect drain tubes (A) from rear sunroof frame.
  5. Disconnect sunroof harness connector (B).
  6. Remove sunroof brackets (C).
  7. Remove bolts (D) and nuts (E) then detach the sunroof frame.

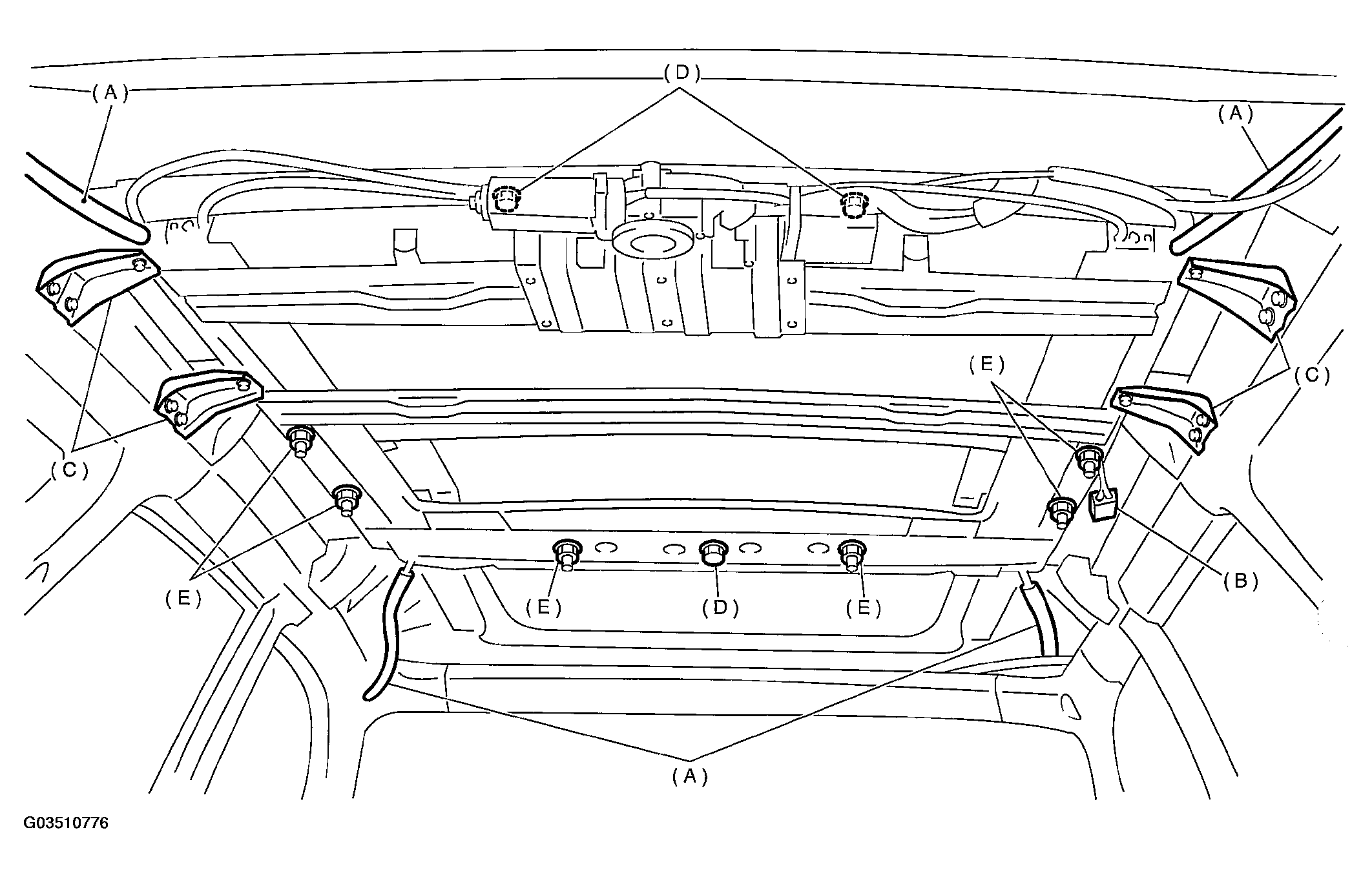

    Fig 1: Removing Bolts & Nuts
    G03510776Courtesy of SUBARU OF AMERICA, INC.
