Wagon (Rear)

  1. Remove rear sunroof frame.
  2. Remove sunroof motor bracket mounting screws (A).
  3. Remove rail stoppers (B) then pull the motor assembly (C) in the direction shown in the figure.

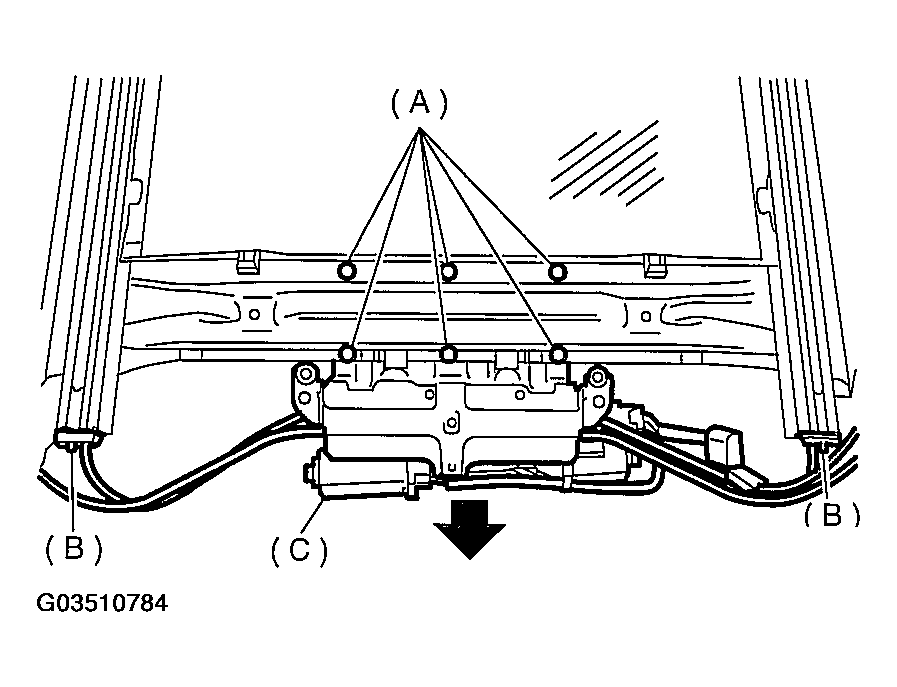

    Fig 1: Removing Rail Stoppers
    G03510784Courtesy of SUBARU OF AMERICA, INC.
  4. Pull out the sunshade (A) from sunroof frame.

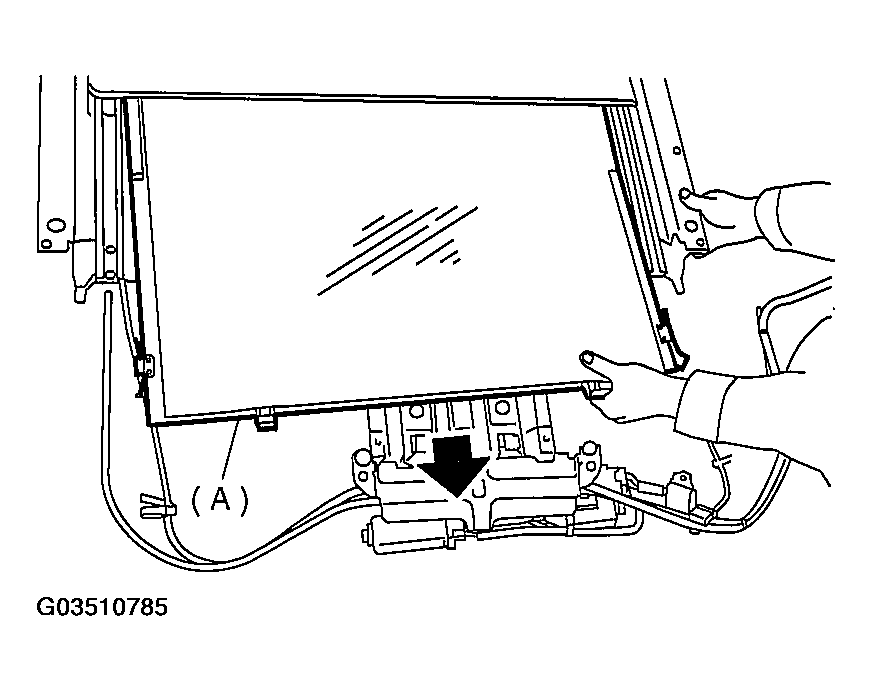

    Fig 2: Pulling Out Sunshade From Sunroof Frame
    G03510785Courtesy of SUBARU OF AMERICA, INC.
