Sedan And Wagon (Front)

  1. Remove sunroof frame.
  2. Remove rail stoppers (A).
    Fig 1: Removing Rail Stoppers
    G03510782Courtesy of SUBARU OF AMERICA, INC.
  3. Pull out the sunshade (A) from sunroof frame.

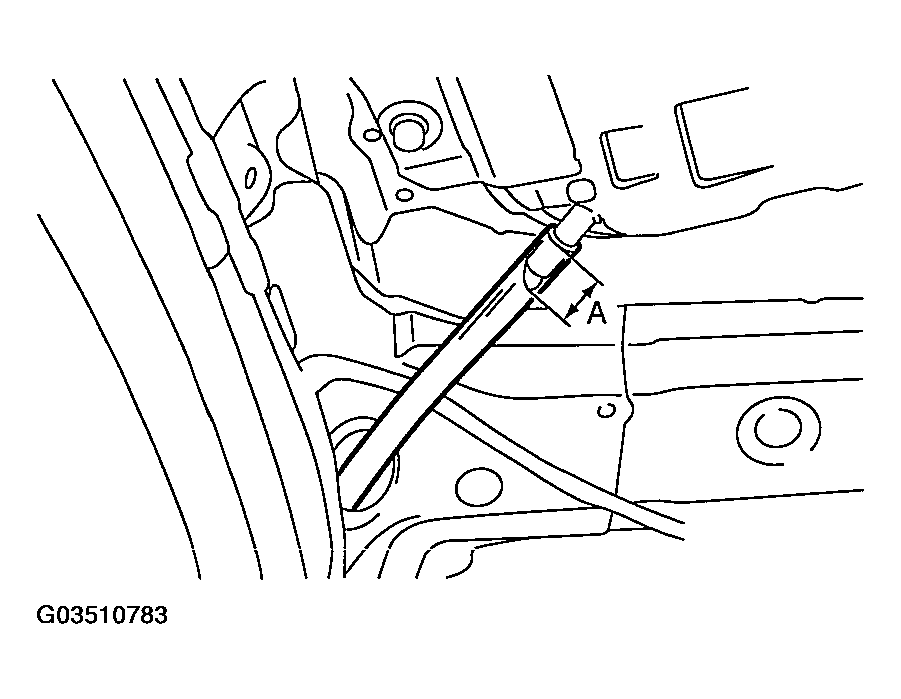

    Fig 2: Pulling Out Sunshade From Sunroof Frame
    G03510783Courtesy of SUBARU OF AMERICA, INC.
