Rear Bulkhead Trim: Removal

  1. Remove side sill rear upper cover.
    Fig 1: Removing Side Sill Rear Upper Cover
    G03510519Courtesy of SUBARU OF AMERICA, INC.
  2. Fold rear seat backrest.
  3. Remove floor trim panel.

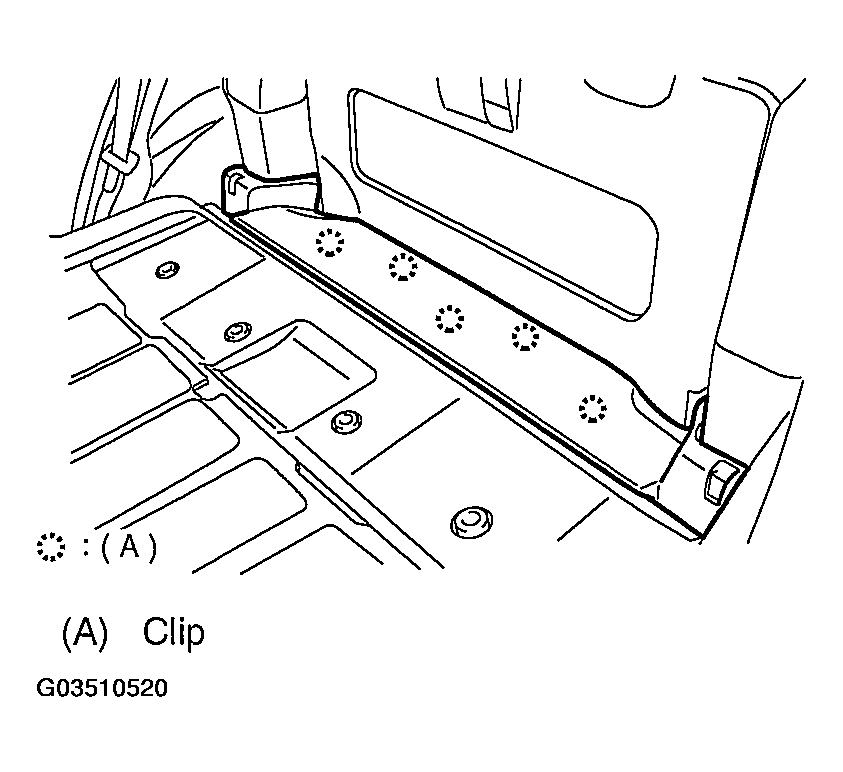

    Fig 2: Removing Floor Trim Panel
    G03510520Courtesy of SUBARU OF AMERICA, INC.
  4. Remove rear pillar lower trim.

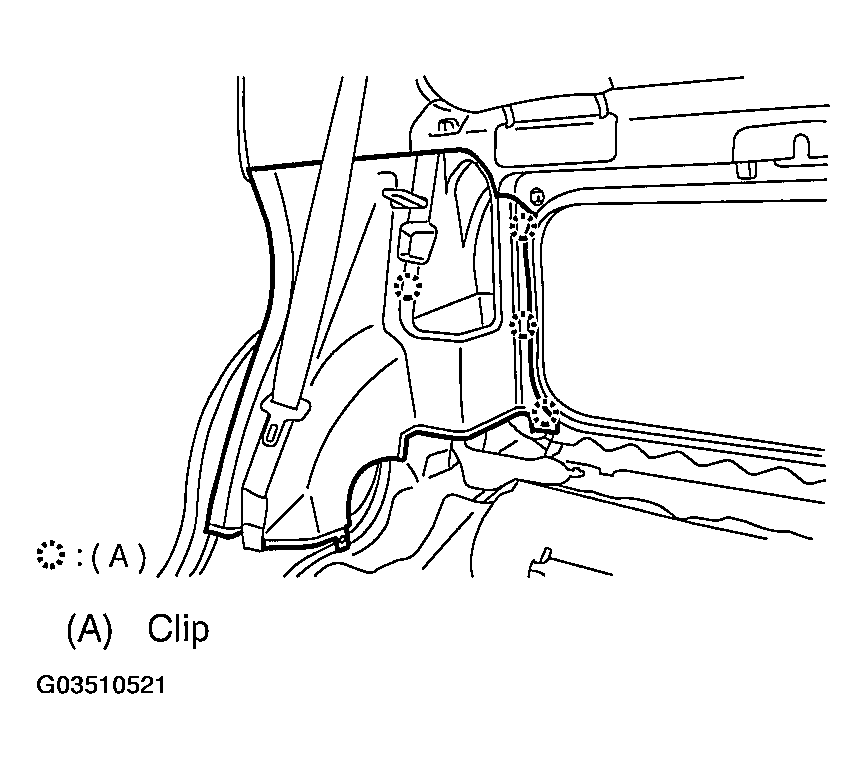

    Fig 3: Removing Rear Pillar Lower Trim
    G03510521Courtesy of SUBARU OF AMERICA, INC.
  5. Remove rear seat pillar.
    Fig 4: Removing Rear Seat Pillar
    G03510522Courtesy of SUBARU OF AMERICA, INC.
  6. Remove cargo net hook and rear bulkhead trim.
    Fig 5: Removing Cargo Net Hook & Rear Bulkhead Trim
    G03510523Courtesy of SUBARU OF AMERICA, INC.
