Hood Grille: Removal

  1. Remove hood insulator.
  2. Remove six bolts and clip (A) to remove hood duct.

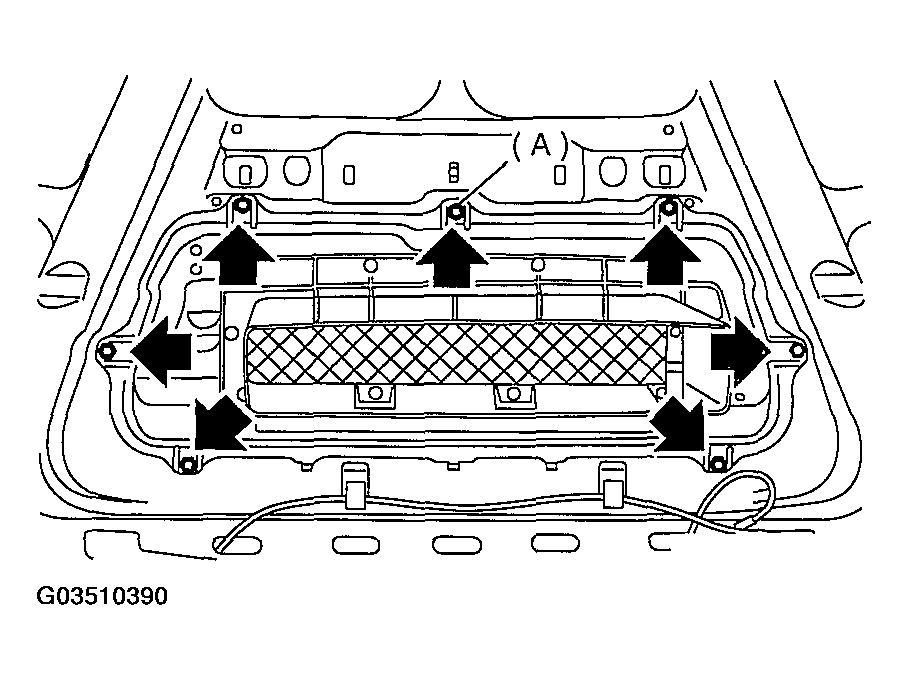

    Fig 1: Removing Six Bolts & Clip
    G03510390Courtesy of SUBARU OF AMERICA, INC.
  3. Loosen the nut (B), remove four clips (A), and then remove hood grille.

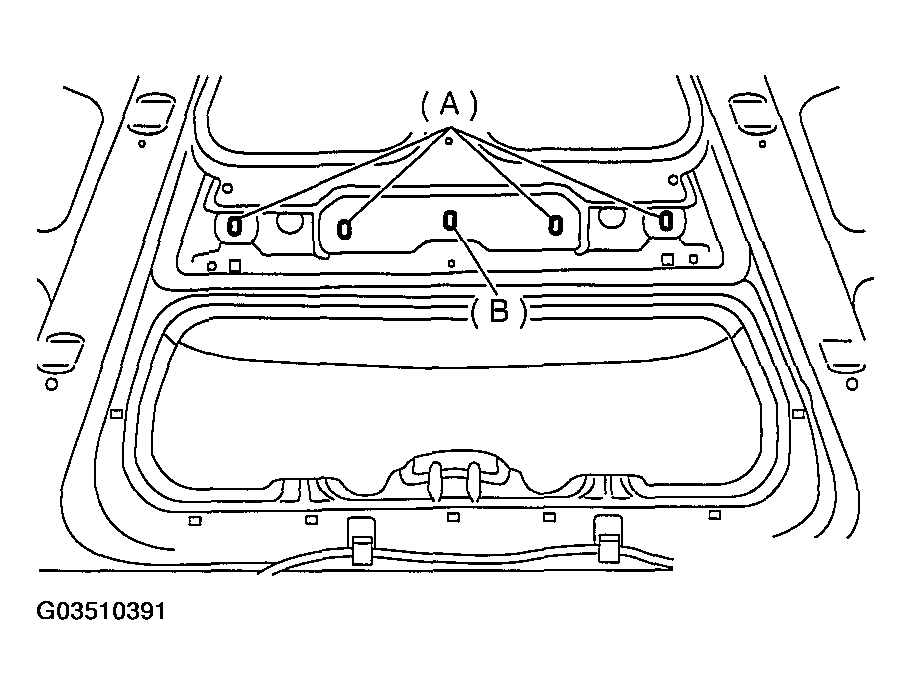

    Fig 2: Removing Four Clips
    G03510391Courtesy of SUBARU OF AMERICA, INC.
  4. Remove eleven clips to remove air duct.

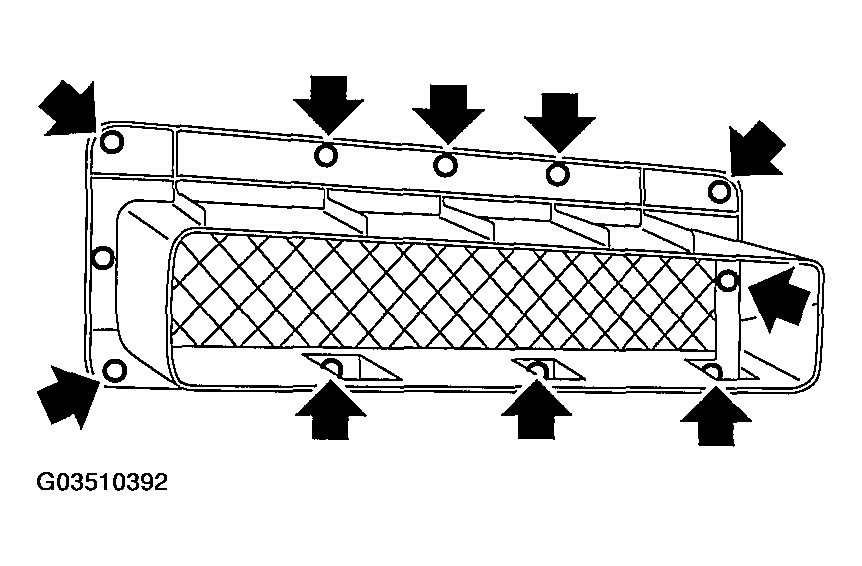

    Fig 3: Removing Eleven Clips To Removing Air Duct
    G03510392Courtesy of SUBARU OF AMERICA, INC.
