Cargo Bed Side Molding: Removal

  1. Remove cargo bed side tray. Refer to REMOVAL , Cargo Bed Side Tray.
  2. Using TORX(R) bit T25, remove bolt to remove luggage pipe lower cover.
    Fig 1: Removing Bolt
    G03510500Courtesy of SUBARU OF AMERICA, INC.
  3. Remove bolt using TORX(R) bit T25.

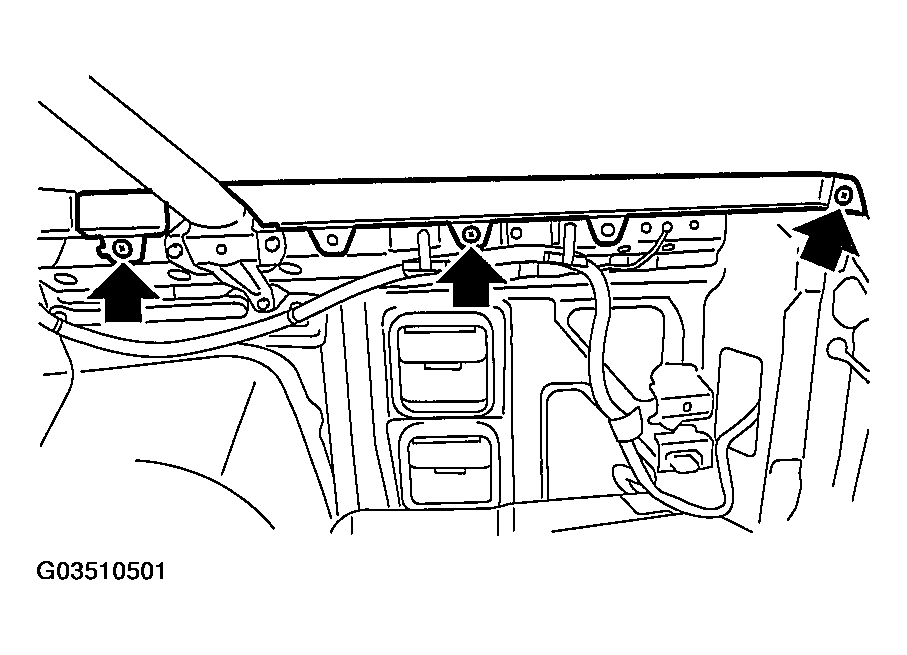

    Fig 2: Removing Bolt
    G03510501Courtesy of SUBARU OF AMERICA, INC.
  4. Remove clip and cargo bed side molding.

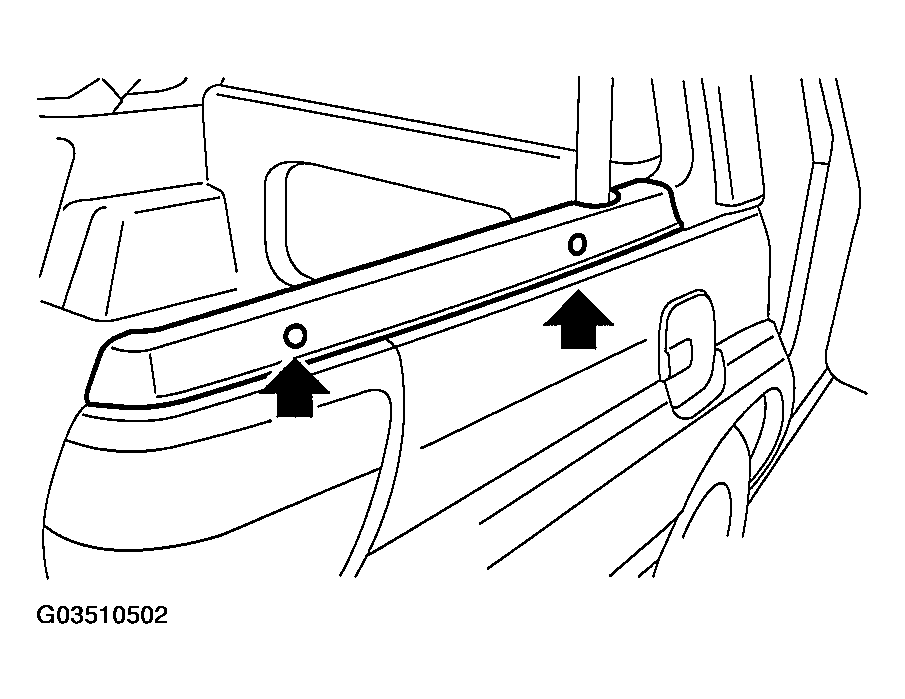

    Fig 3: Removing Clip & Cargo Bed Side Molding
    G03510502Courtesy of SUBARU OF AMERICA, INC.
