Home >> Subaru >> 2004 >> Baja Base, Standard >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Infotainment >> Entertainment >> Antenna Amplifier >> Removal >> 1. Sedan

1. Sedan

  1. Disconnect ground cable from battery.
  2. Remove rear pillar upper trim. Refer to SEDAN , REMOVAL, Rear Quarter Trim.
  3. Disconnect harness connector and terminal.
  4. Remove mounting screw and detach antenna amplifier.

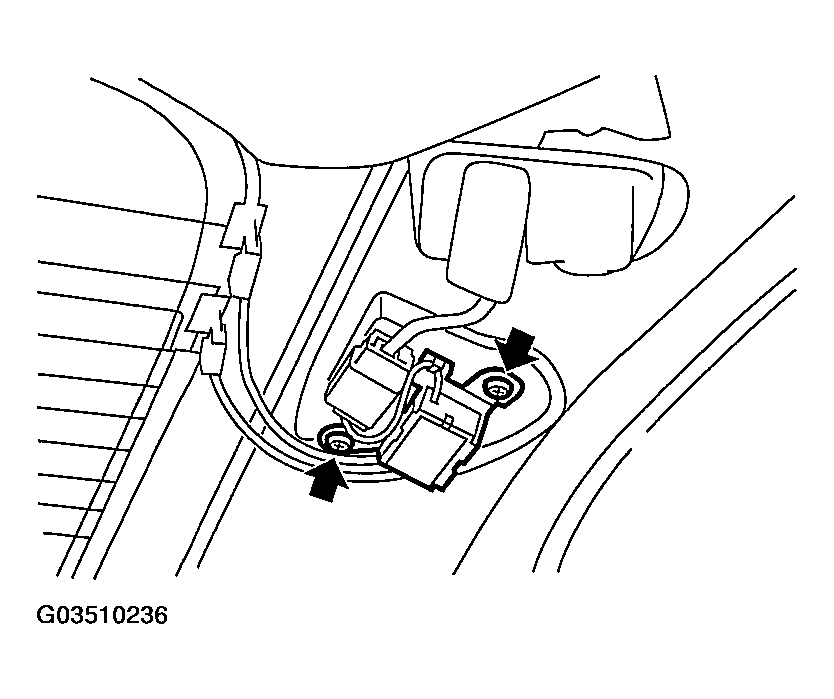

    Fig 1: Removing Mounting Screw & Detaching Antenna Amplifier
    G03510236Courtesy of SUBARU OF AMERICA, INC.
