Antenna Amplifier: Inspection: Wagon

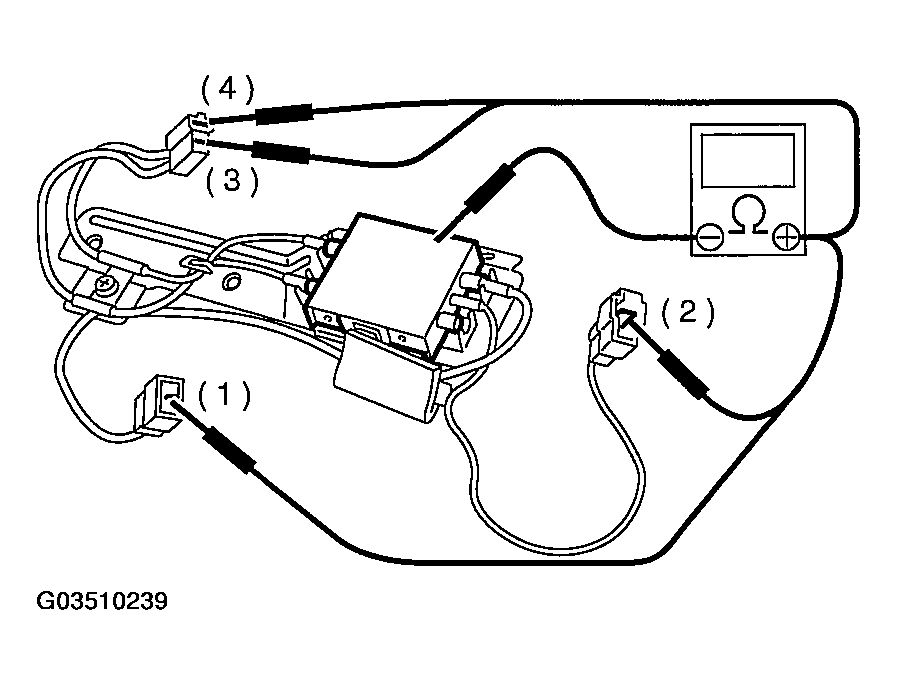

Measure antenna amplifier resistance.
Courtesy of SUBARU OF AMERICA, INC. RESISTANCE SPECIFICATION CHART
| Terminal No. |
Standard |
| 1 and Amplifier body |
More than 100 kohm |
| 2 and Amplifier body |
More than 100 kohm |
| 3 and Amplifier body |
More than 100 kohm |
| 4 and Amplifier body |
More than 100 kohm |
