Pickup vehicles (turbo AT models)

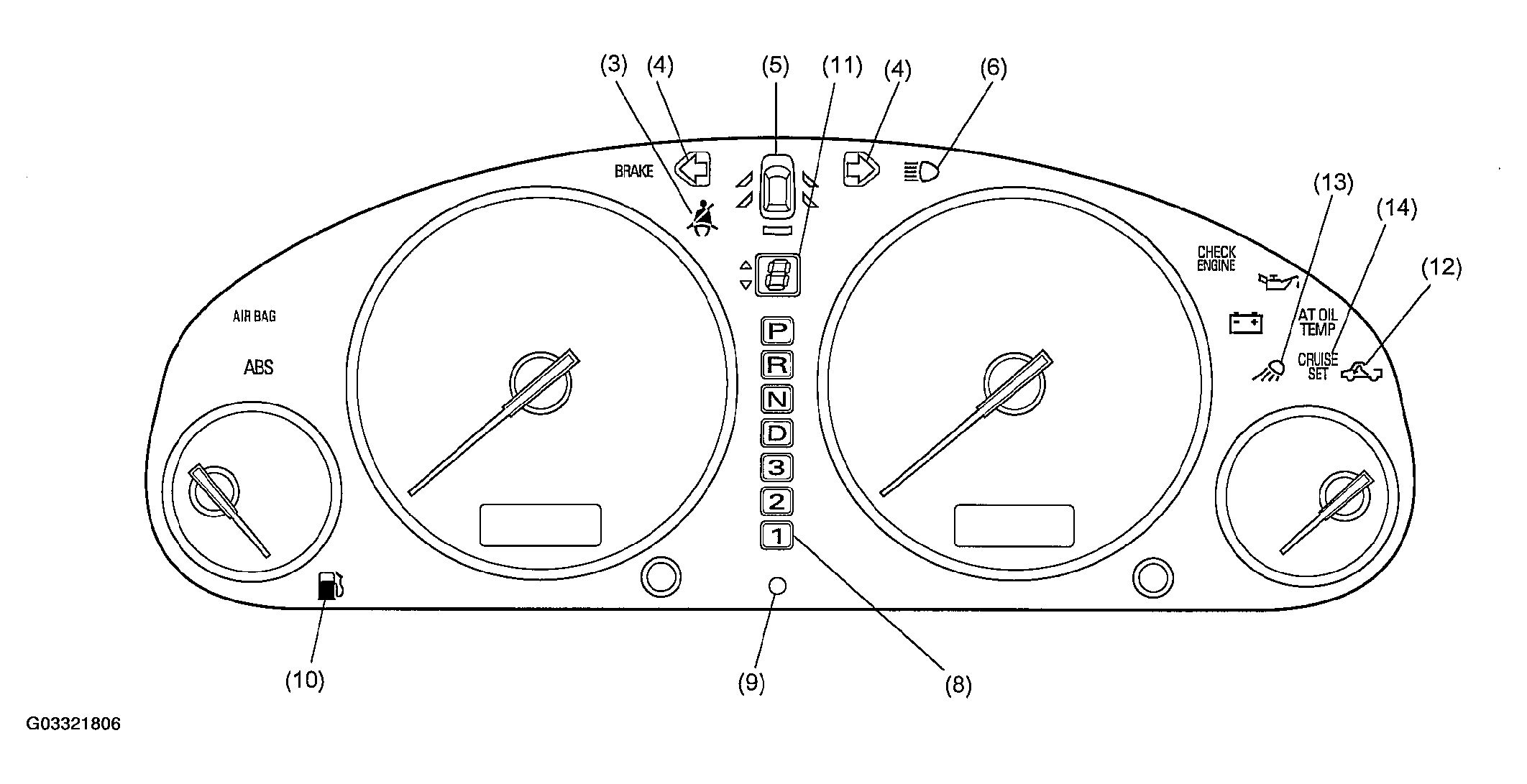

Fig 1: Identifying Pickup Vehicles (Turbo AT Models
G03321806Courtesy of SUBARU OF AMERICA, INC.
  1. VDC OFF indicator light

    This light illuminates when the VDC or TCS is deactivated.

  2. VDC operation indicator light

    This light flashes when the VDC system is operating. It also illuminates when the TCS is operating.

  3. Seat belt warning light

    This light stays illuminated for about 6 seconds after the ignition switch has been turned ON.

  4. Turn signal indicator light

    This light blinks in unison with the corresponding turn signal lights when the turn signal switch or hazard warning switch is operated.

  5. Door open warning light

    This warning light illuminates when one or more doors and/or rear gate are not completely closed.

  6. Headlight beam indicator light

    This light illuminates when the headlights are in the high-beam position.

  7. FWD indicator light

    This indicator illuminates when the drive mode is changed from AWD to FWD (with the fuse installed in the FWD switch).

  8. AT selector lever position indicator

    The light corresponding to the present AT select lever position illuminates when the ignition switch is in any position other than ACC and LOCK.

  9. Security indicator light

    This light illuminates when the security system is armed.

  10. Low fuel warning light

    This light illuminates when the quantity of the fuel remaining in the tank has decreased to 10 "ELL" (2.6 US gal, 2.2 Imp gal) or less.

  11. Sports shift indicator

    This indicator indicates the current gear position when the AT selector lever is moved from the automatic mode (D range) to the sports shift mode and causes the D range light to turn off.

  12. Switch back gate indicator light

    This light illuminates when the switch back gate is opened while the ignition switch is in the ON position. Also, this light blinks for 20 seconds and then turns off when the switch back gate is opened while the ignition switch is in the OFF position.

  13. Cargo light indicator light

    This light illuminates when the cargo light switch is turned ON.

  14. CRUISE SET indicator

    This indicator illuminates when the cruise control main switch is turned ON and the SET/COAST switch on the command switch is turned ON.

When everything is normal, the telltales should be ON, OFF or in other states as shown below according to ignition switch position.

Identifying Warning/Indicator light

Telltale light Ignition switch position
LOCK/ACC ON ST While engine is running
(1) VDCOFF OFF ON ON (1)
(2) VDC operation OFF (2) ON OFF
(3) Seat belt OFF (3) (3) (3)
(4) Turn signal (4) Blink Blink Blink
(5) Door or rear gate open "BULLET" Open ON ON ON ON
"BULLET" Closed OFF OFF OFF OFF
(6) Headlight beam "BULLET" High beam OFF ON ON ON
"BULLET" Low beam OFF OFF OFF OFF
(7) FWD "BULLET" FWD OFF ON ON ON
"BULLET" AWD OFF OFF OFF OFF
(8) AT selector lever position OFF ON ON ON
(9) Security (5) OFF OFF OFF
(10) Low fuel level OFF (6) (6) (6)
(11) Sports shift indicator OFF OFF OFF (7)
(12) Switch back gate (8) (8) (8) (8)
(13) Cargo light (9) (9) (9) (9)
(1) This light stays ON for about 4 seconds, and then goes out.
(2) This light stays ON for about 2 seconds, and then goes out.
(3) This light stays illuminated for about 6 seconds after the ignition switch has been turned ON.
(4) This light blinks when the hazard warning switch is turned ON.
(5) This light illuminates when the security system is armed.
(6) This light illuminates when the quantity of the fuel remaining in the tank has decreased to 10 G (2.6 US gal, 2.2 Imp gal) or less.
(7) This light indicates the current gear position when the AT selector lever is moved from the D range to the sport shift mode.
(8) This light illuminates when the switch back gate is opened while the ignition switch is ON, and blinks for 20 second and then goes OFF when the switch back gate opened while the ignition switch is OFF.
(9) This light illuminates when the cargo light switch is turned ON.
