Fuel Gauge: Operation
The low fuel warning light operates as follows:

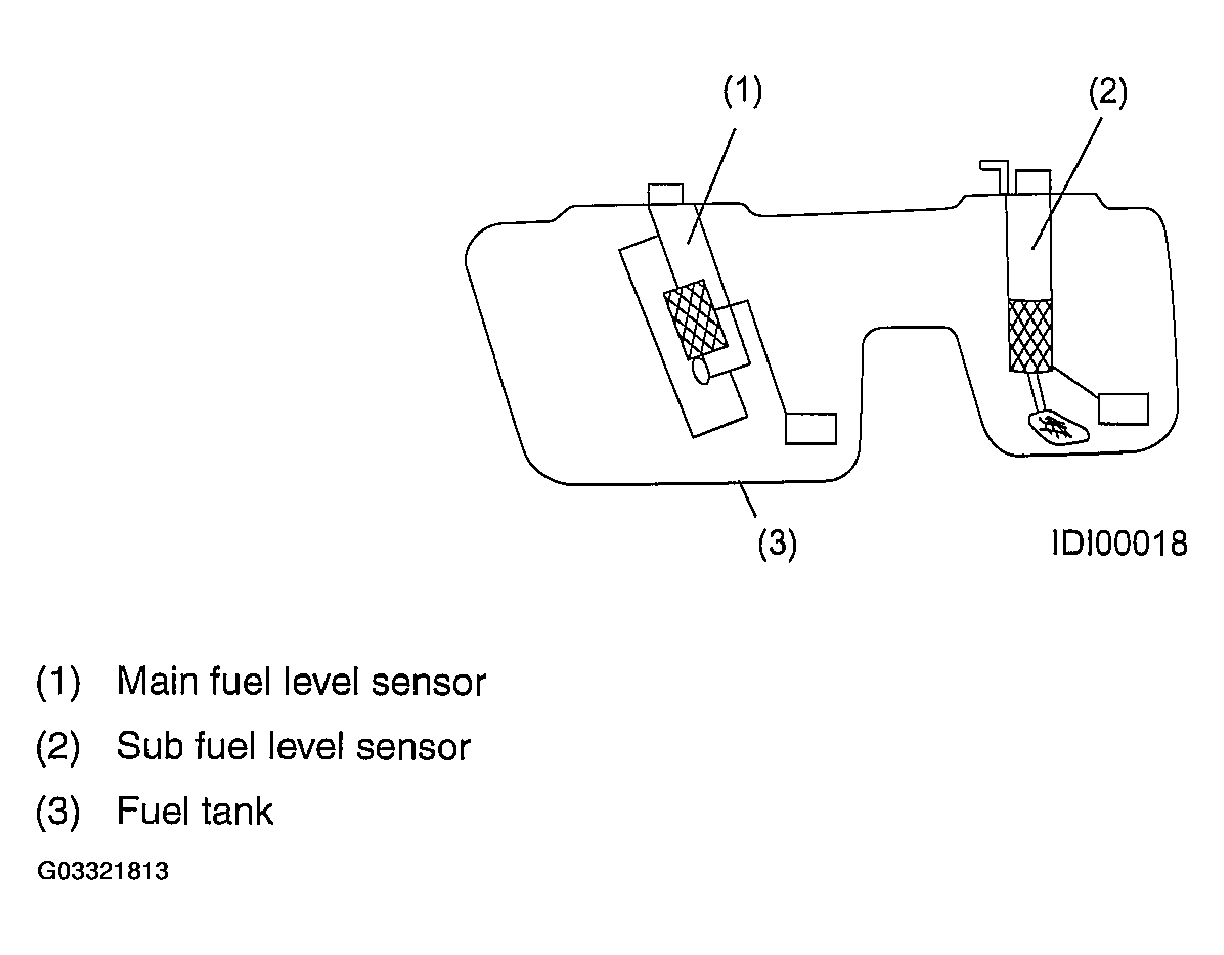

The combination meter CPU continually monitors the resistance signal from the fuel level sensor. It turns on the low fuel warning light in the combination meter if a resistance value corresponding to the critical fuel level (approx. 76 ohm) is detected successively for about 10 minutes or the period spent for driving a distance of 10 km.
This monitoring time has been decided to avoid false operation of the warning light which may happen when a large part of remaining fuel is collected temporarily in the sub tank compartment.
