Pickup (Finisher Light)

  1. Remove tail gate tray. Refer to REMOVAL , Tail Gate Tray.
  2. Remove tail gate cover.

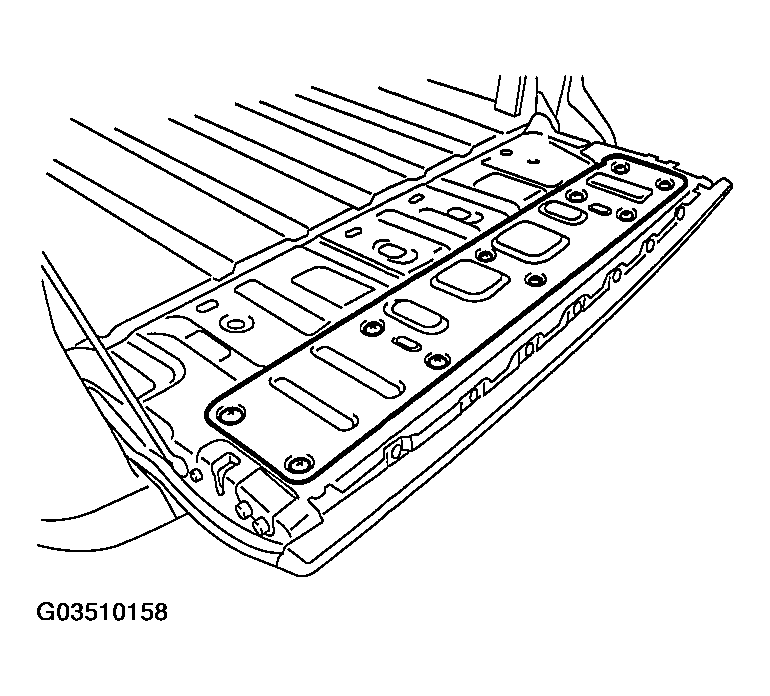

    Fig 1: Removing Tail Gate Cover
    G03510158Courtesy of SUBARU OF AMERICA, INC.
  3. Rotate the socket and remove the bulb.

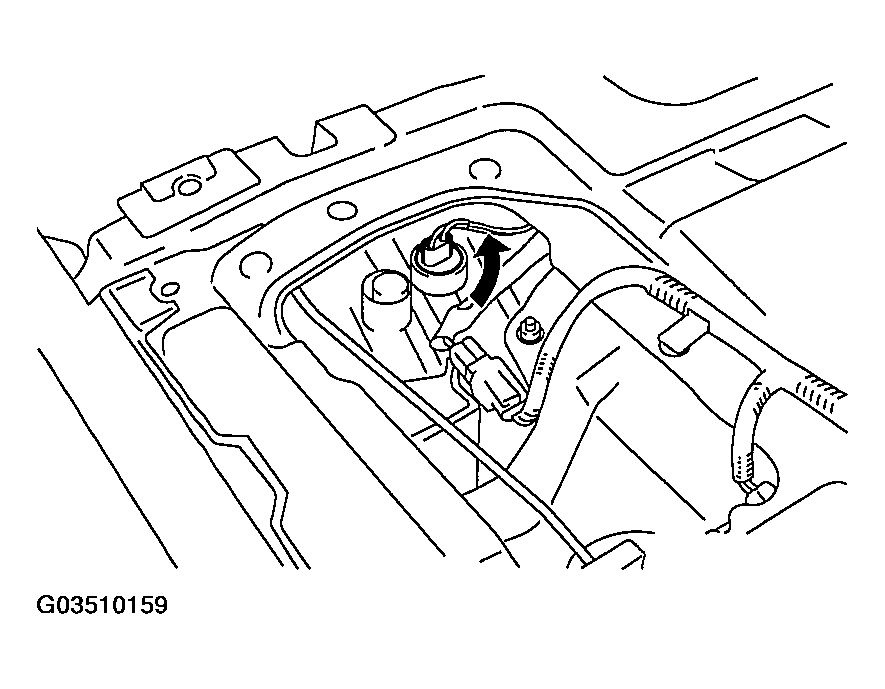

    Fig 2: Rotating Socket To Remove Bulb
    G03510159Courtesy of SUBARU OF AMERICA, INC.
