Water Temperature Gauge: Inspection

Measure water temperature gauge resistance.

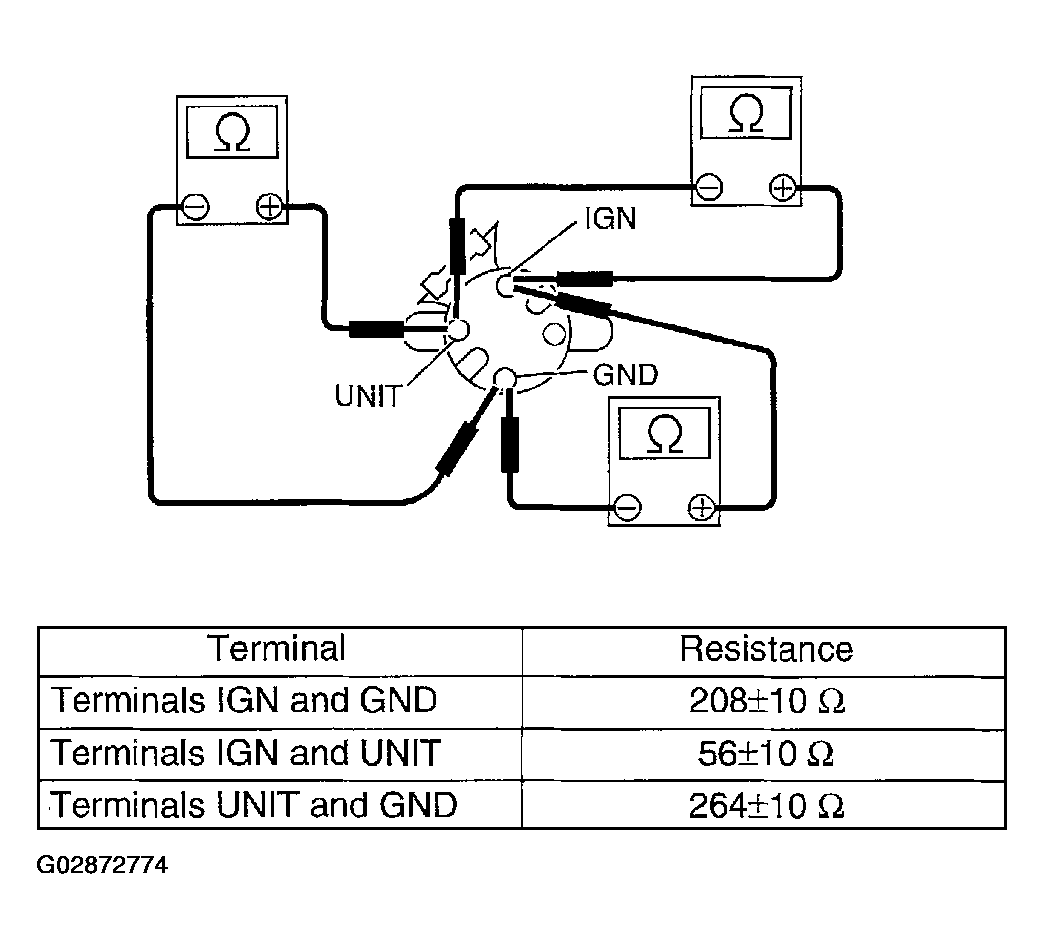

Fig 1: Measuring Water Temperature Gauge Resistance

Courtesy of SUBARU OF AMERICA, INC.

If NG, replace tachometer and water temperature gauge assembly.

If OK, replace combination meter printed circuit.
