Fuel Gauge: Inspection

Measure fuel gauge resistance.

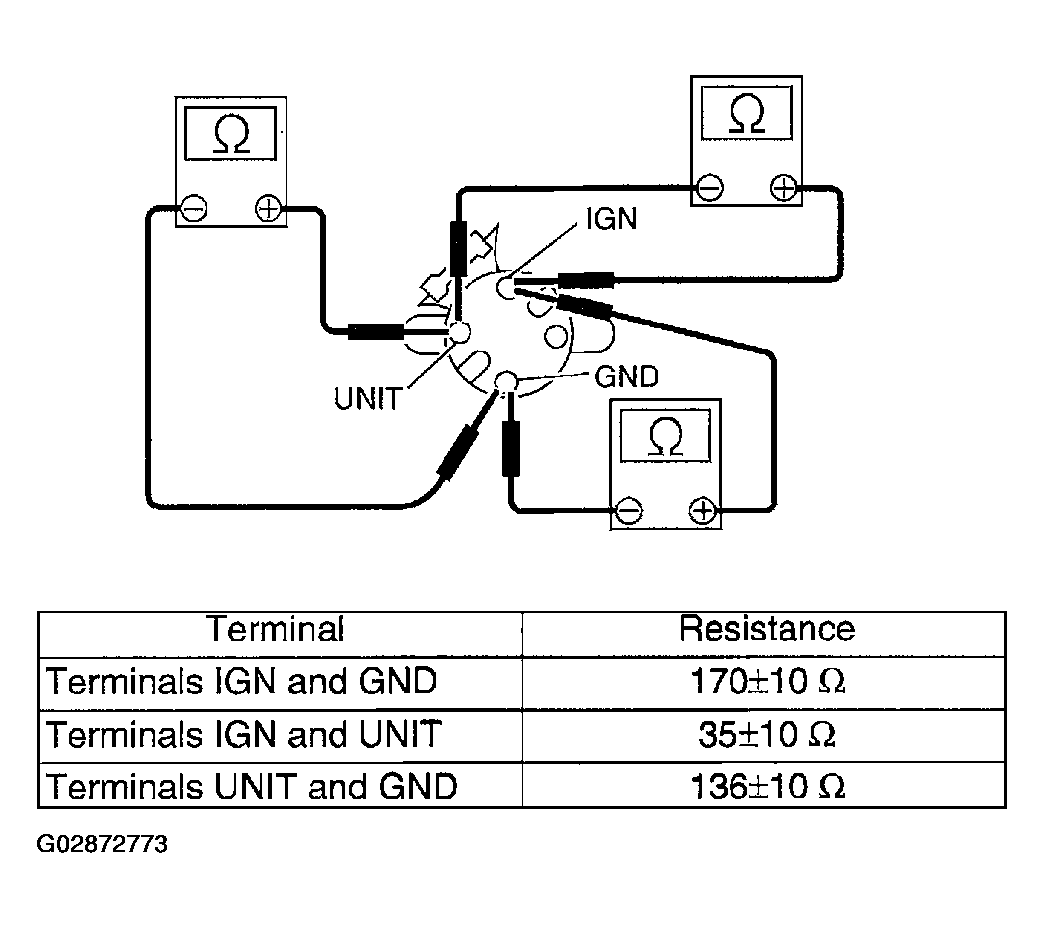

Fig 1: Measuring Fuel Gauge Resistance

Courtesy of SUBARU OF AMERICA, INC.

If NG, replace speedometer and fuel gauge assembly.

If OK, replace combination meter printed circuit.
