Removal & Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

For removal and installation procedures, see Fig 1.

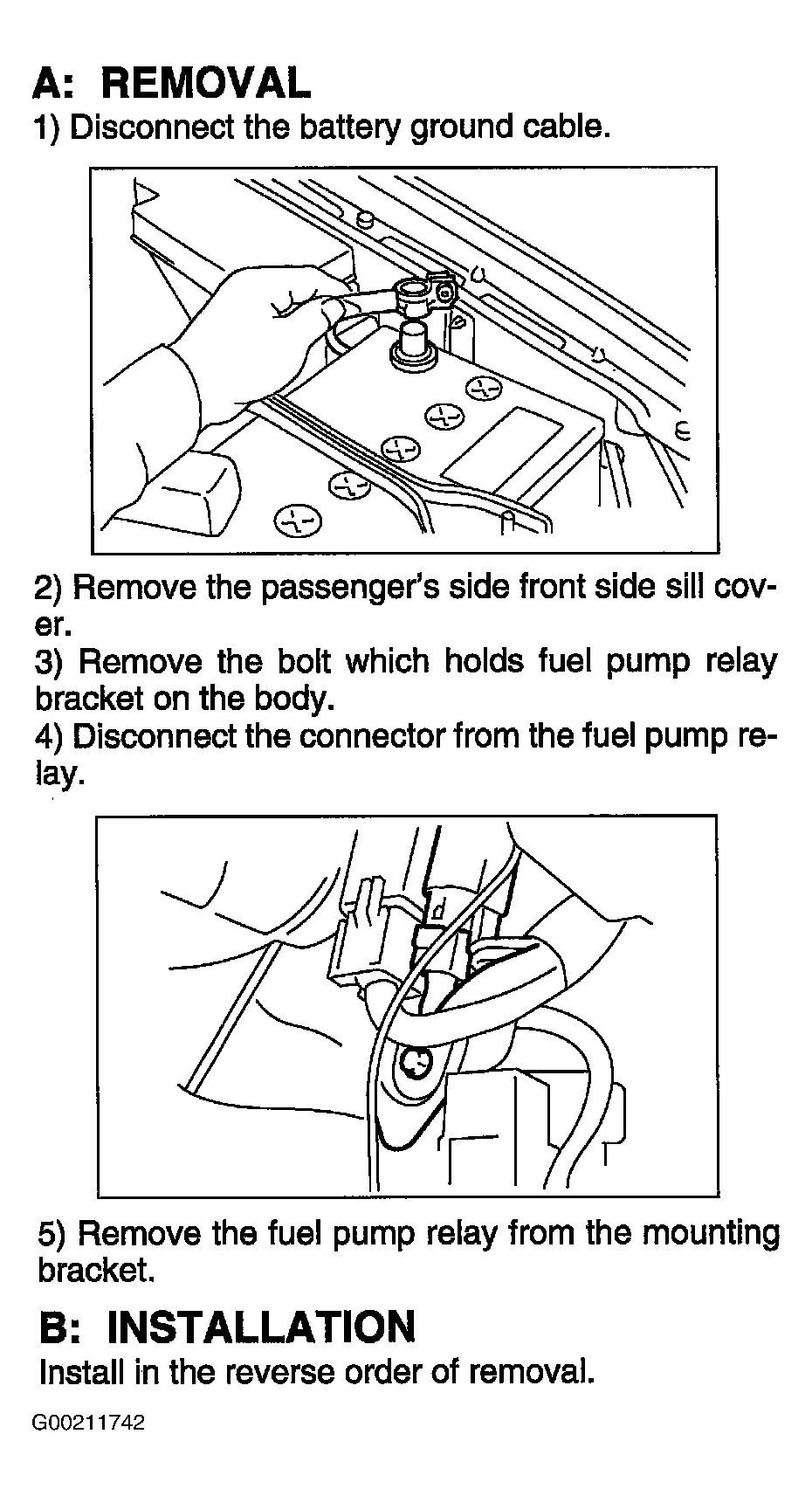

Fig 1: Fuel Pump Relay Removal & Installation (Impreza & Outback Sport)

Courtesy of SUBARU OF AMERICA, INC.
