Removal & Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

For removal and installation procedures, see Fig 1-Fig 3 . Tighten fasteners to specification. See TORQUE SPECIFICATIONS .

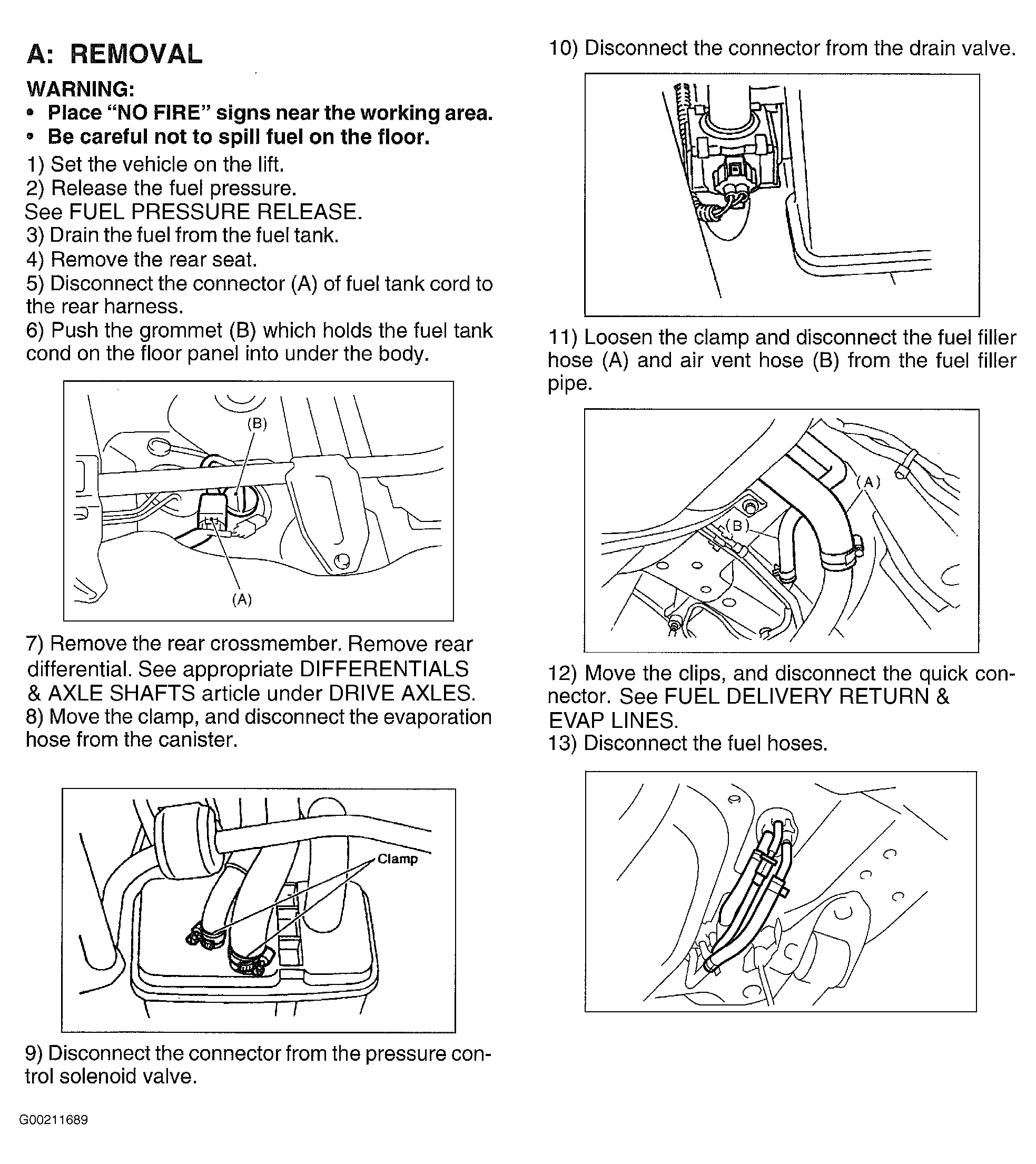

Fig 1: Fuel Tank Removal & Installation (Impreza & Outback Sport - 1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

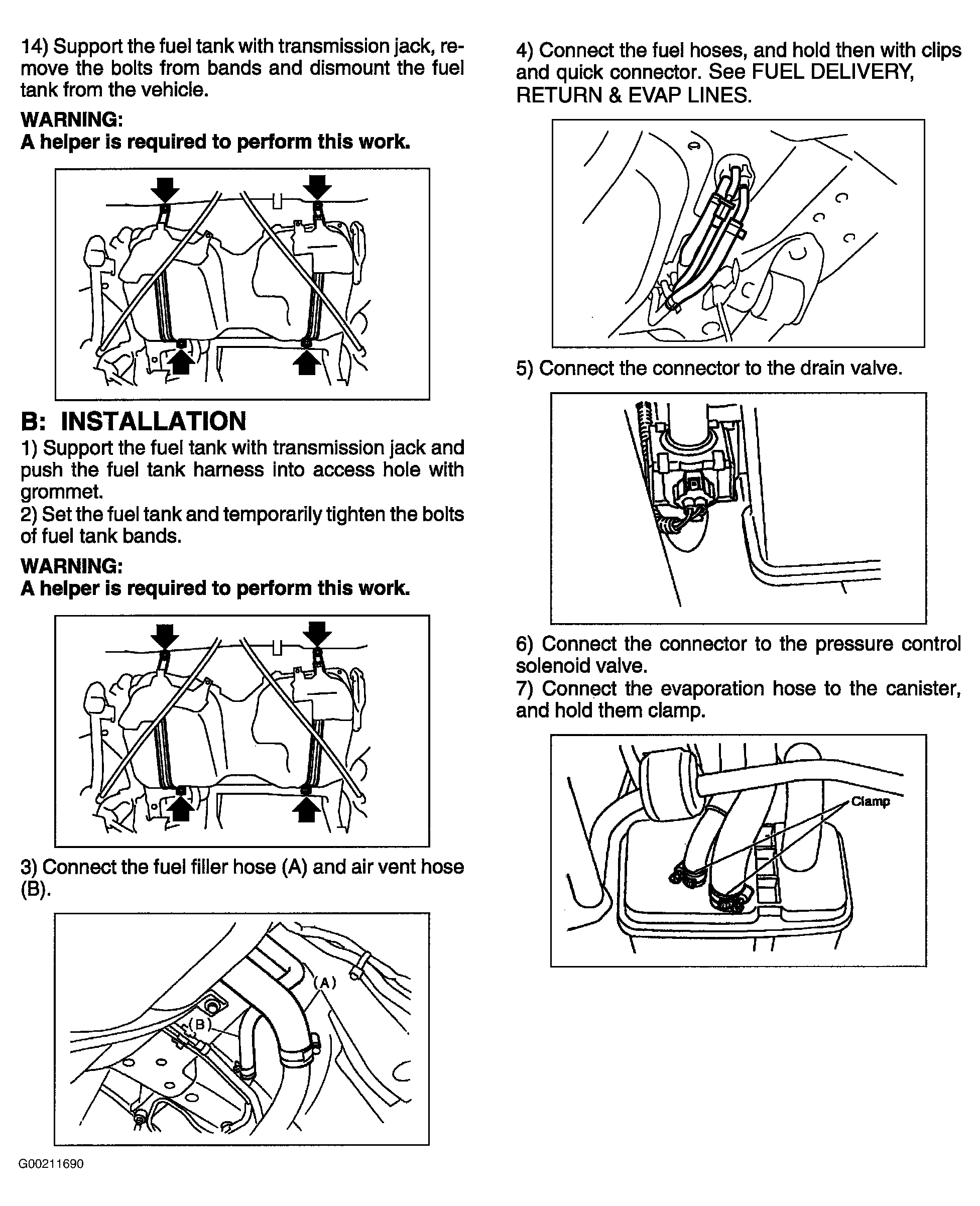

Fig 2: Fuel Tank Removal & Installation (Impreza & Outback Sport - 2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

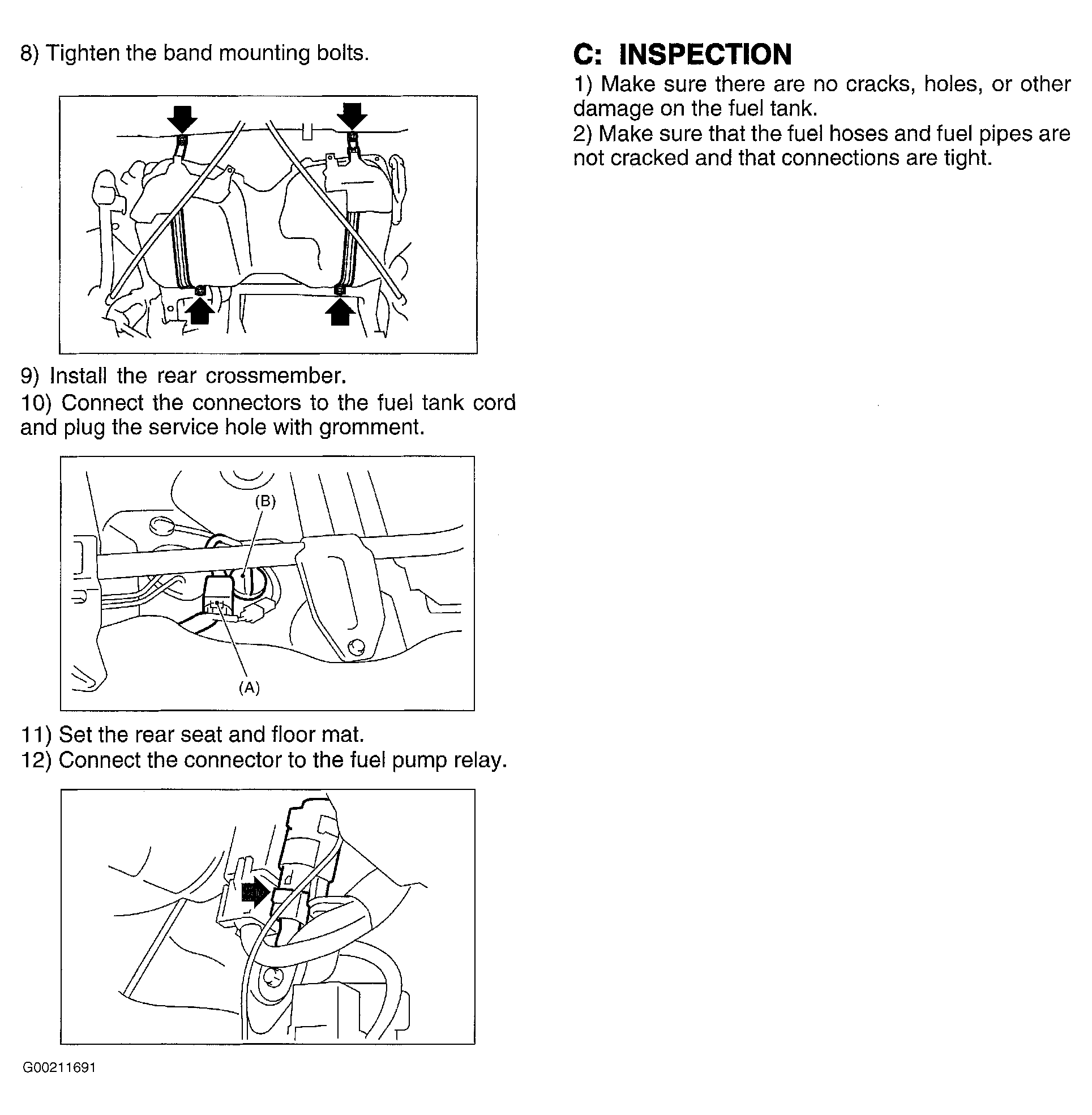

Fig 3: Fuel Tank Removal & Installation (Impreza & Outback Sport - 3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
