Removal & Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

For removal and installation procedures, see Fig 1-Fig 5 . Tighten fasteners to specification. See TORQUE SPECIFICATIONS .

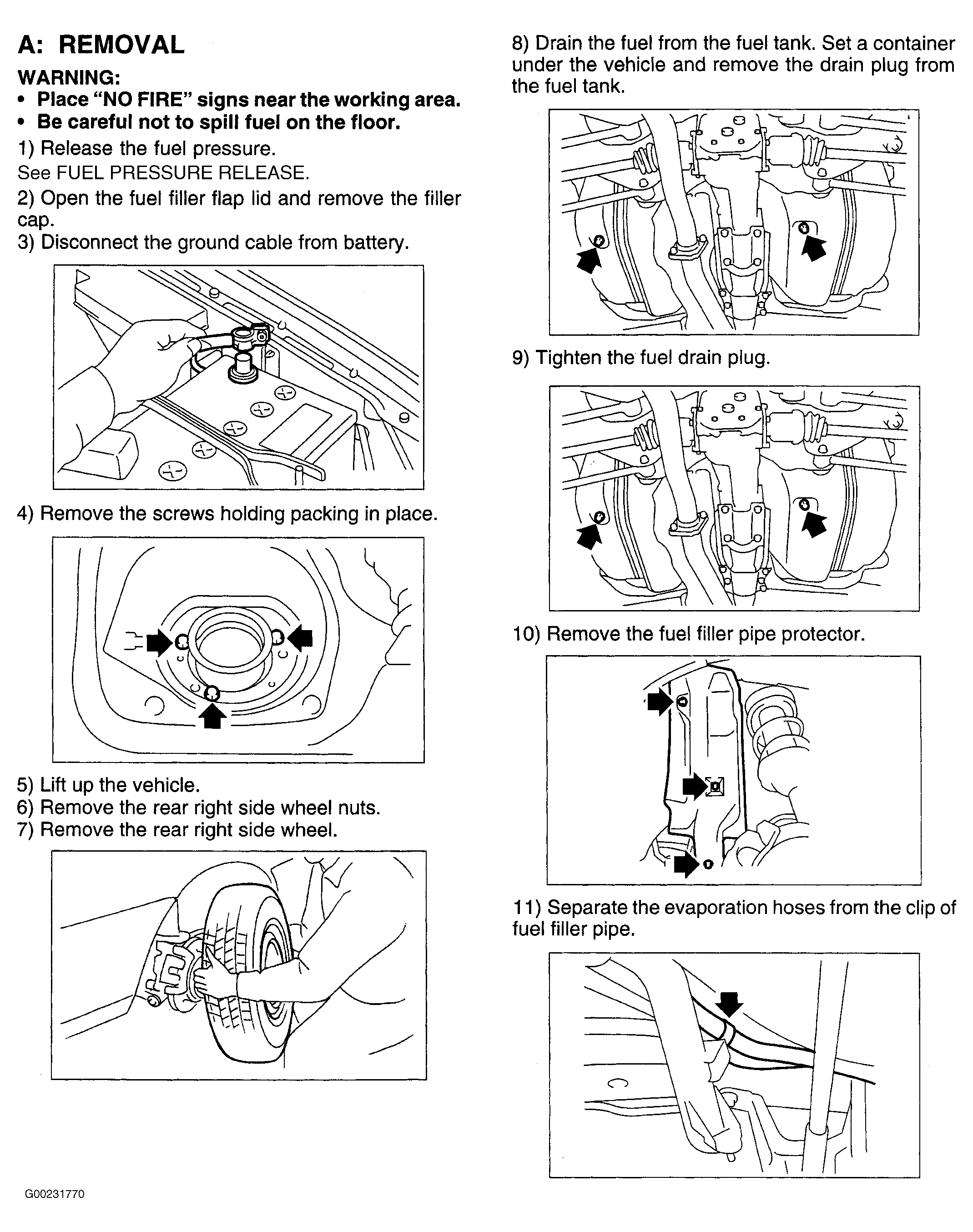

Fig 1: Fuel Filler Pipe Removal & Installation (Impreza & Outback Sport - 1 Of 5)

G00231770

Courtesy of SUBARU OF AMERICA, INC.

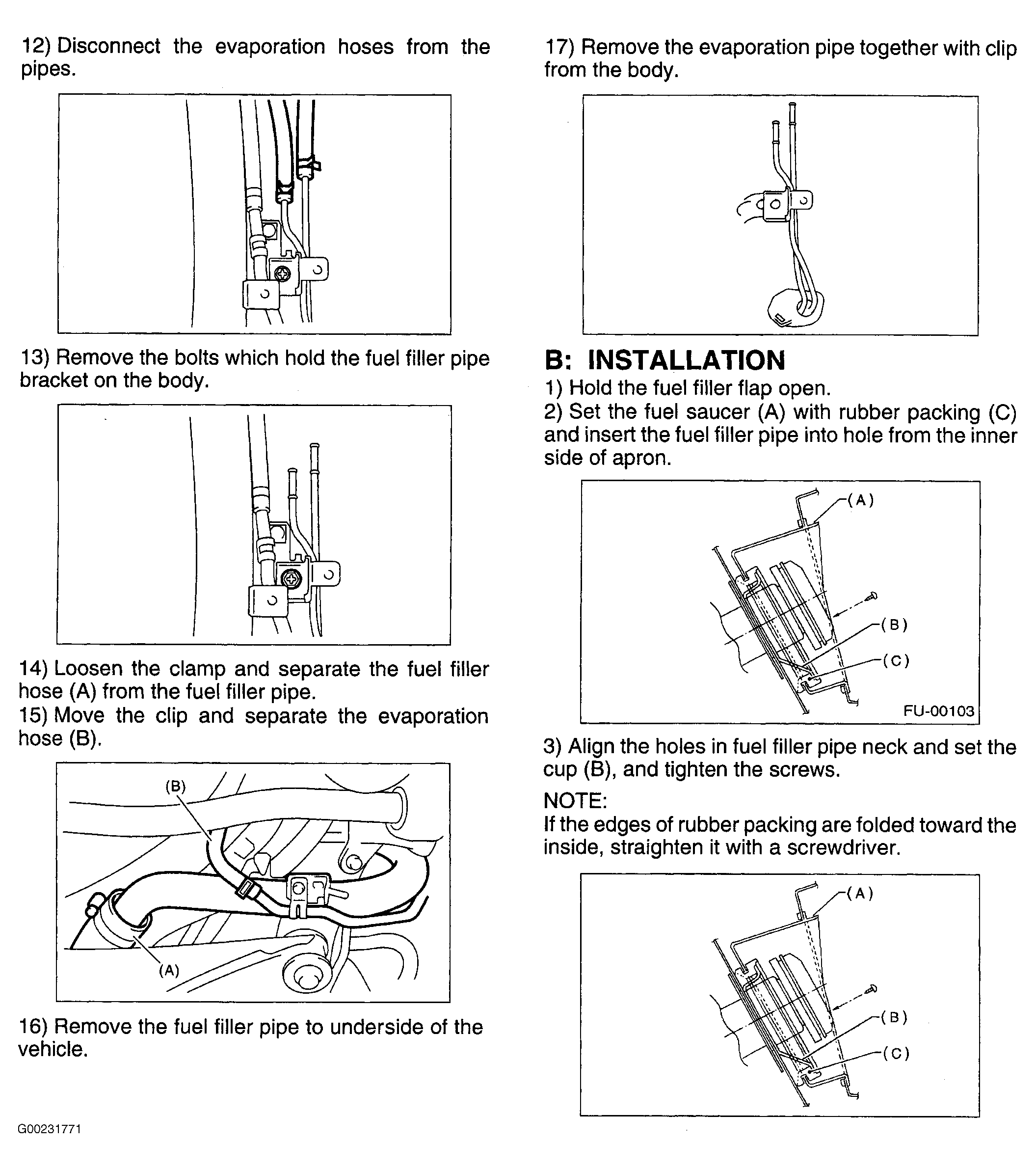

Fig 2: Fuel Filler Pipe Removal & Installation (Impreza & Outback Sport - 2 Of 5)

G00231771

Courtesy of SUBARU OF AMERICA, INC.

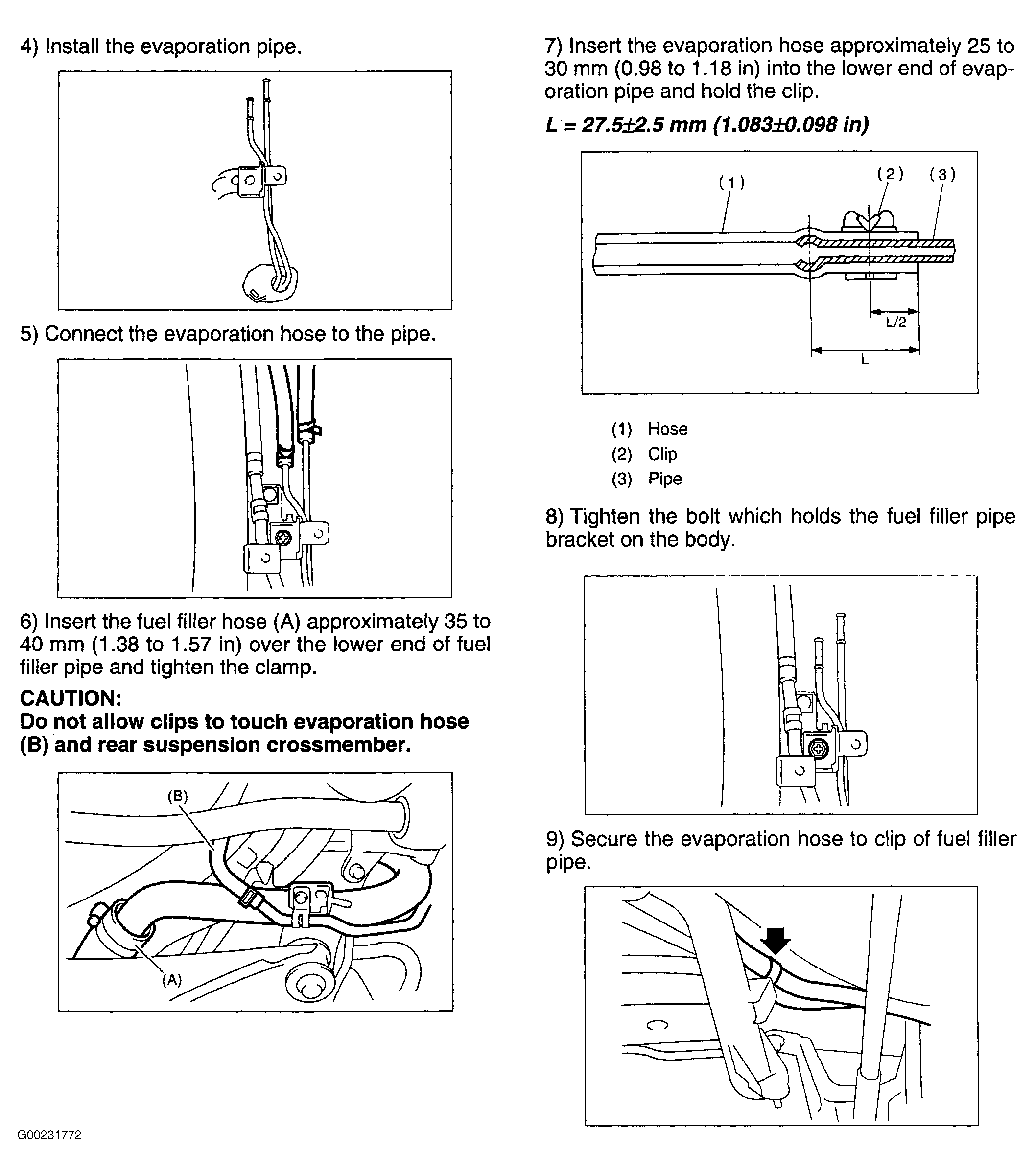

Fig 3: Fuel Filler Pipe Removal & Installation (Impreza & Outback Sport - 3 Of 5)

G00231772

Courtesy of SUBARU OF AMERICA, INC.

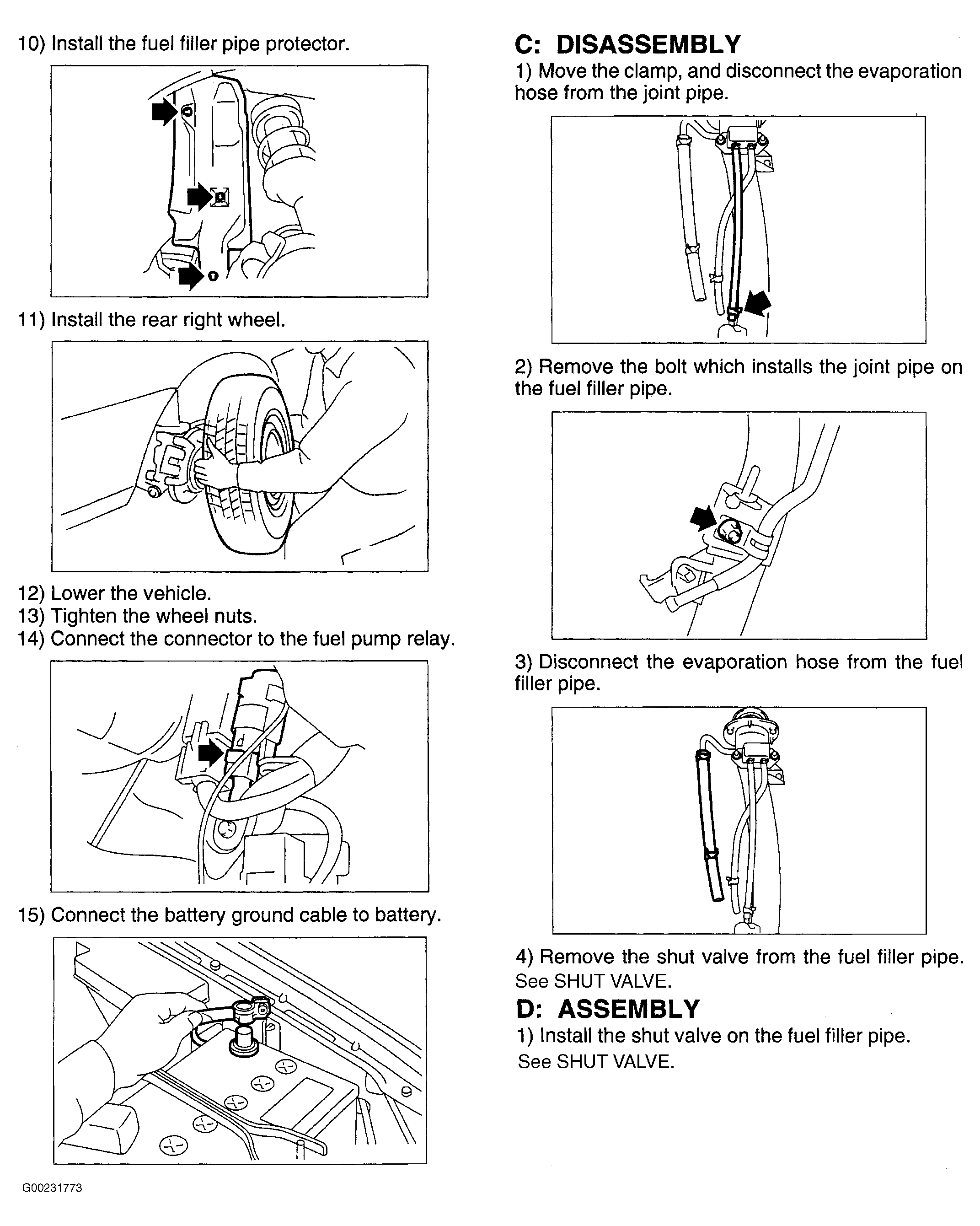

Fig 4: Fuel Filler Pipe Removal & Installation (Impreza & Outback Sport - 4 Of 5)

G00231773

Courtesy of SUBARU OF AMERICA, INC.

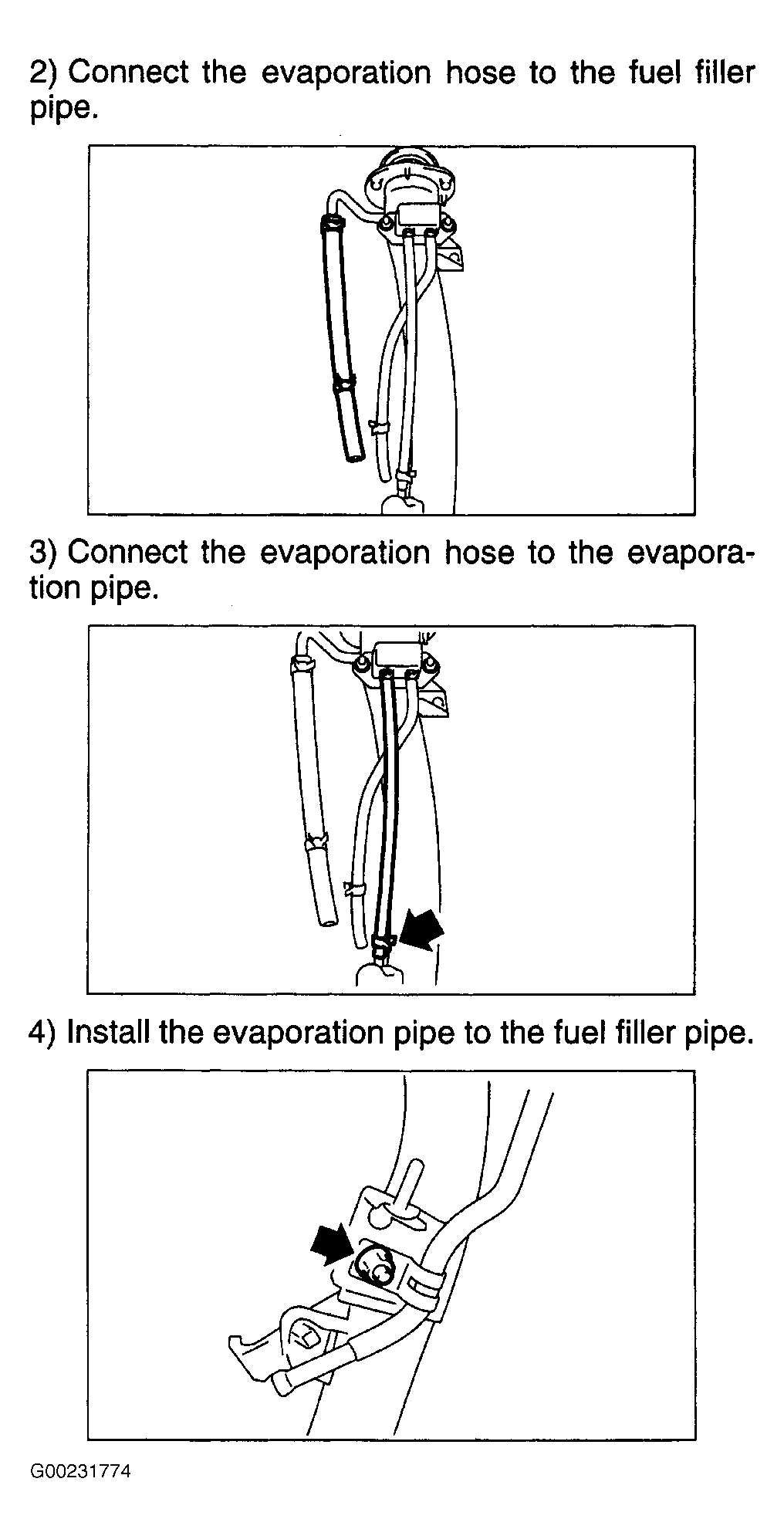

Fig 5: Fuel Filler Pipe Removal & Installation (Impreza & Outback Sport - 5 Of 5)

G00231774

Courtesy of SUBARU OF AMERICA, INC.
