Removal & Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

For removal and installation procedures, see Fig 1. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .

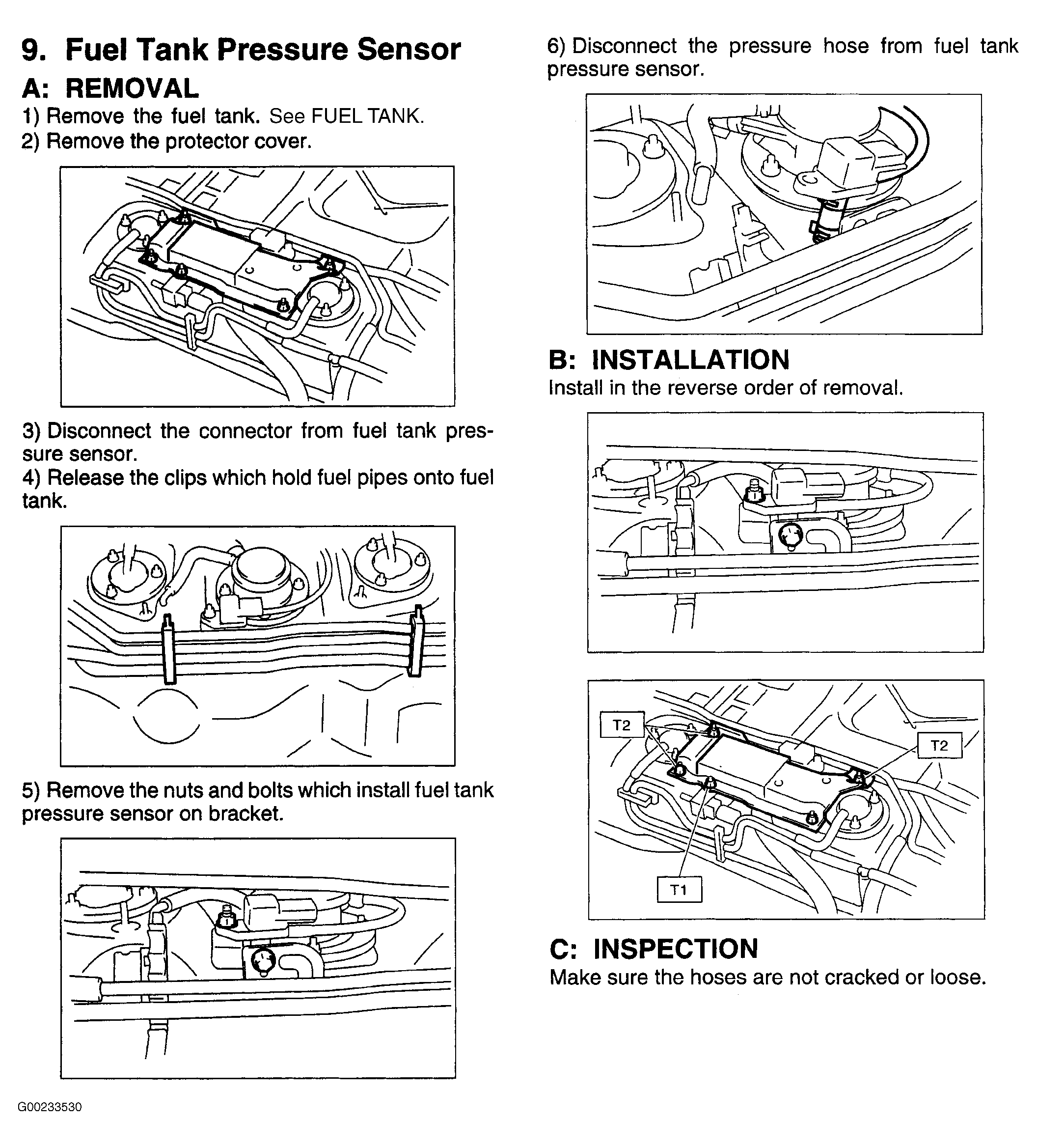

Fig 1: Fuel Tank Pressure Sensor Removal & Installation (Impreza & Outback Sport)

Courtesy of SUBARU OF AMERICA, INC.
