WASTEGATE Control Solenoid Valve: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.

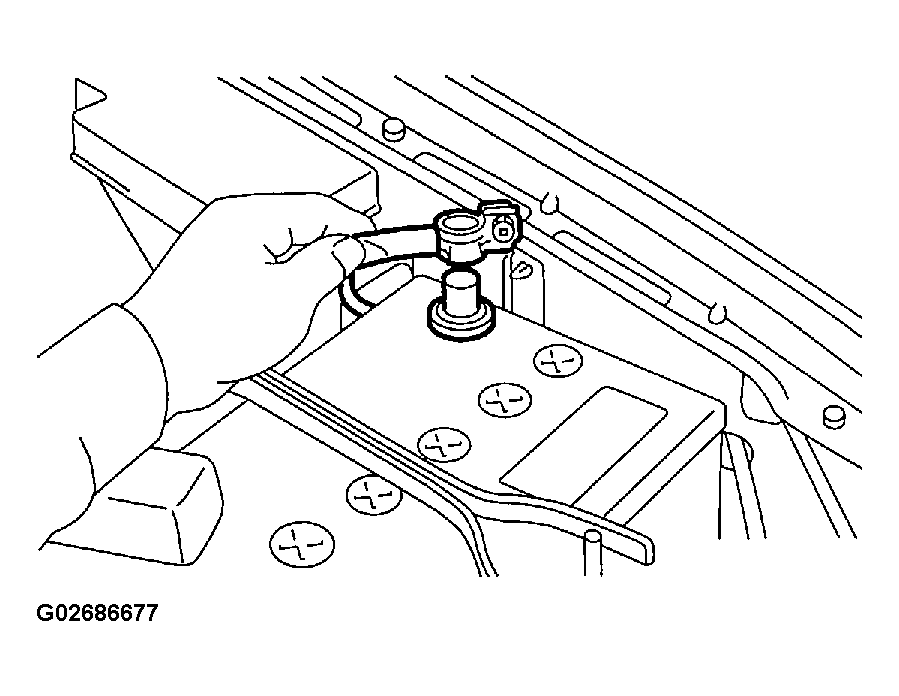

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the solenoid valve cover.

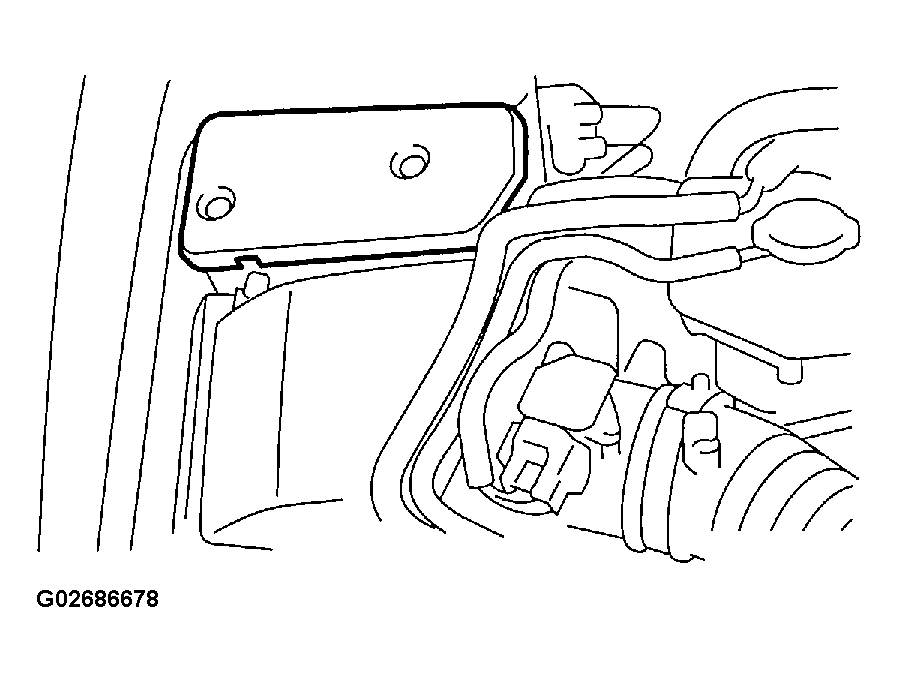

Fig 2: Removing Solenoid Valve Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) from the wastegate control solenoid valve.
Disconnect the pressure hoses (B) from the wastegate control solenoid valve.

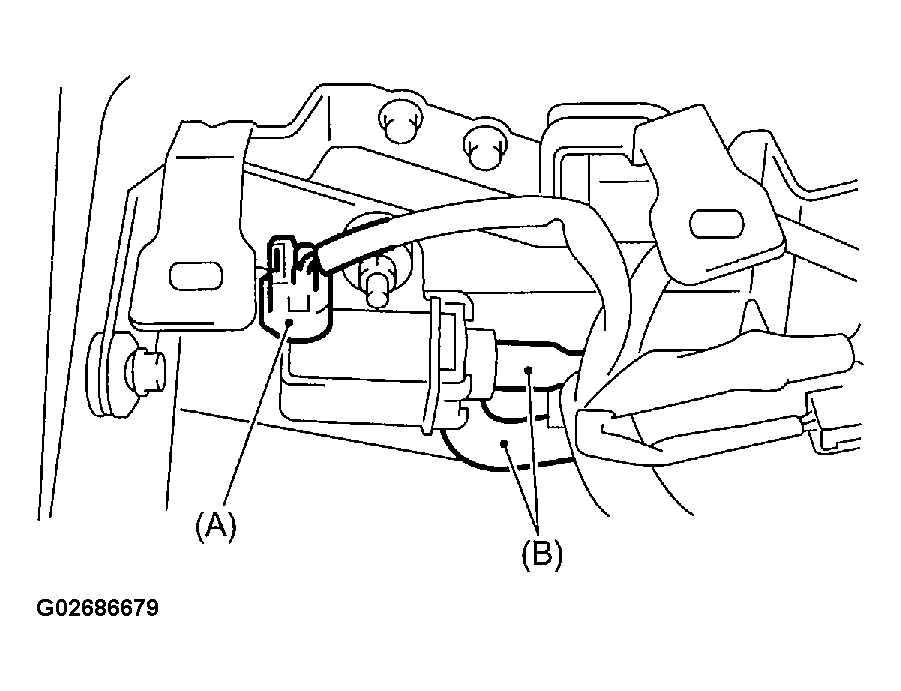

Fig 3: Disconnecting Connector (A) And Pressure Hoses (B) From Wastegate Control Solenoid Valve
Courtesy of SUBARU OF AMERICA, INC.
Remove the wastegate control solenoid valve from the bracket

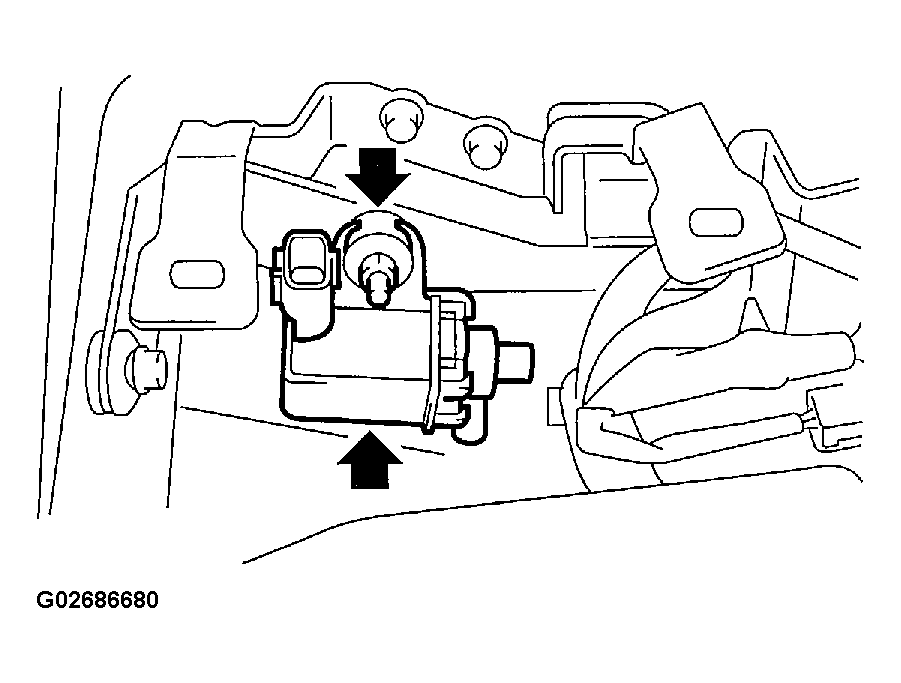

Fig 4: Removing Wastegate Control Solenoid Valve
Courtesy of SUBARU OF AMERICA, INC.
