WASTEGATE Control Solenoid Valve: Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

Tightening torque: 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

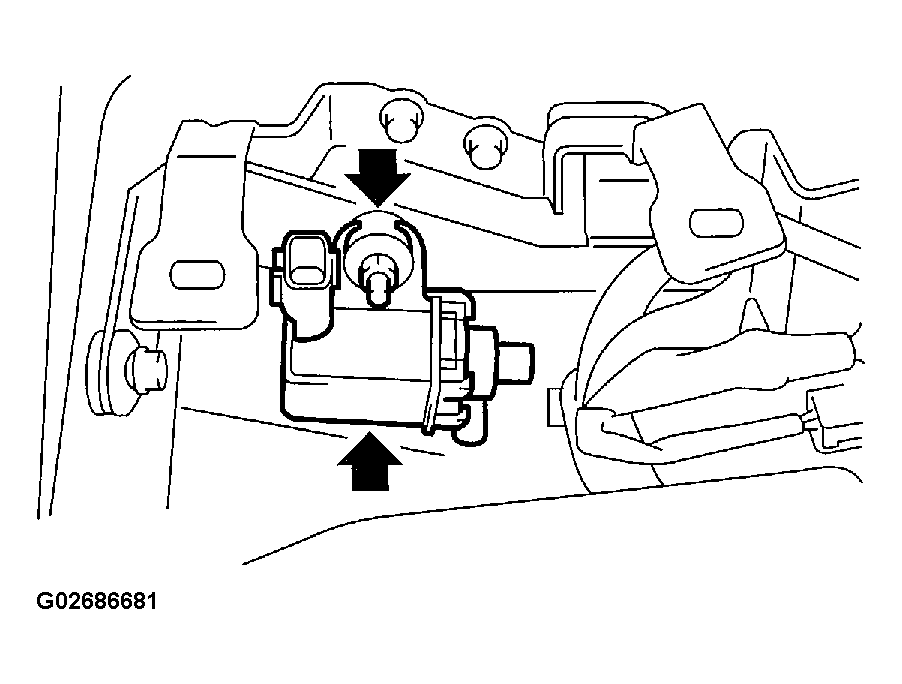

Fig 1: Installing Wastegate Control Solenoid Valve To Bracket

Courtesy of SUBARU OF AMERICA, INC.
