Tumble Generator Valve Assembly: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.

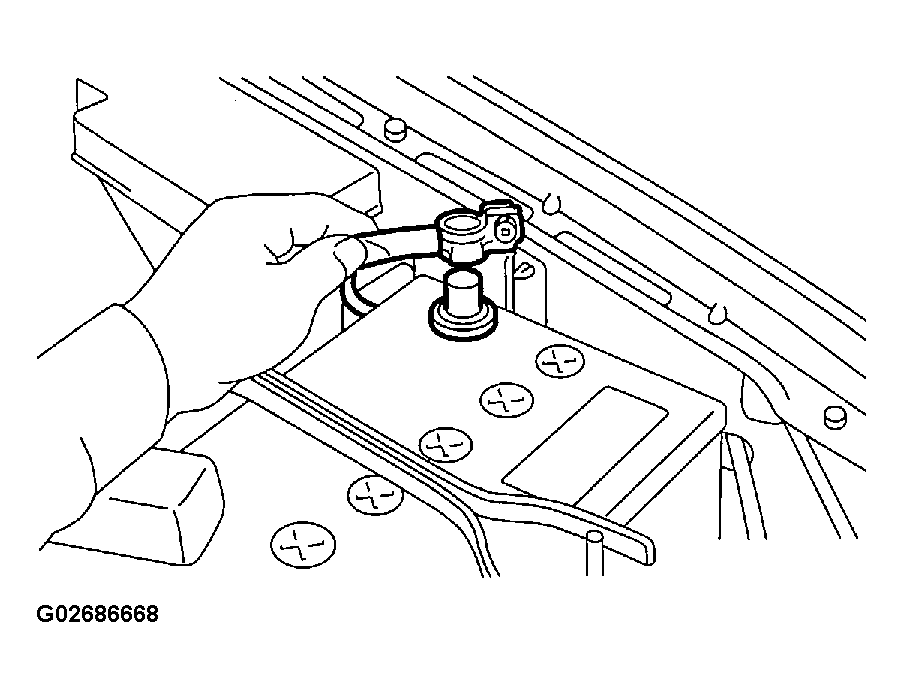

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake manifold, see REMOVAL & INSTALLATION (IMPREZA WRX 2.0L) , Intake Manifold.
Disconnect the connector from the tumble generator valve sensor.

Fig 2: Disconnecting Connector From Tumble Generator Valve Sensor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the tumble generator valve actuator.

Fig 3: Disconnecting Connector From Tumble Generator Valve Actuator
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector. See REMOVAL & INSTALLATION (IMPREZA WRX 2.0L) , Fuel Injector.
Remove the tumble generator valve body from the intake manifold.

Fig 4: Removing Tumble Generator Valve Body From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
