Removal & Installation
WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

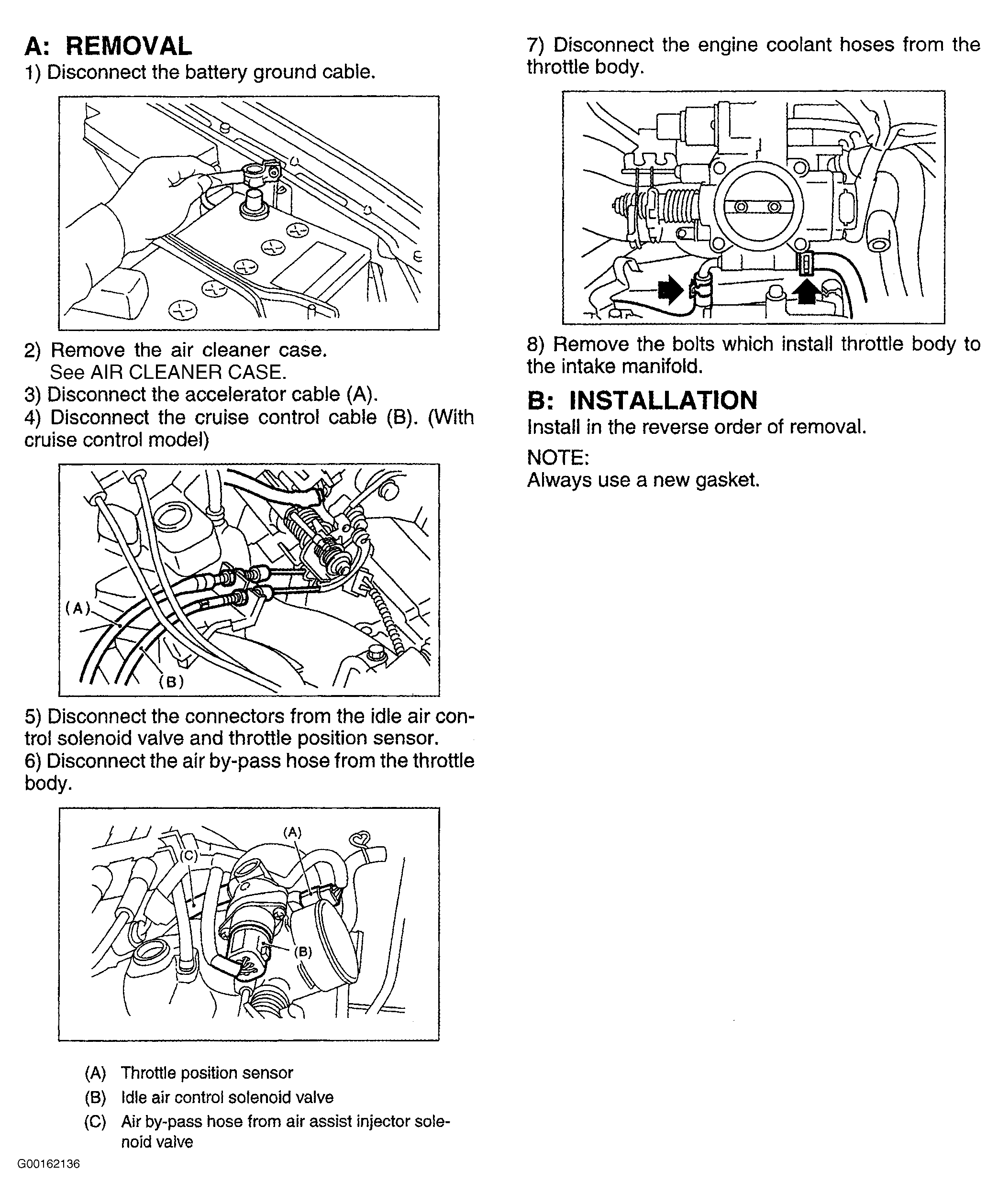

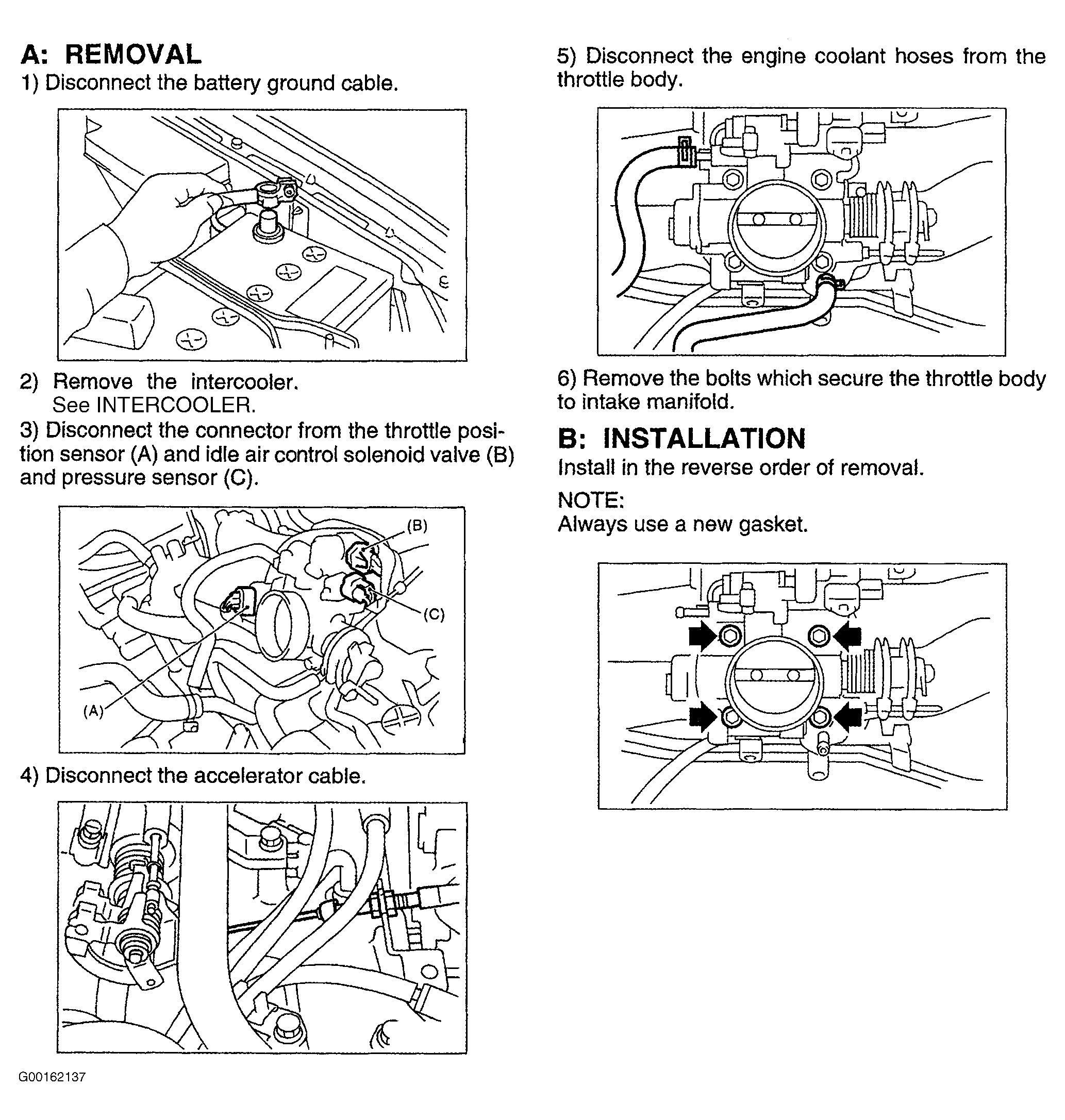

For removal and installation procedures, see Fig 1 or Fig 2 . Tighten fasteners to specification. See TORQUE SPECIFICATIONS .
