Removal & Installation

WARNING: This page is about a different car, the 2002 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

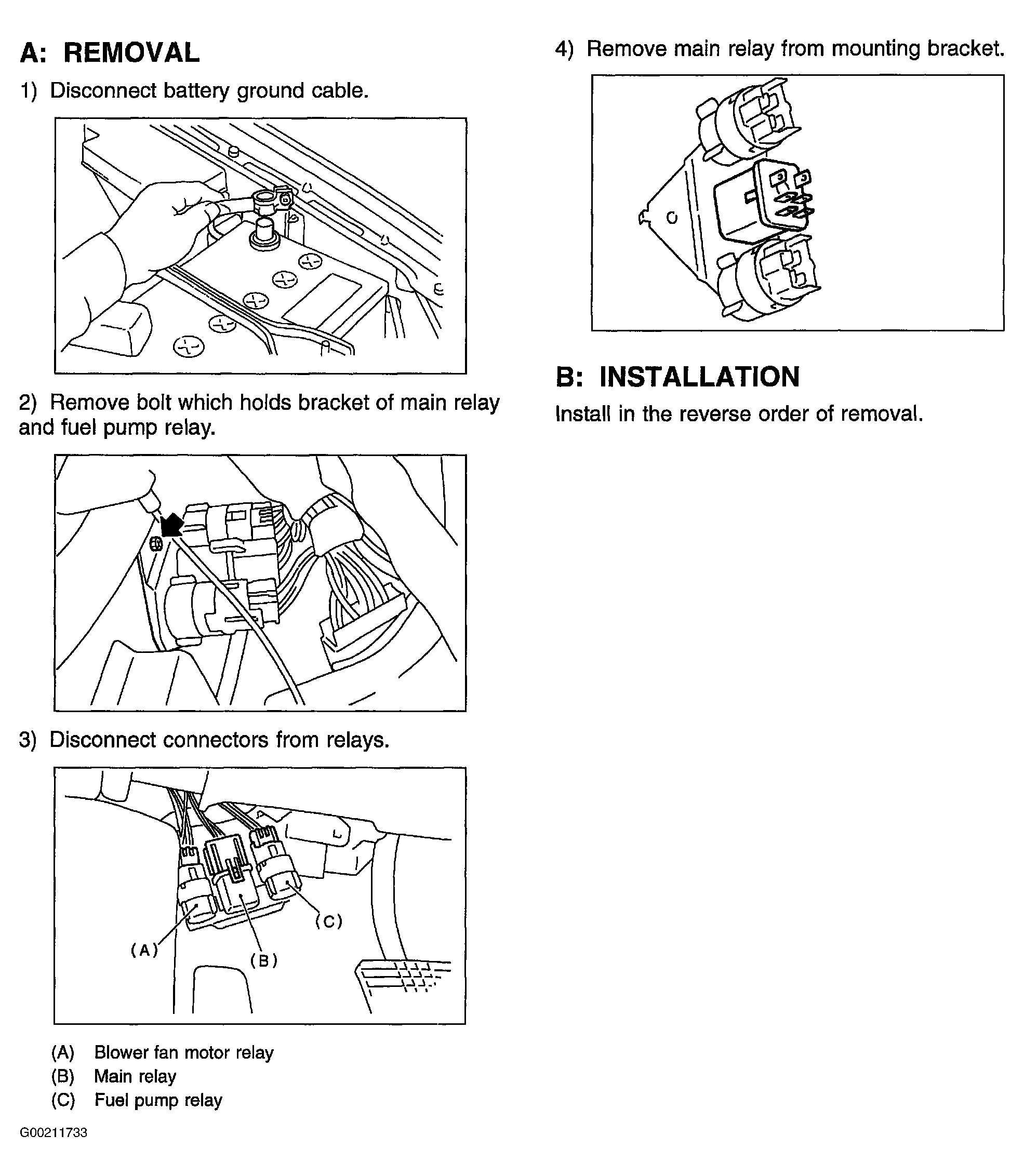

For removal and installation procedures, see Figure.
