Removal & Installation

WARNING: This page is about a different car, the 2002 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

For removal and installation procedures, see Fig 1-Fig 5 . Tighten fasteners to specification. See TORQUE SPECIFICATIONS .

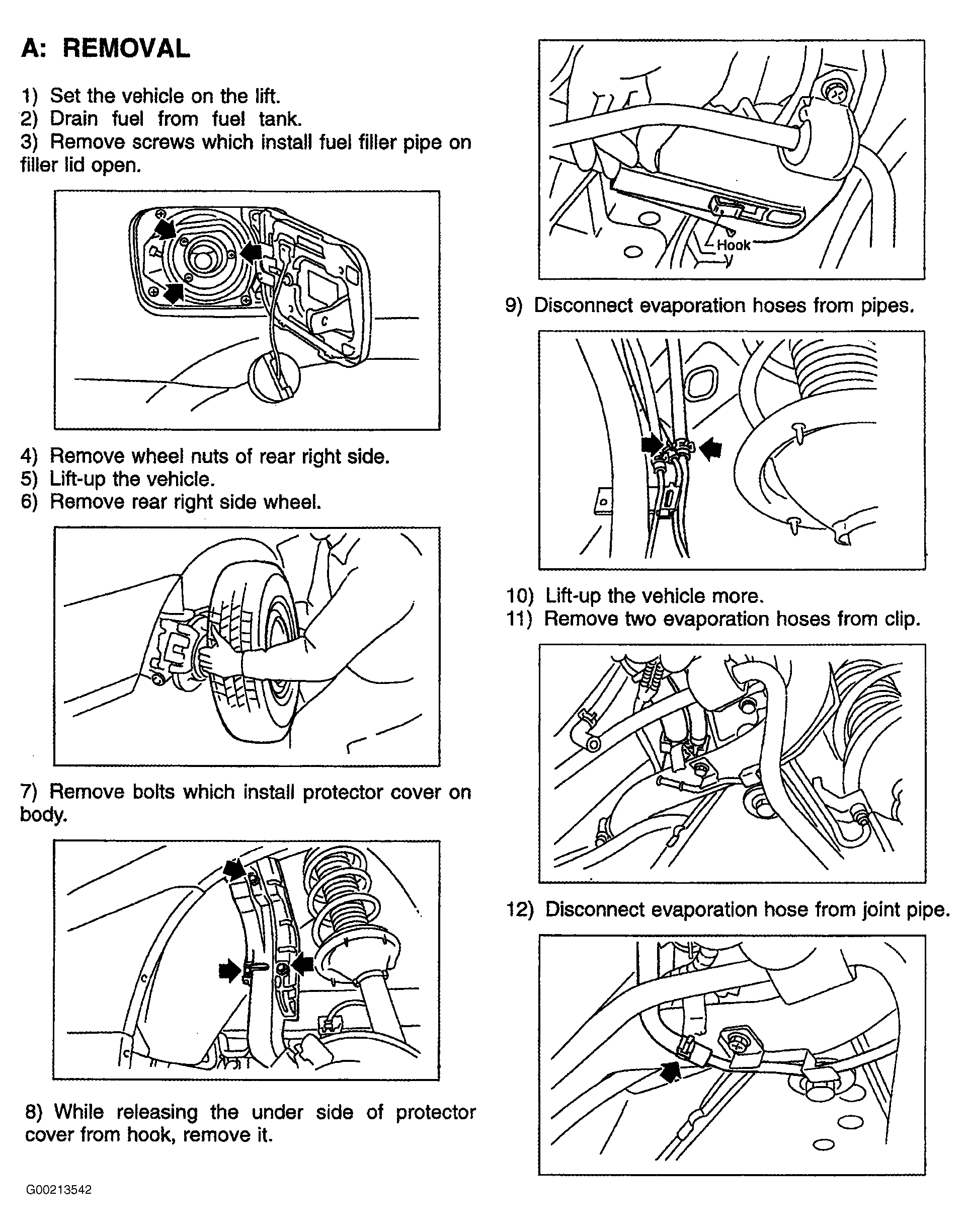

Fig 1: Fuel Filler Pipe Removal & Installation (Forester - 1 Of 5)

G00213542

Courtesy of SUBARU OF AMERICA, INC.

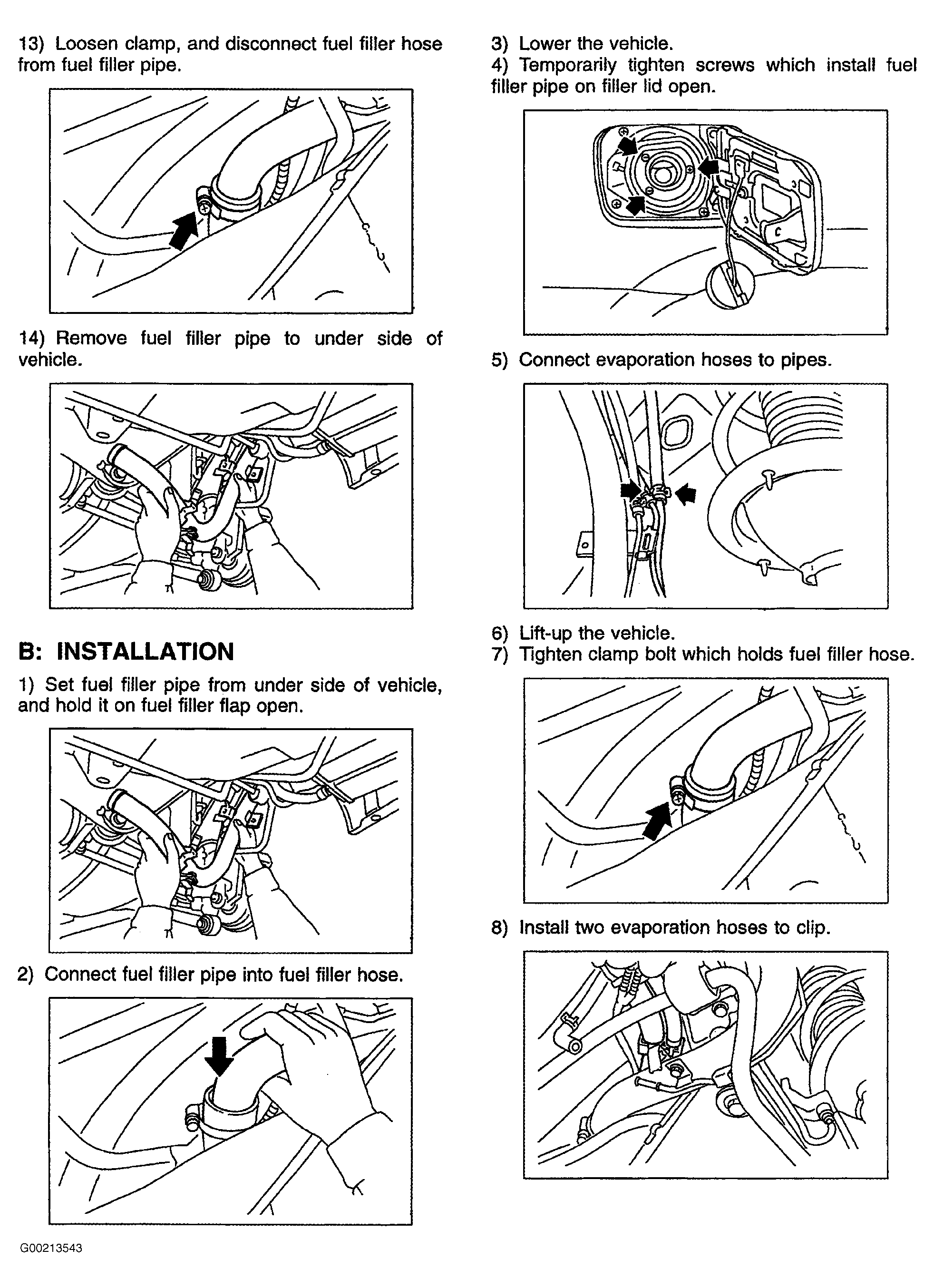

Fig 2: Fuel Filler Pipe Removal & Installation (Forester - 2 Of 5)

G00213543

Courtesy of SUBARU OF AMERICA, INC.

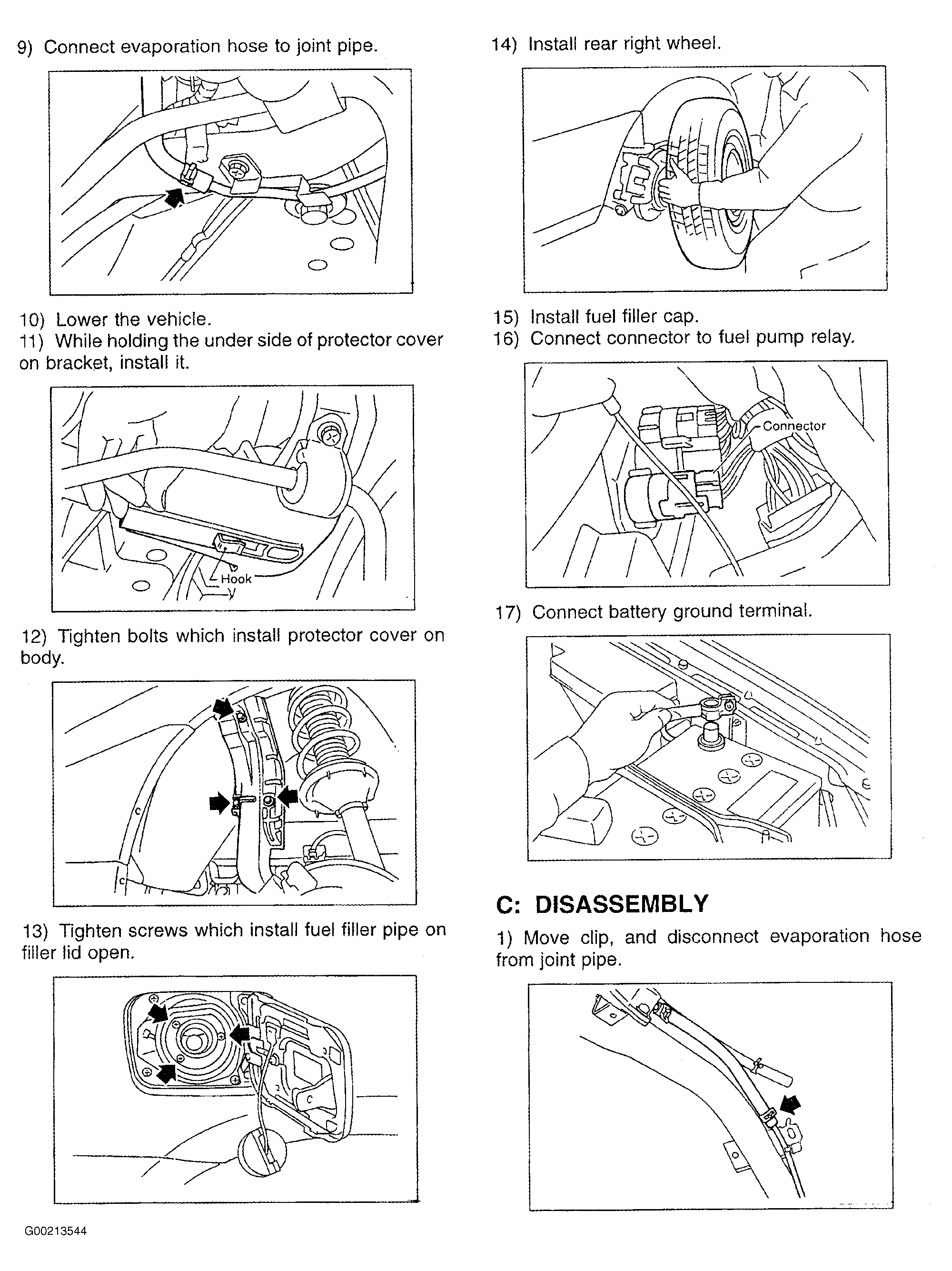

Fig 3: Fuel Filler Pipe Removal & Installation (Forester - 3 Of 5)

G00213544

Courtesy of SUBARU OF AMERICA, INC.

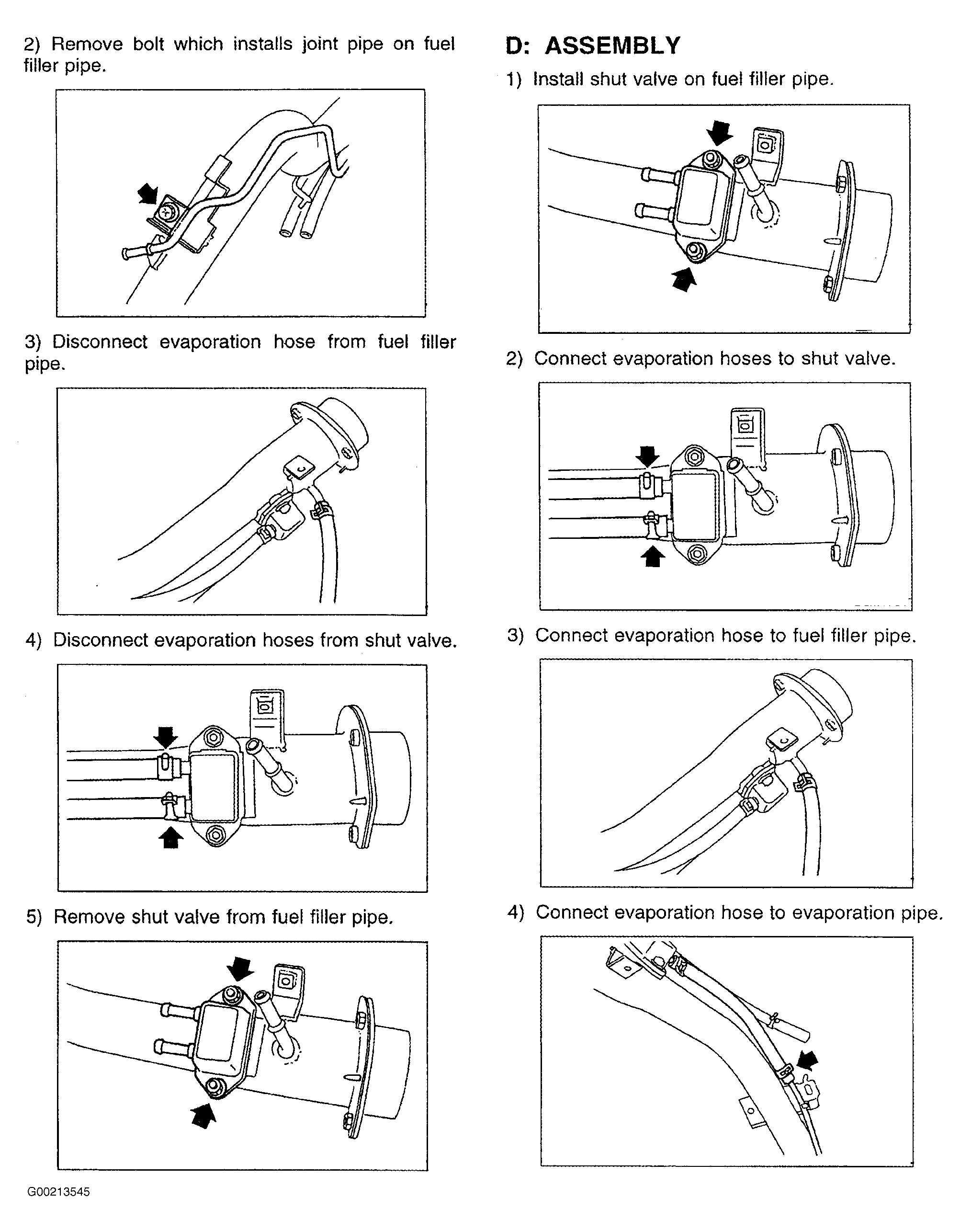

Fig 4: Fuel Filler Pipe (Removal & Installation (Forester - 4 Of 5)

G00213545

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Fuel Filler Pipe Removal & Installation (Forester - 5 Of 5)

G00213546

Courtesy of SUBARU OF AMERICA, INC.
