Removal & Installation

WARNING: This page is about a different car, the 2002 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

For removal and installation procedures, see Fig 1.

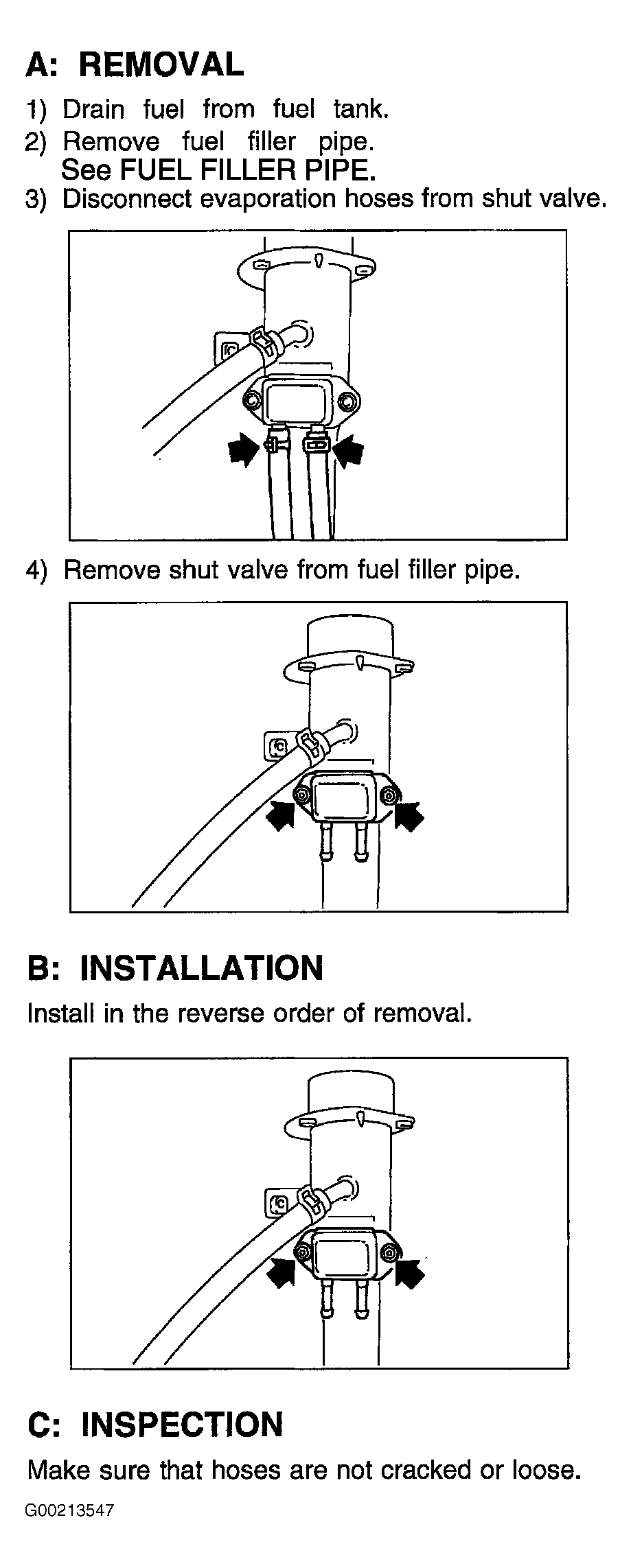

Fig 1: Shut Valve Removal & Installation
G00213547Courtesy of SUBARU OF AMERICA, INC.
