Removal & Installation
WARNING: This page is about a different car, the 2002 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

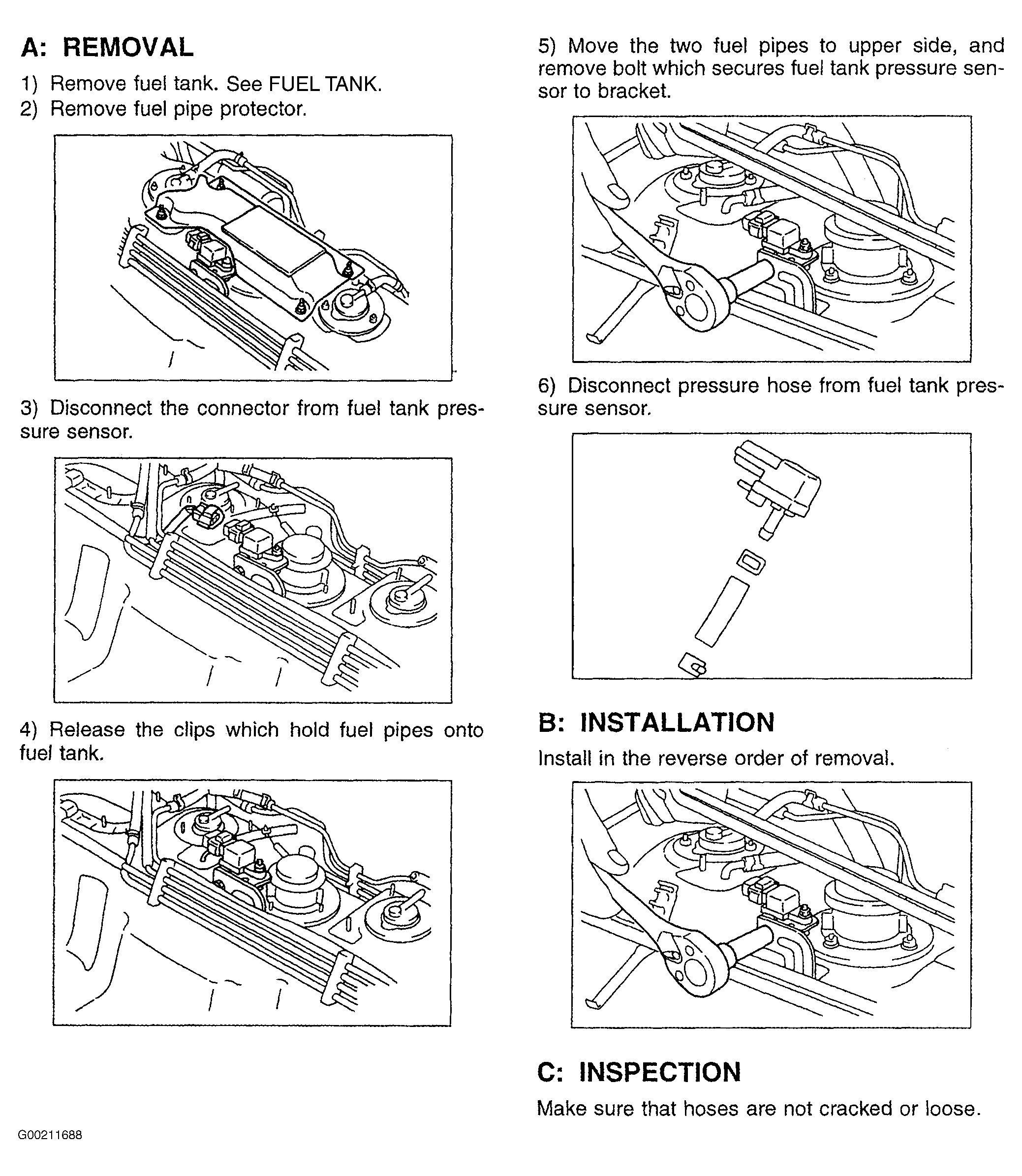

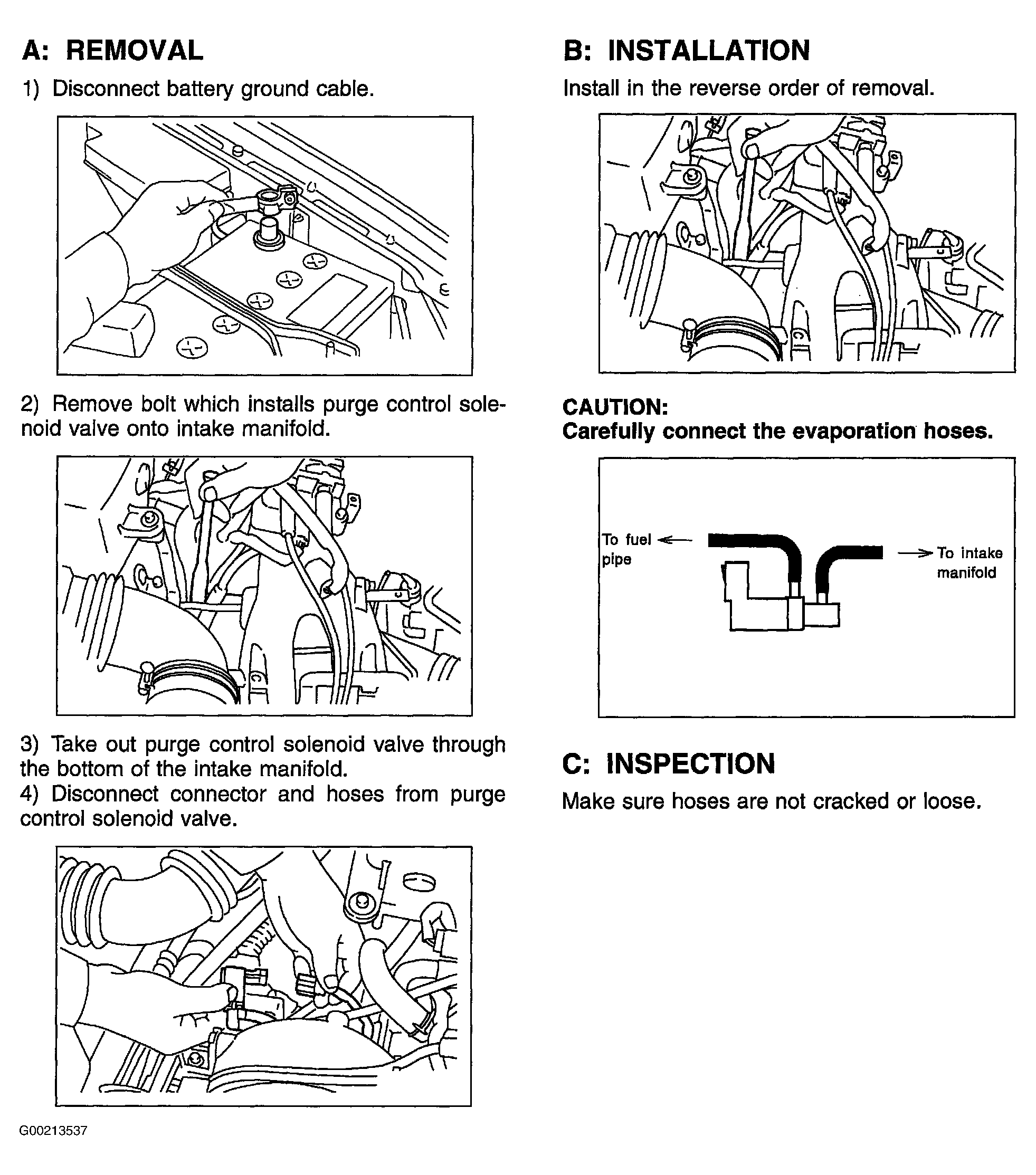

For removal and installation procedures, see Fig 1. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .
