Removal & Installation

WARNING: This page is about a different car, the 2002 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

For removal and installation procedures, see Fig 1-Fig 13 . Tighten fasteners to specification. See TORQUE SPECIFICATIONS .

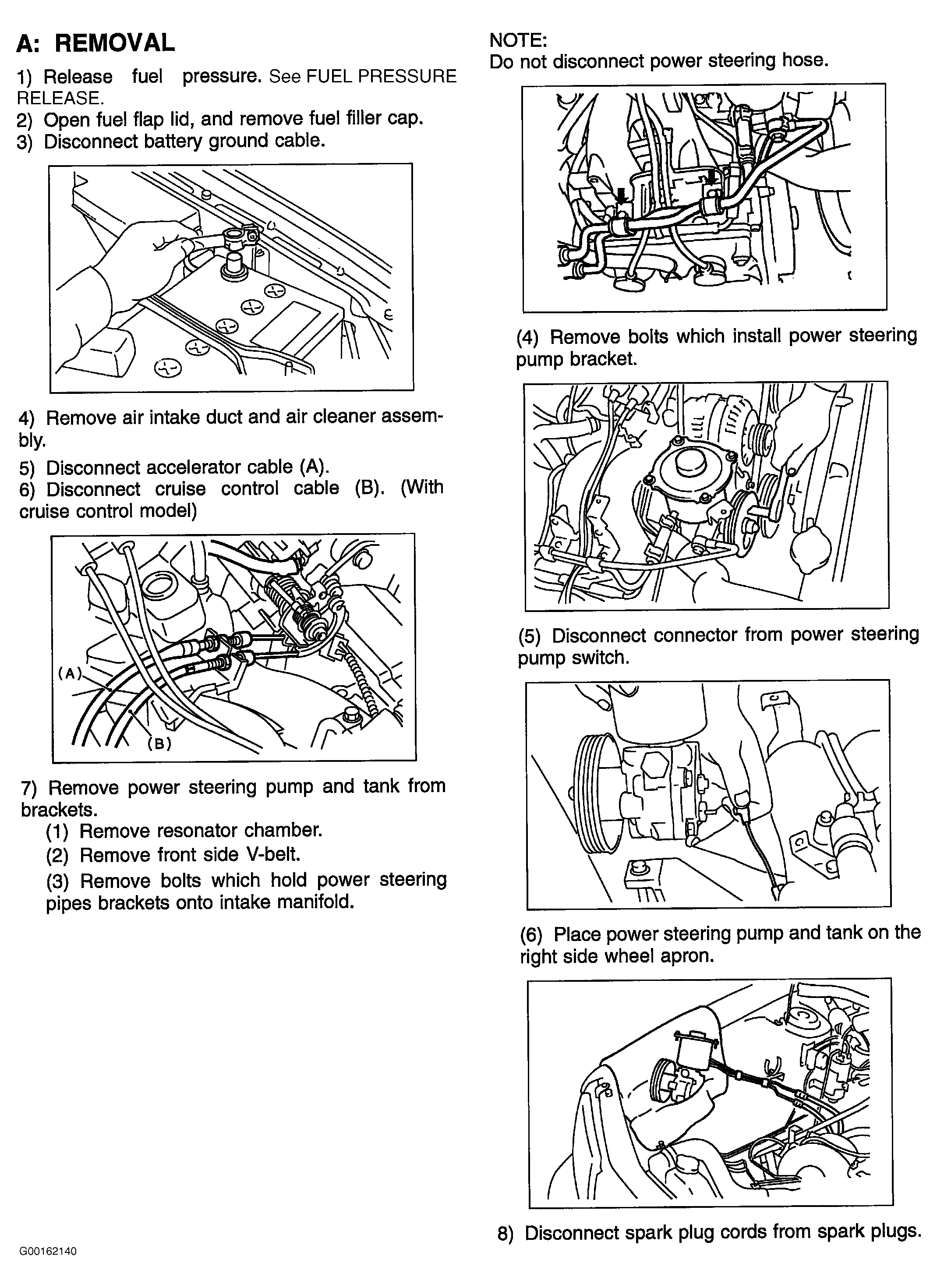

Fig 1: Intake Manifold Removal & Installation (Forester - 1 Of 13)

G00162140

Courtesy of SUBARU OF AMERICA, INC.

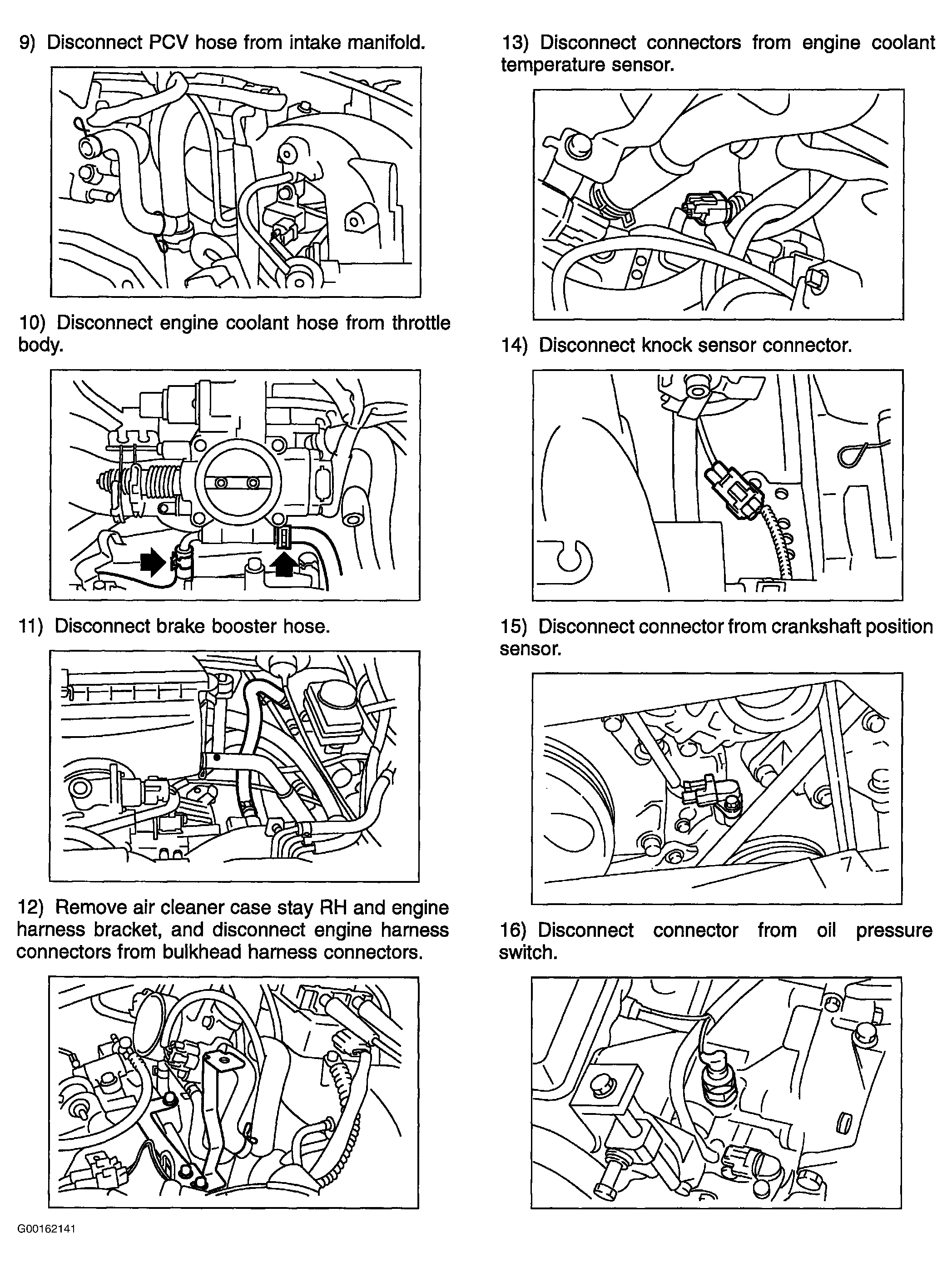

Fig 2: Intake Manifold Removal & Installation (Forester - 2 Of 13)

G00162141

Courtesy of SUBARU OF AMERICA, INC.

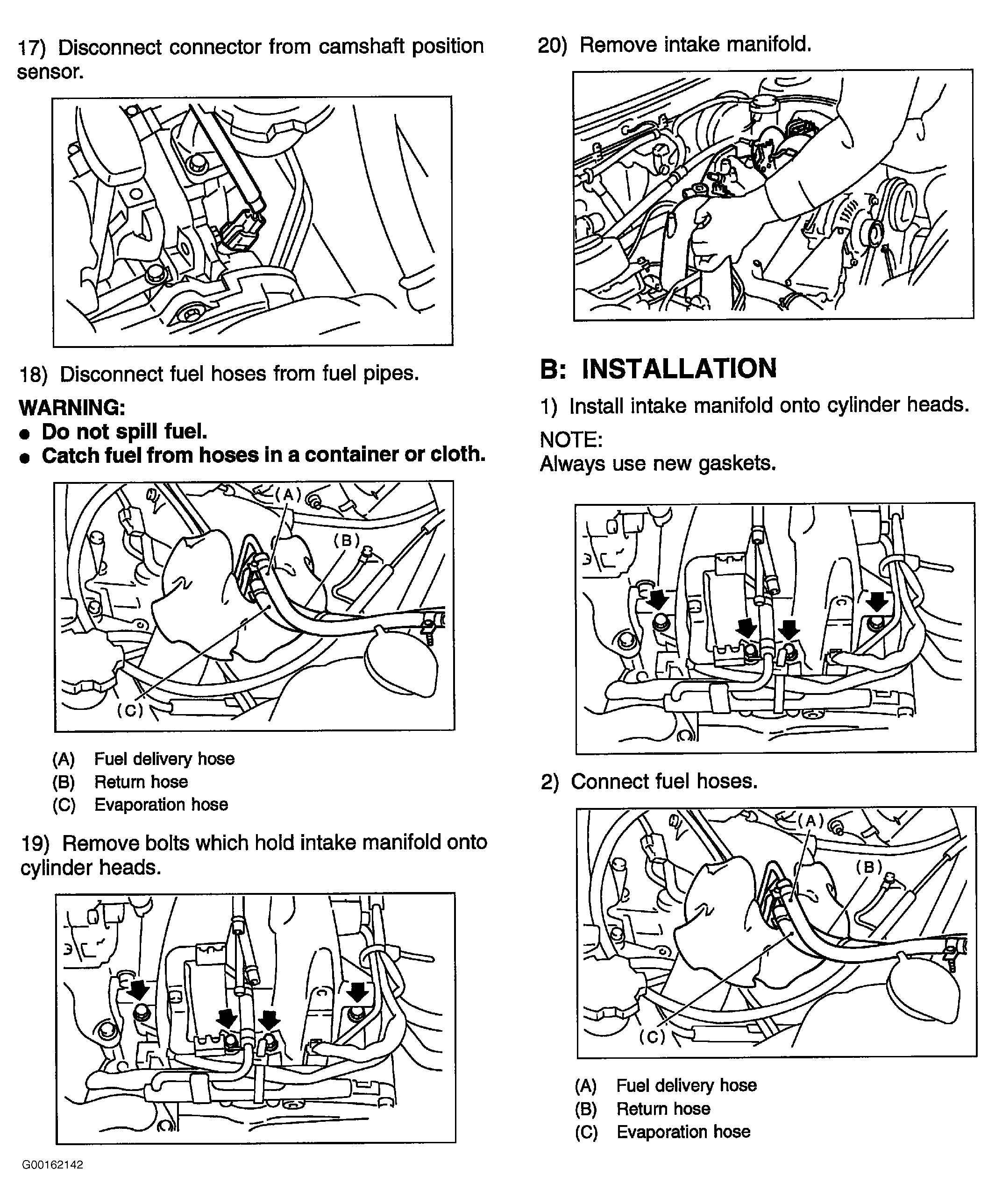

Fig 3: Intake Manifold Removal & Installation (Forester - 3 Of 13)

G00162142

Courtesy of SUBARU OF AMERICA, INC.

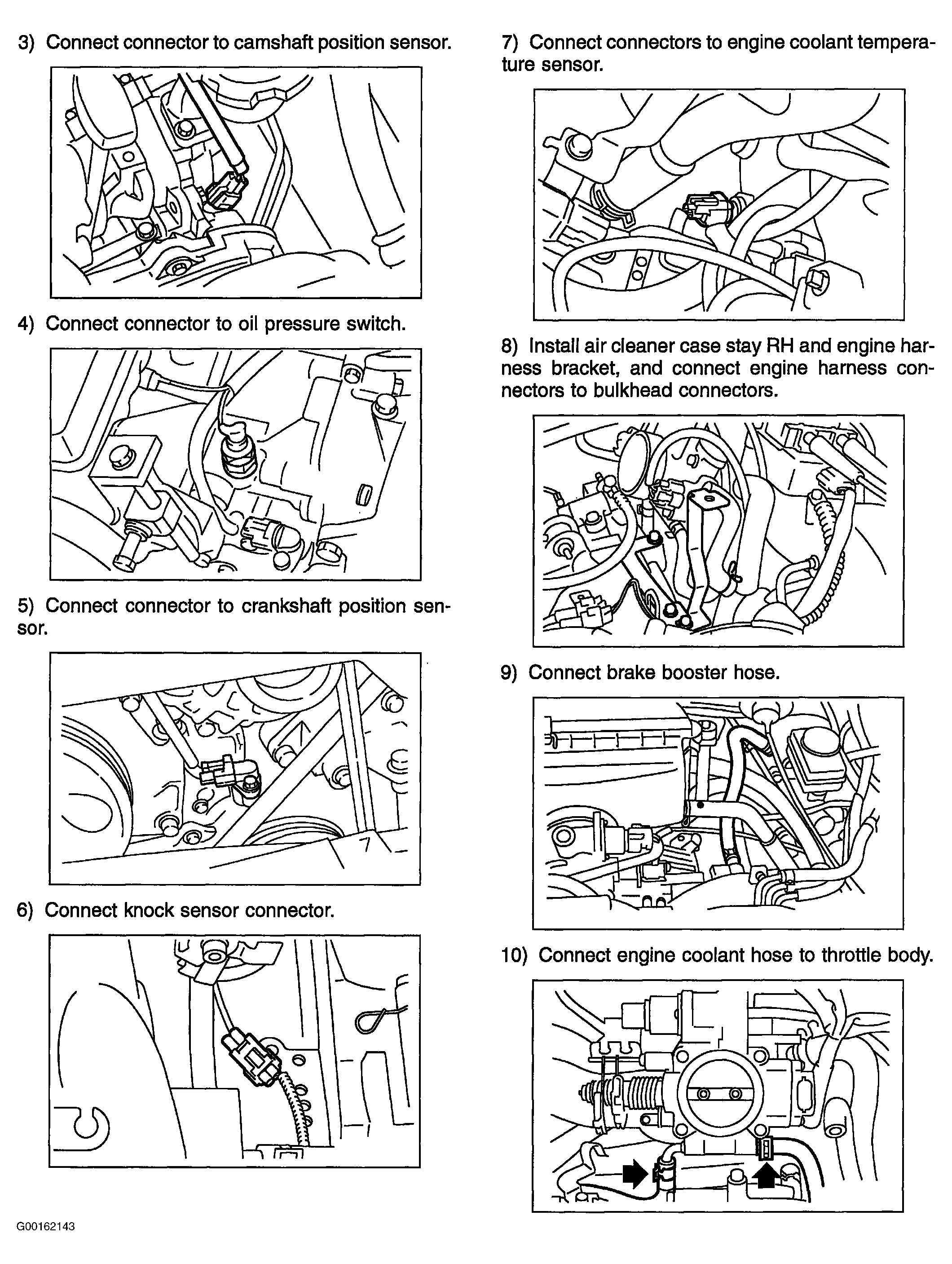

Fig 4: Intake Manifold Removal & Installation (Forester - 4 Of 13)

G00162143

Courtesy of SUBARU OF AMERICA, INC.

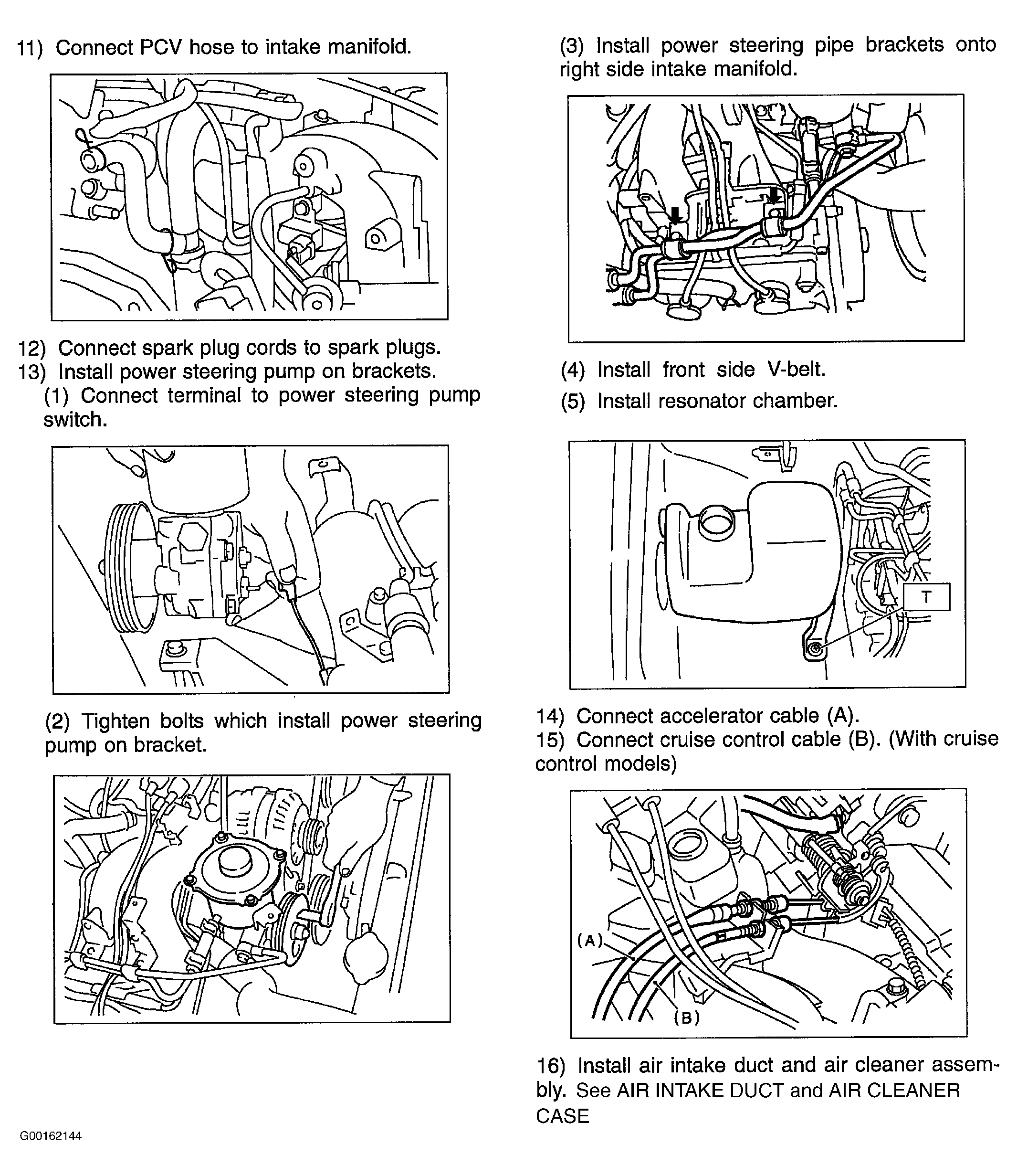

Fig 5: Intake Manifold Removal & Installation (Forester - 5 Of 13)

G00162144

Courtesy of SUBARU OF AMERICA, INC.

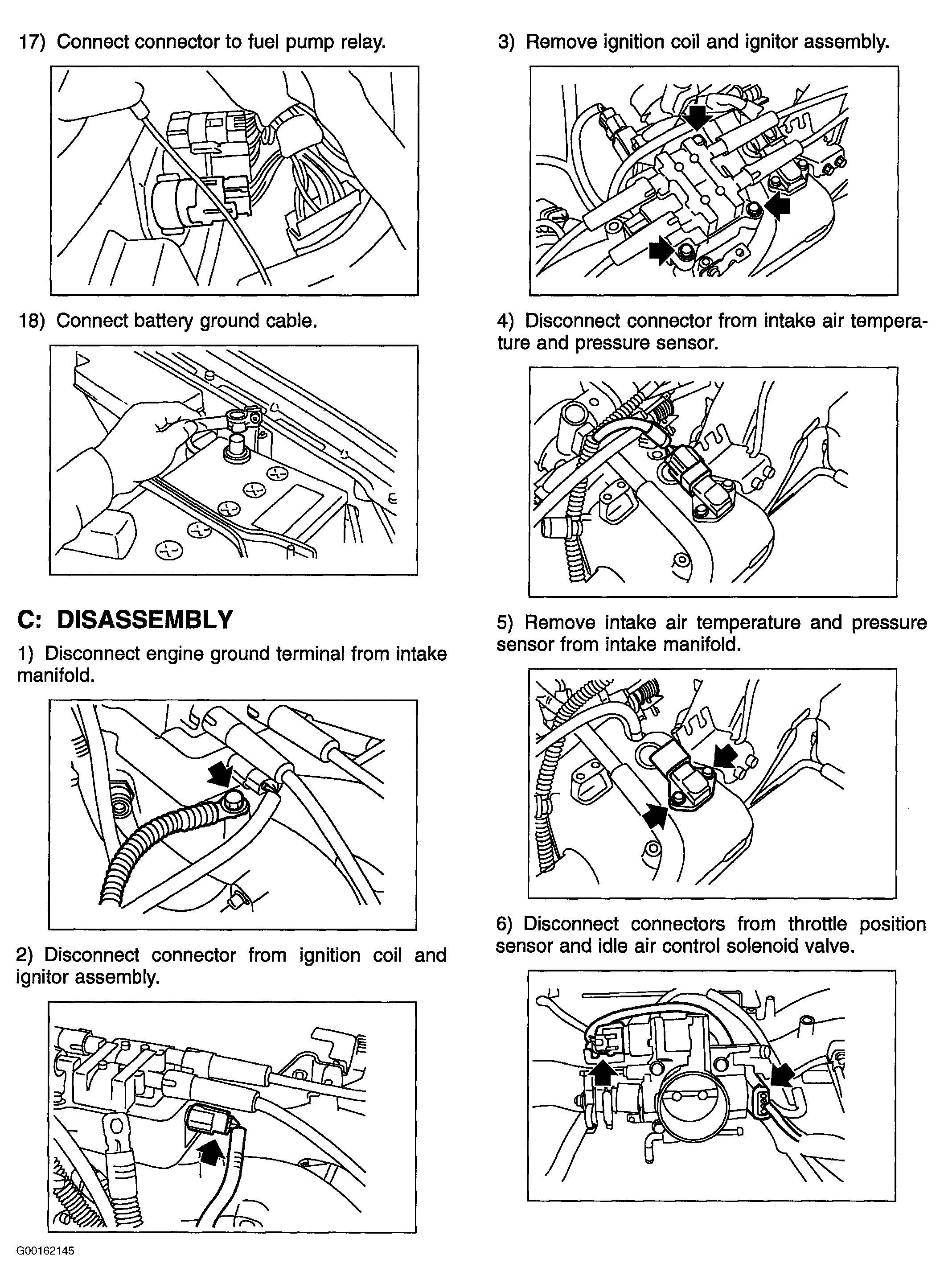

Fig 6: Intake Manifold Removal & Installation (Forester - 6 Of 13)

G00162145

Courtesy of SUBARU OF AMERICA, INC.

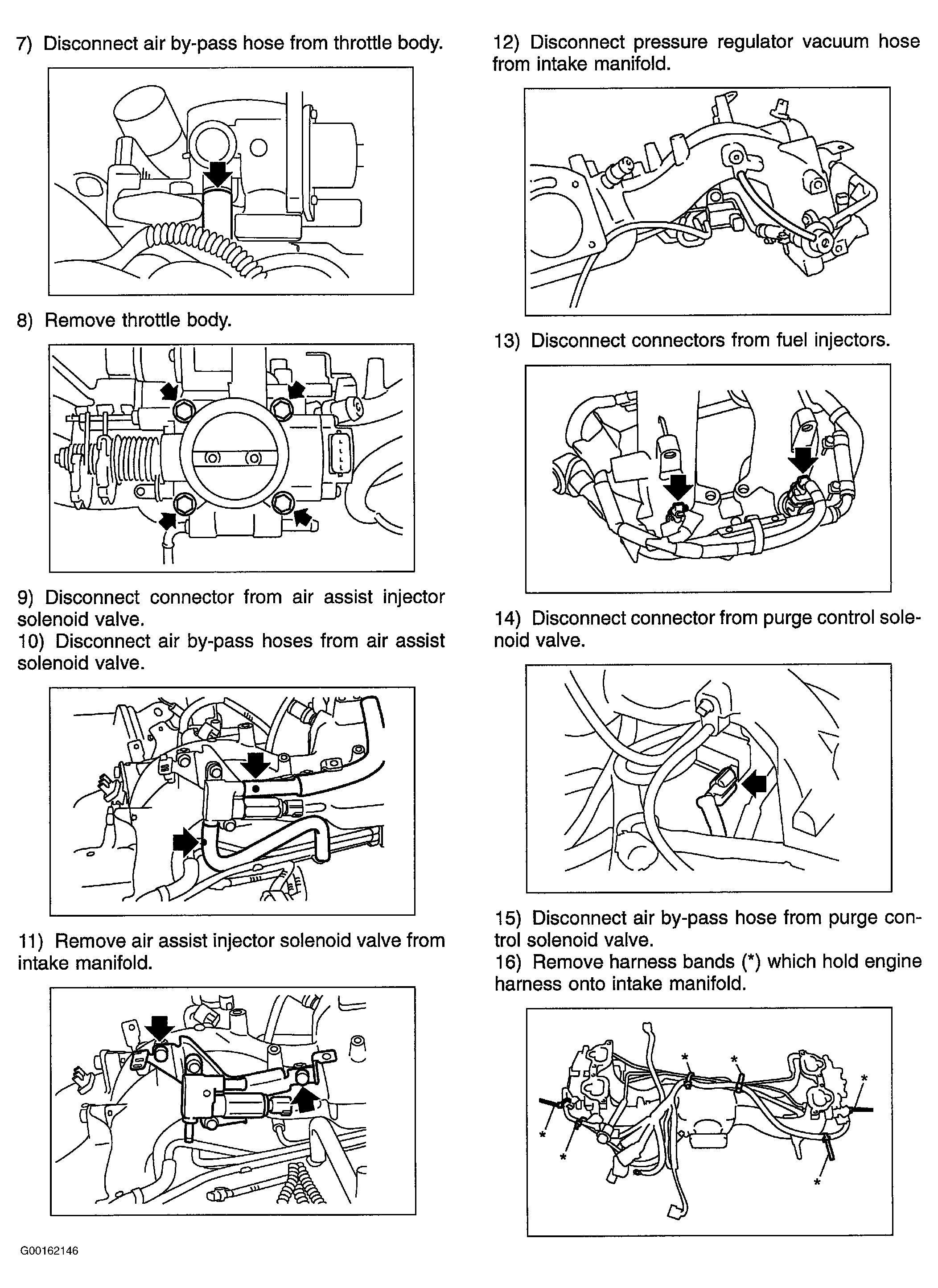

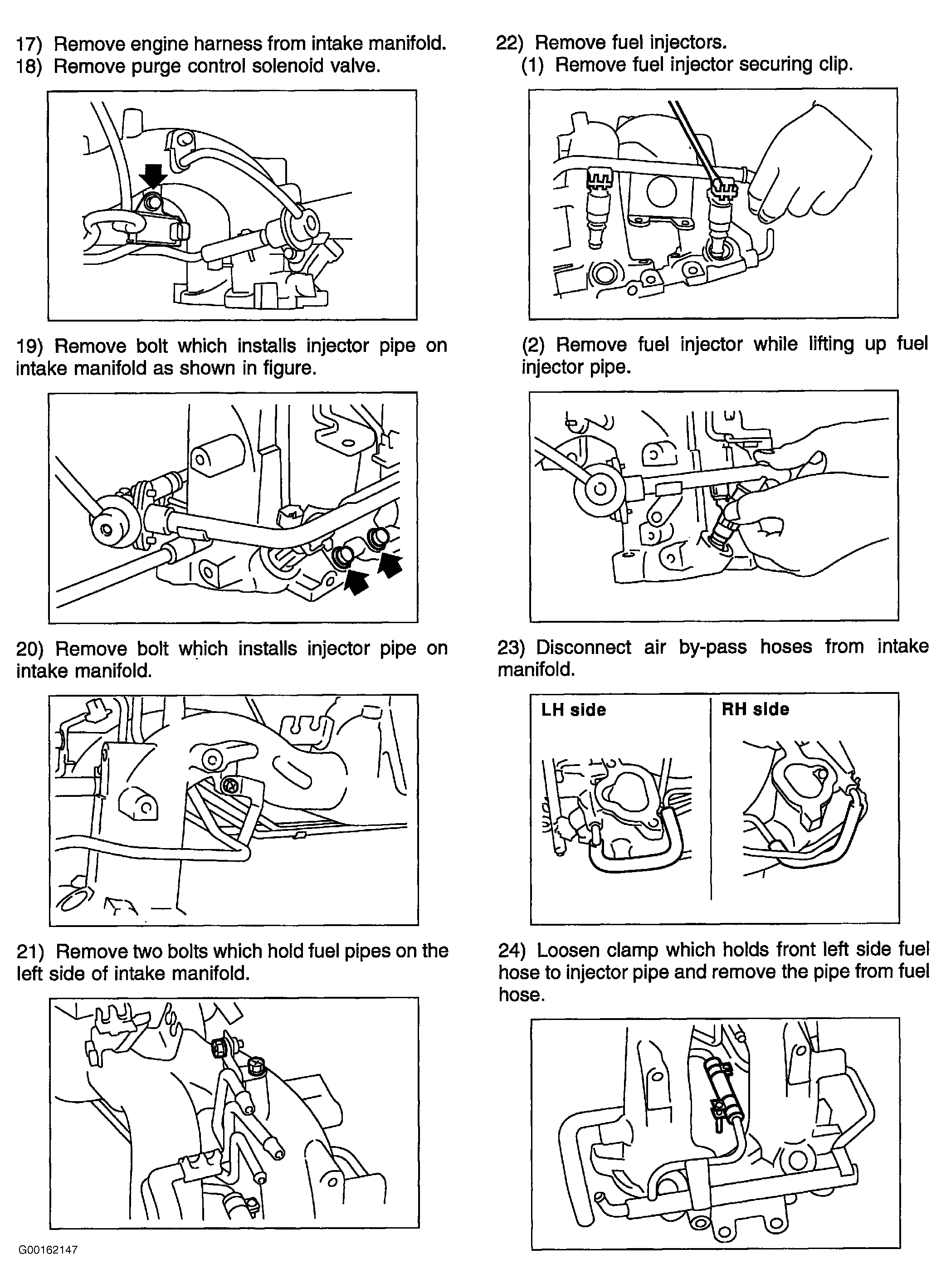

Fig 7: Intake Manifold Removal & Installation (Forester - 7 Of 13)

G00162146

Courtesy of SUBARU OF AMERICA, INC.

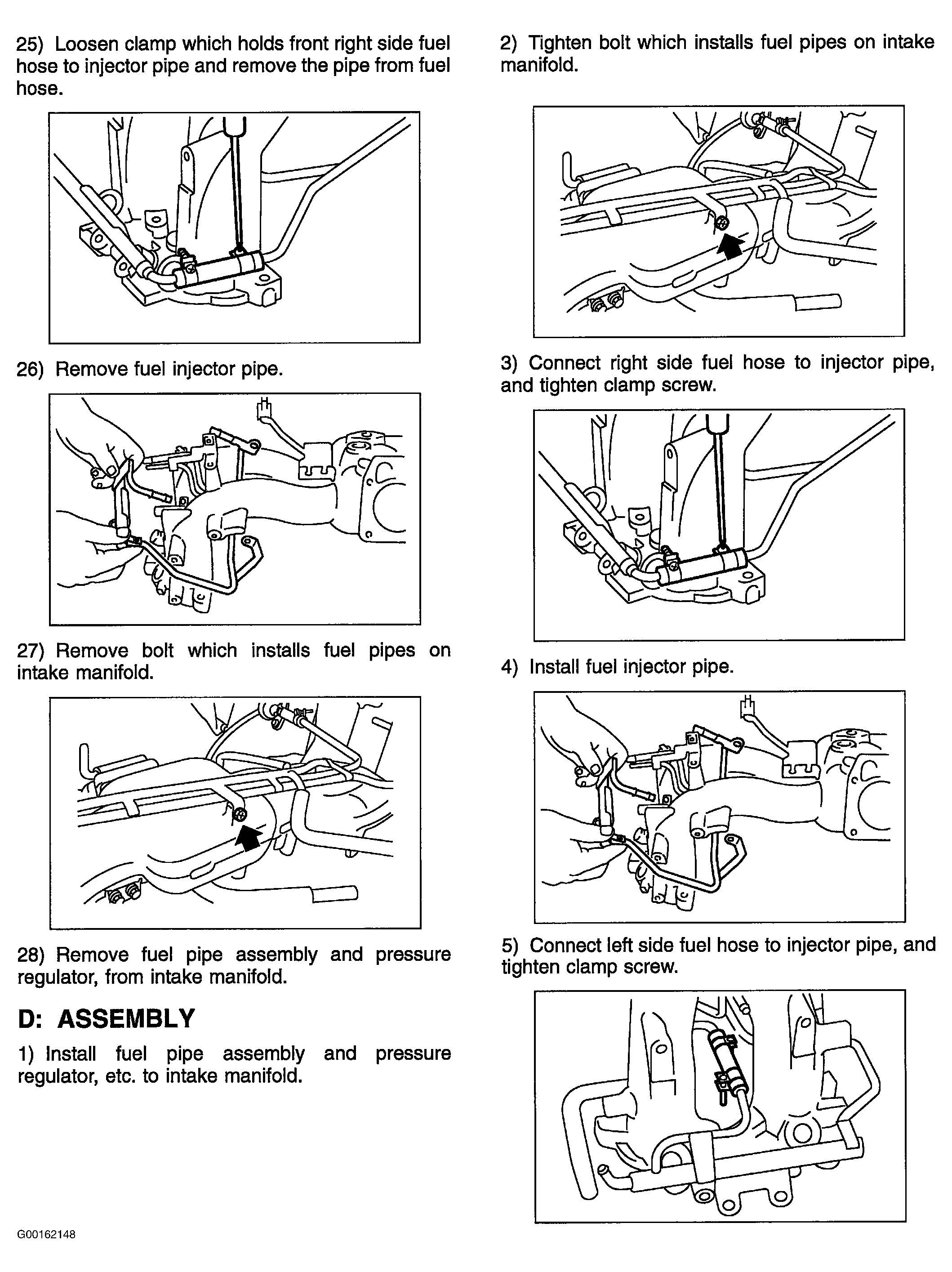

Fig 8: Intake Manifold Removal & Installation (Forester - 8 Of 13)

G00162147

Courtesy of SUBARU OF AMERICA, INC.

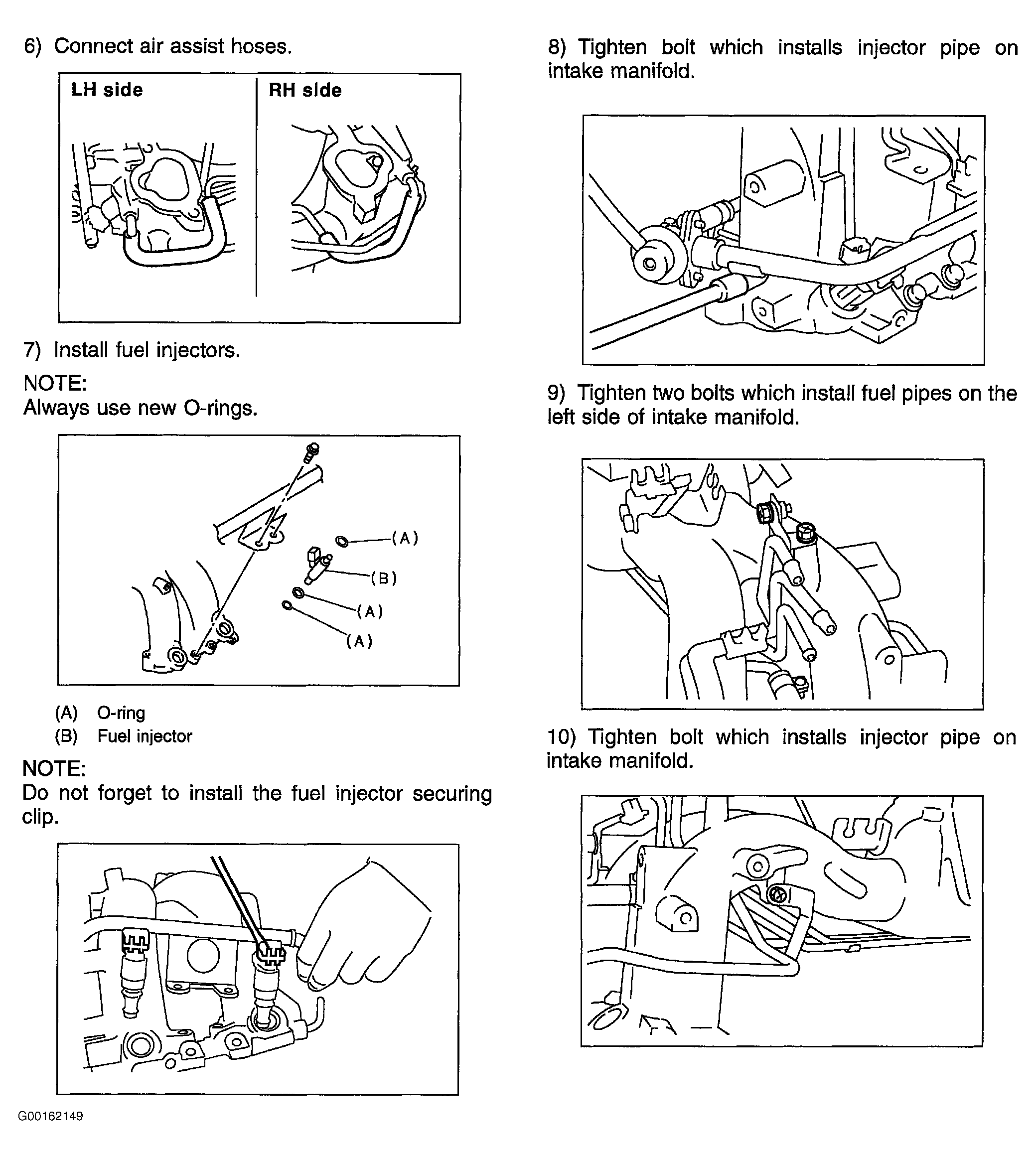

Fig 9: Intake Manifold Removal & Installation (Forester - 9 Of 13)

G00162148

Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Intake Manifold Removal & Installation (Forester - 10 Of 13)

G00162149

Courtesy of SUBARU OF AMERICA, INC.

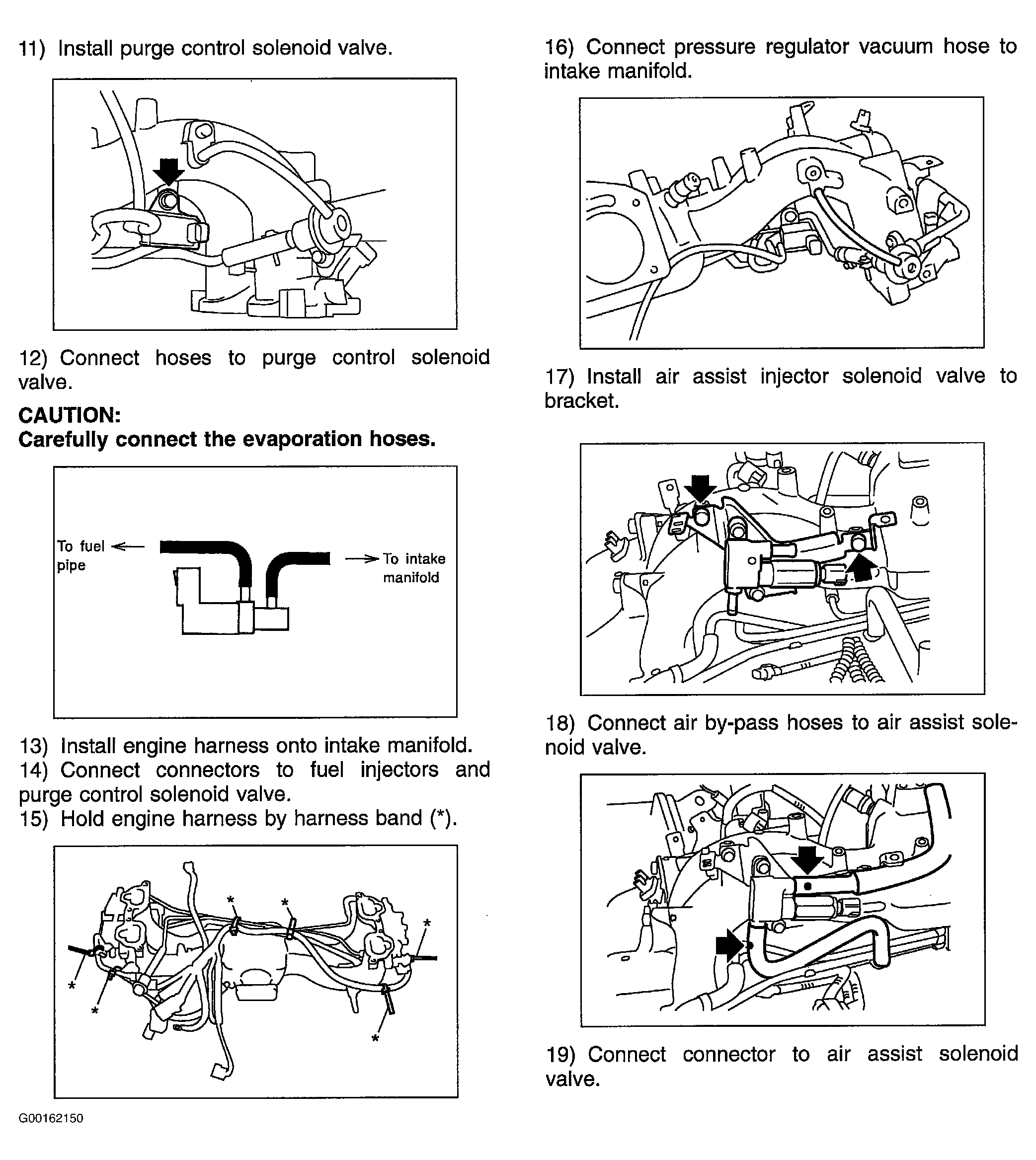

Fig 11: Intake Manifold Removal & Installation (Forester - 11 Of 13)

G00162150

Courtesy of SUBARU OF AMERICA, INC.

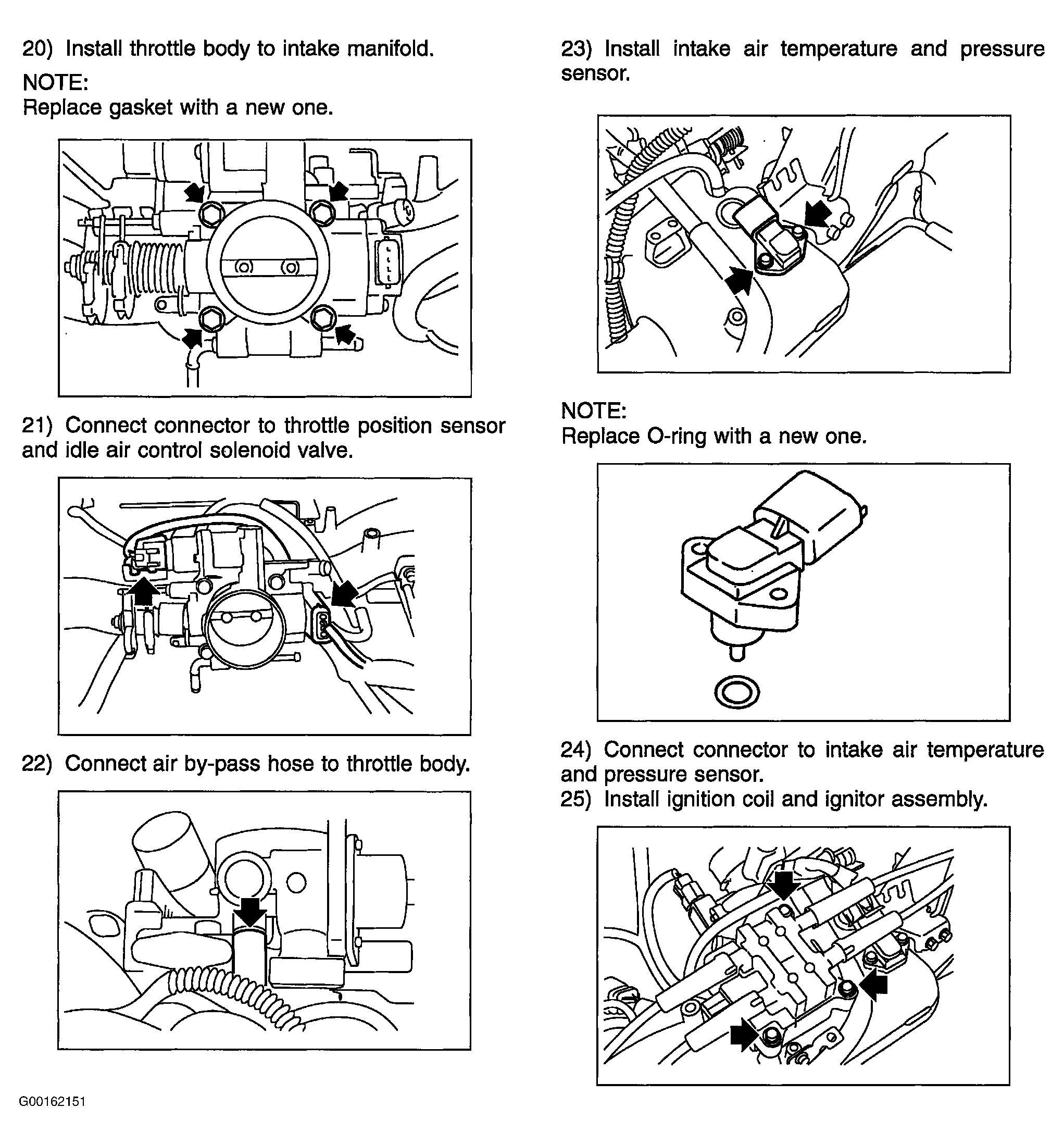

Fig 12: Intake Manifold Removal & Installation (Forester - 12 Of 13)

G00162151

Courtesy of SUBARU OF AMERICA, INC.

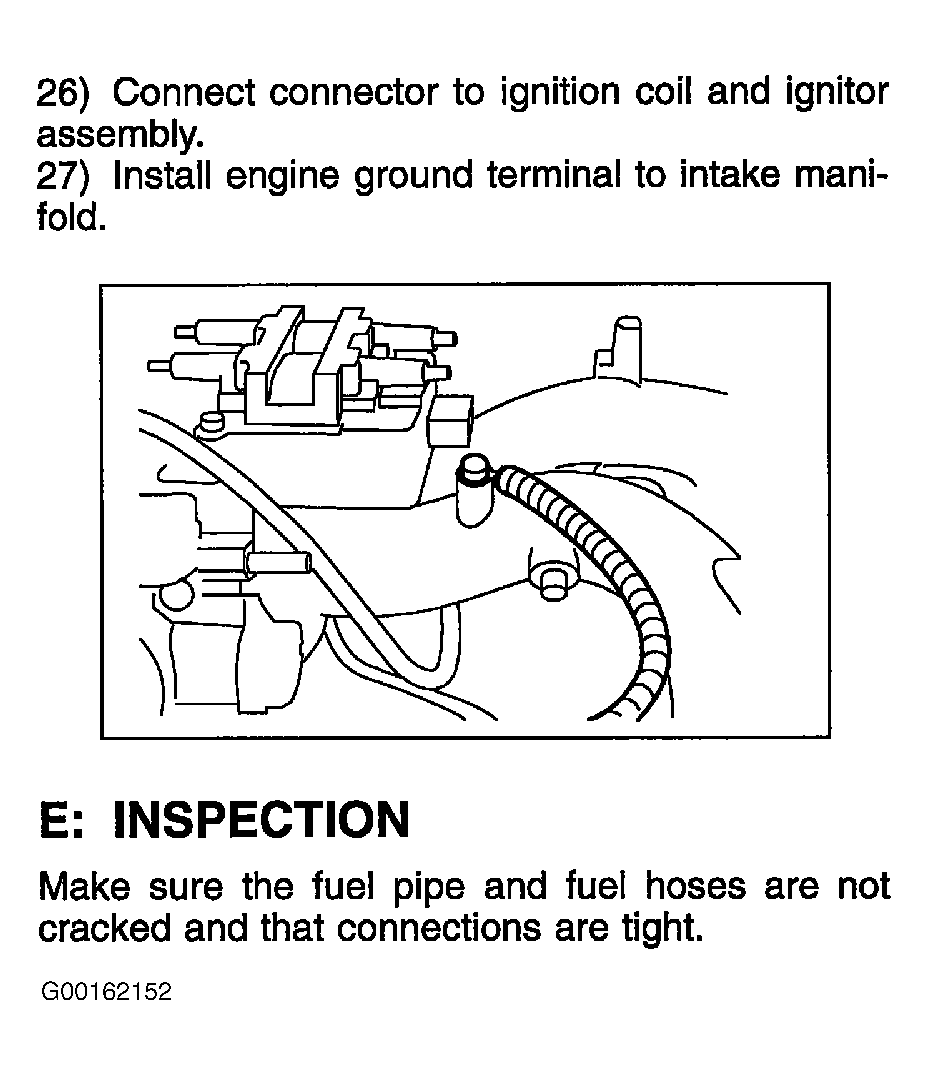

Fig 13: Intake Manifold Removal & Installation (Forester - 13 Of 13)

G00162152

Courtesy of SUBARU OF AMERICA, INC.
