Rear Speaker: Removal

  1. Disconnect ground cable from battery.
  2. Remove rear door trim. < Ref. to REMOVAL , Rear Door Trim.>
  3. Remove rear speaker mounting screws.

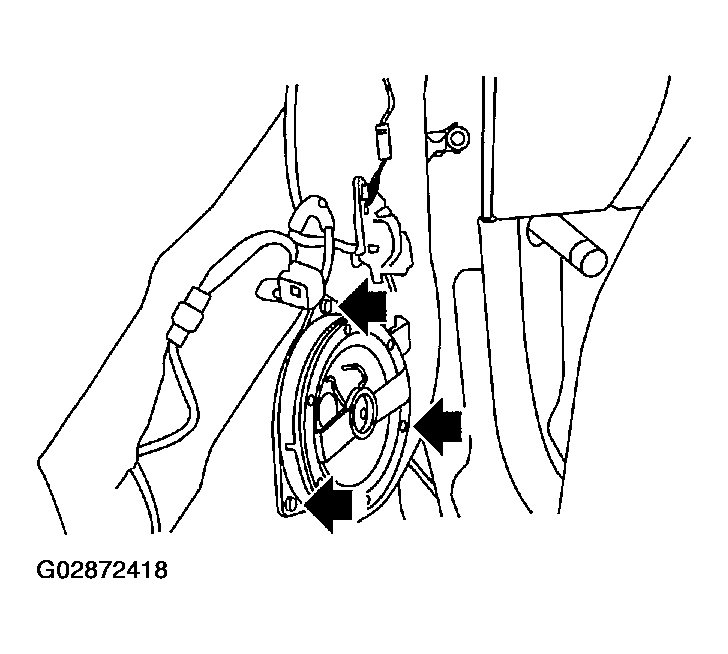

    Fig 1: Removing Rear Speaker Mounting Screws
    G02872418Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect harness connector and remove rear speaker.
