Crankshaft Position, Camshaft Position And Knock Sensors

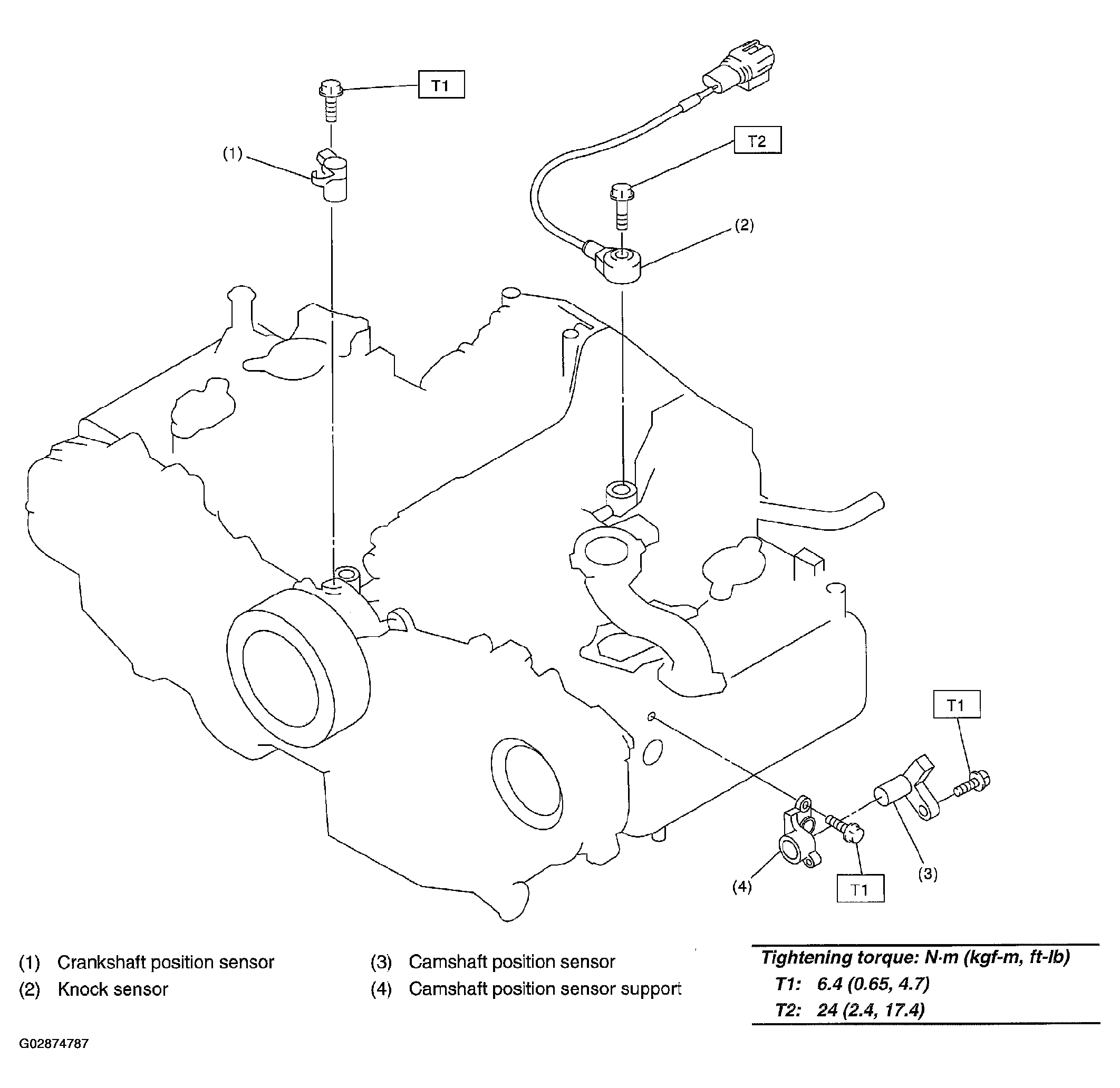

Fig 1: Exploded View Of Crankshaft Position, Camshaft Position & Knock Sensors With Torque Specifications

G02874787

Courtesy of SUBARU OF AMERICA, INC.
