Rear Exhaust Pipe: Removal

  1. Separate rear exhaust pipe from center exhaust pipe.
    CAUTION: Be careful, exhaust pipe is hot.

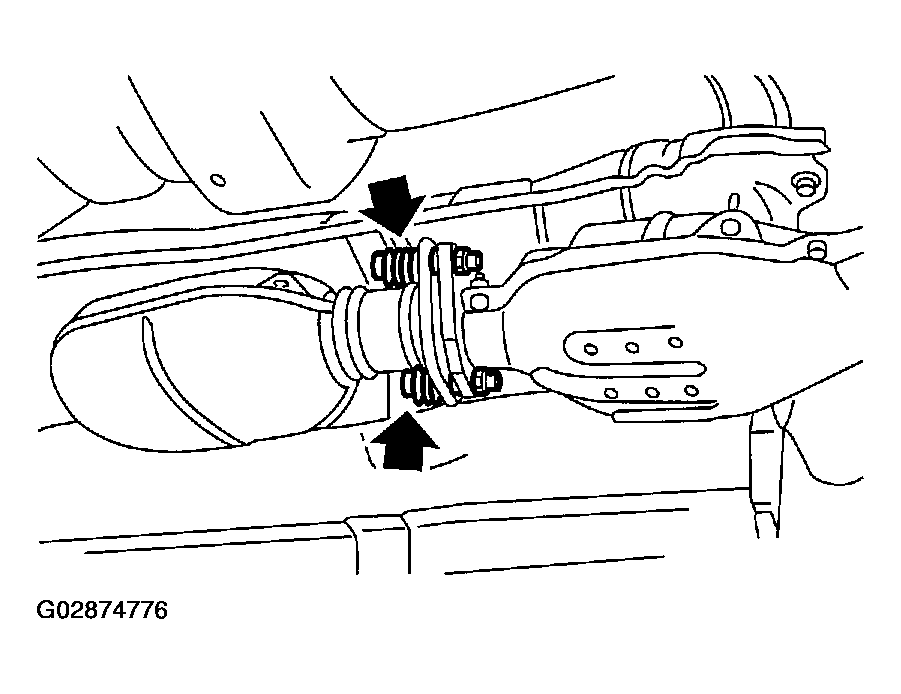

    Fig 1: Separating Rear Exhaust Pipe From Center Exhaust Pipe
    G02874776Courtesy of SUBARU OF AMERICA, INC.
  2. Separate rear exhaust pipe from muffler.
    CAUTION: Be careful not to pull down rear exhaust pipe.

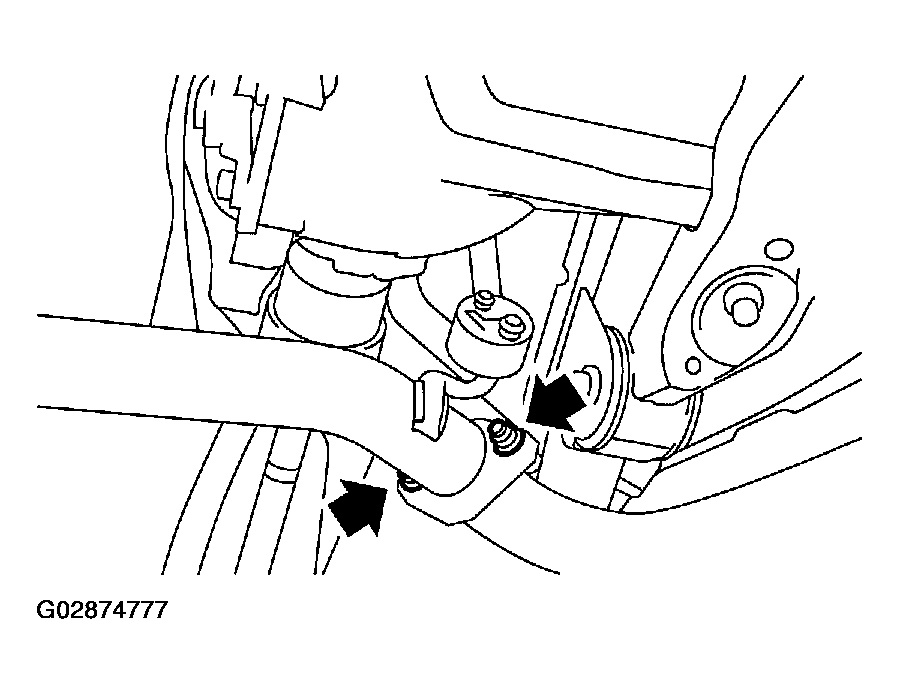

    Fig 2: Separating Rear Exhaust Pipe From Muffler
    G02874777Courtesy of SUBARU OF AMERICA, INC.
  3. Remove rear exhaust pipe.
