Reservoir Tank: Removal

  1. Disconnect overflow hose from radiator filler neck position.
  2. Remove bolts which install reservoir tank onto radiator main fan shroud.
  3. Remove reservoir tank.

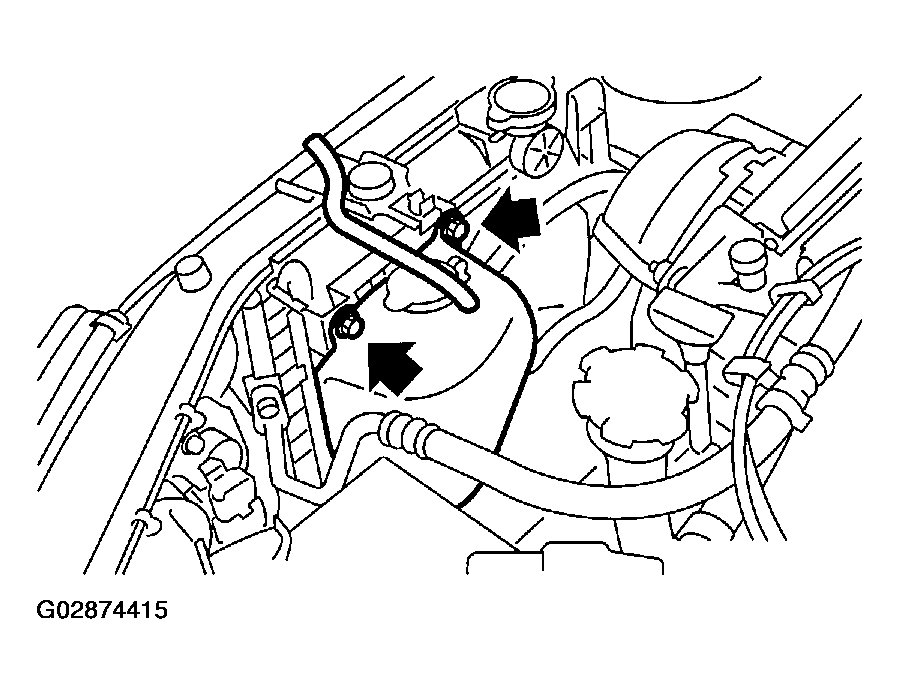

    Fig 1: Removing Reservoir Tank
    G02874415Courtesy of SUBARU OF AMERICA, INC.
