Radiator Sub Fan and Fan Motor: Removal

Disconnect battery ground cable.

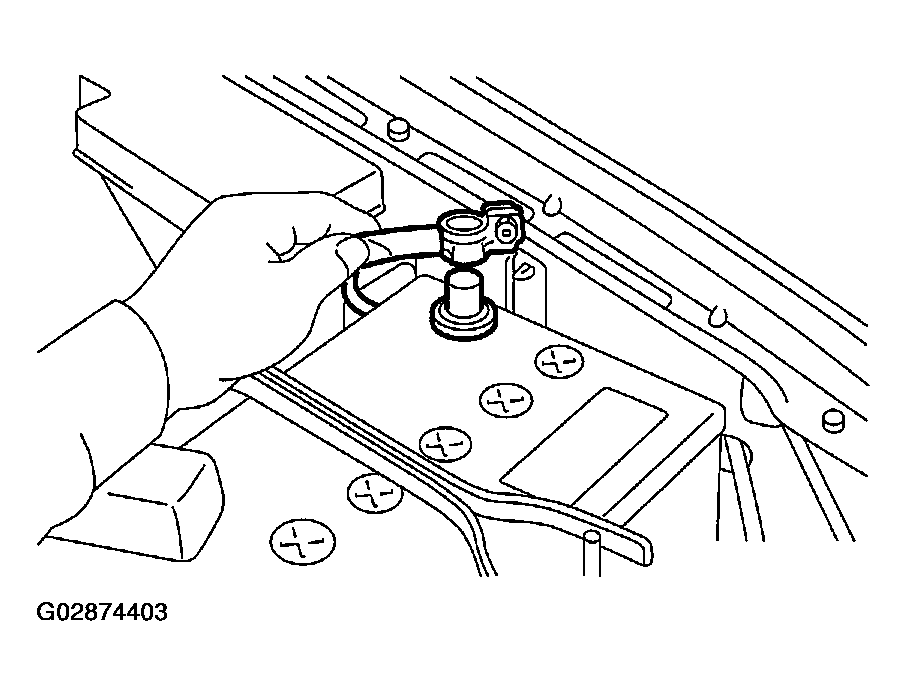

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove under cover.

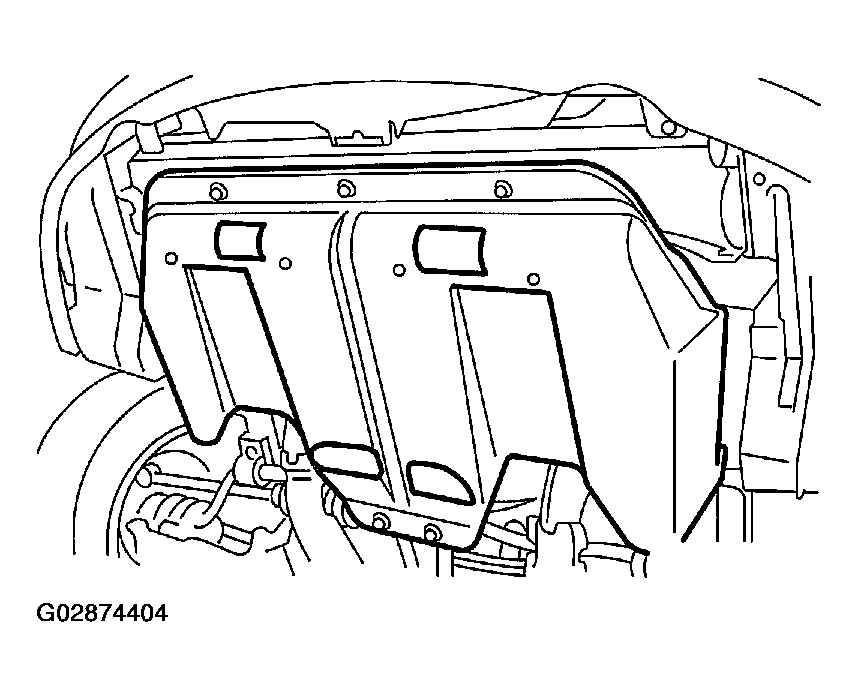

Fig 2: Removing Under Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector of sub fan motor.

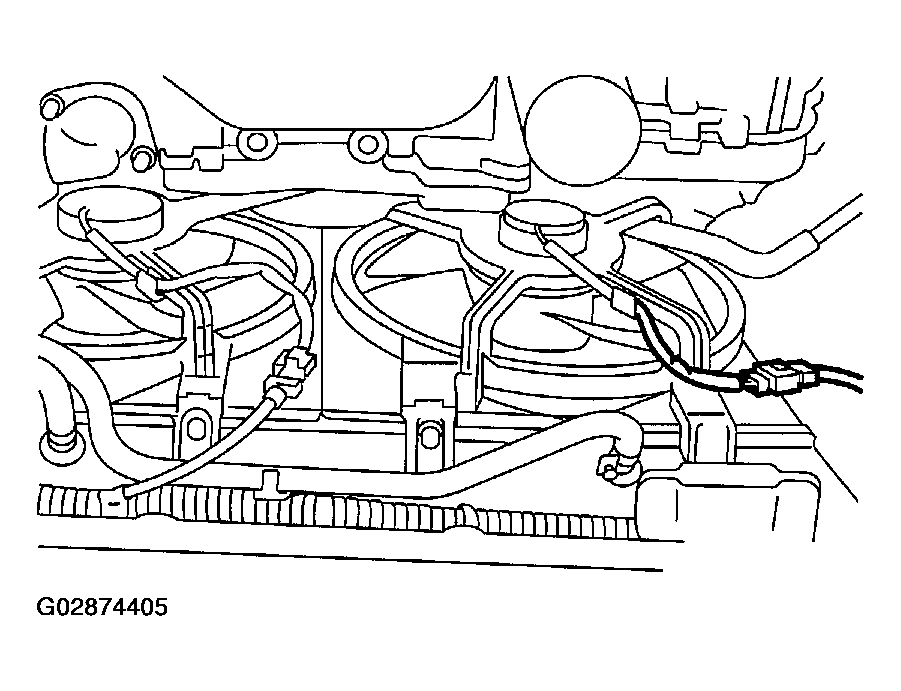

Fig 3: Disconnecting Connector Of Sub Fan Motor
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove air intake duct.

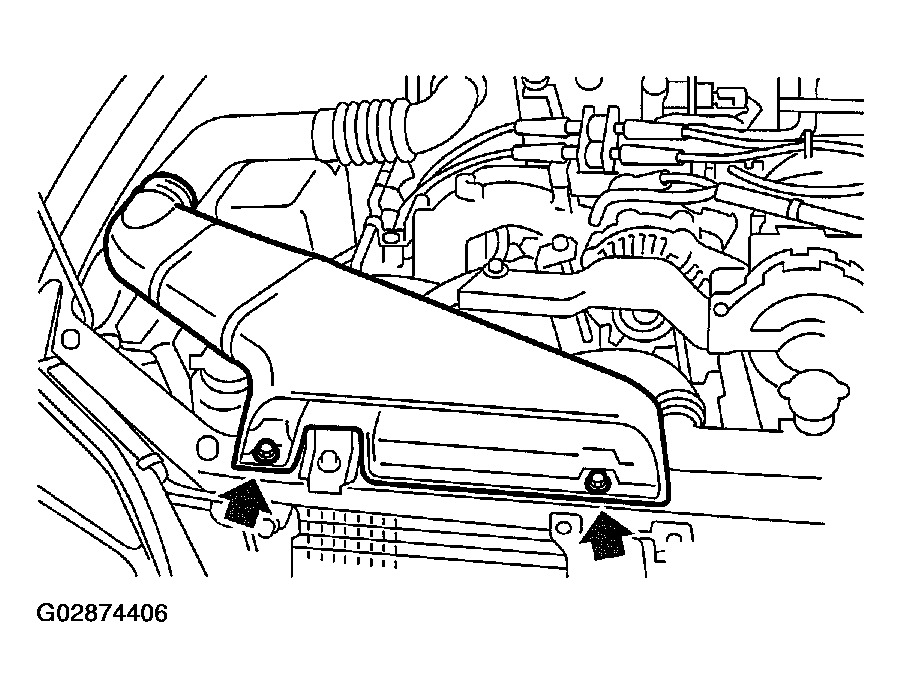

Fig 4: Removing Air Intake Duct
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts which hold sub fan shroud to radiator.
Remove radiator sub fan shroud through the under side of vehicle.

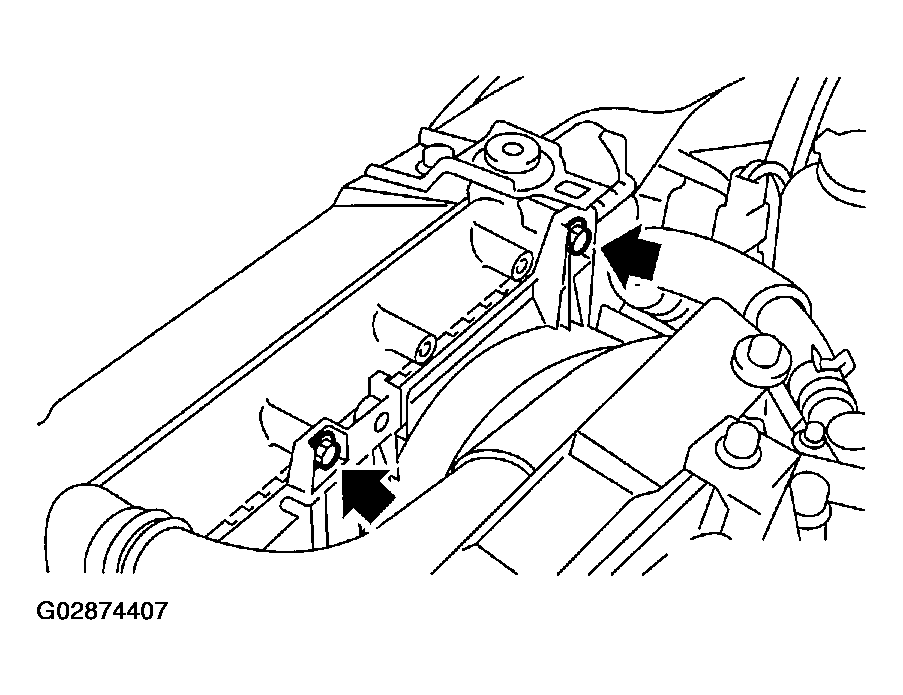

Fig 5: Removing Sub Fan Shroud Bolts
Courtesy of SUBARU OF AMERICA, INC.
