Disassembly & Assembly

Remove clip which holds motor harness onto shroud. See Figure.
Remove nut which holds fan itself onto fan motor and shroud assembly. See Fig 1.

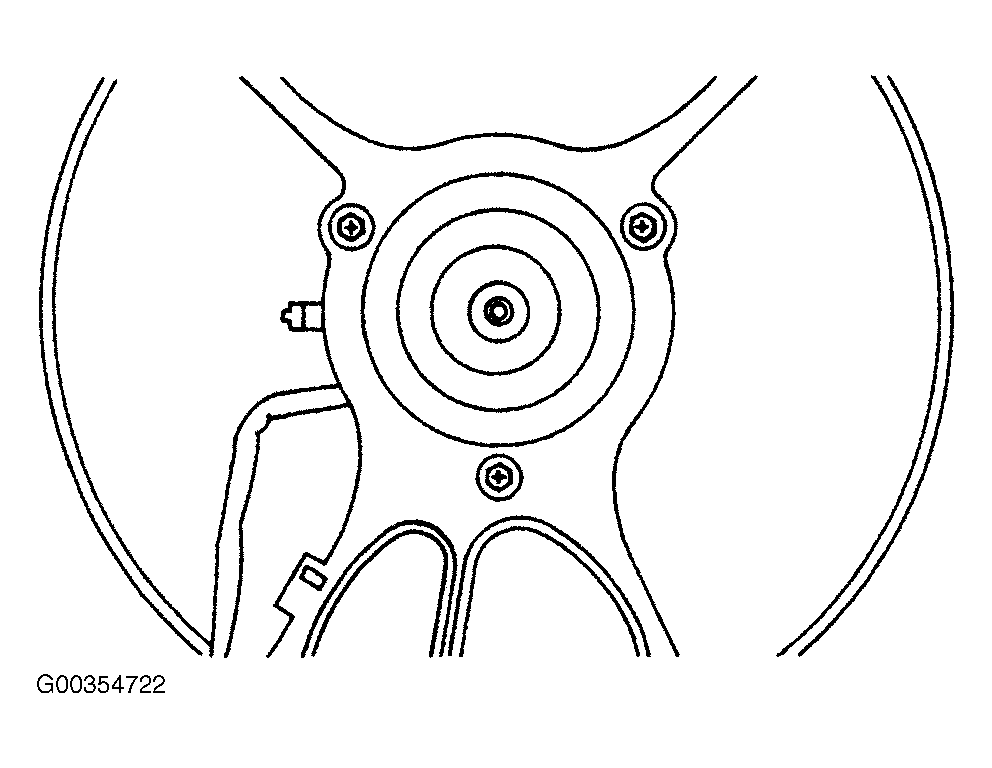

Remove bolts which install fan motor onto shroud. See Figure.
Install in the reverse order of removal. See Figure and Fig 1 .

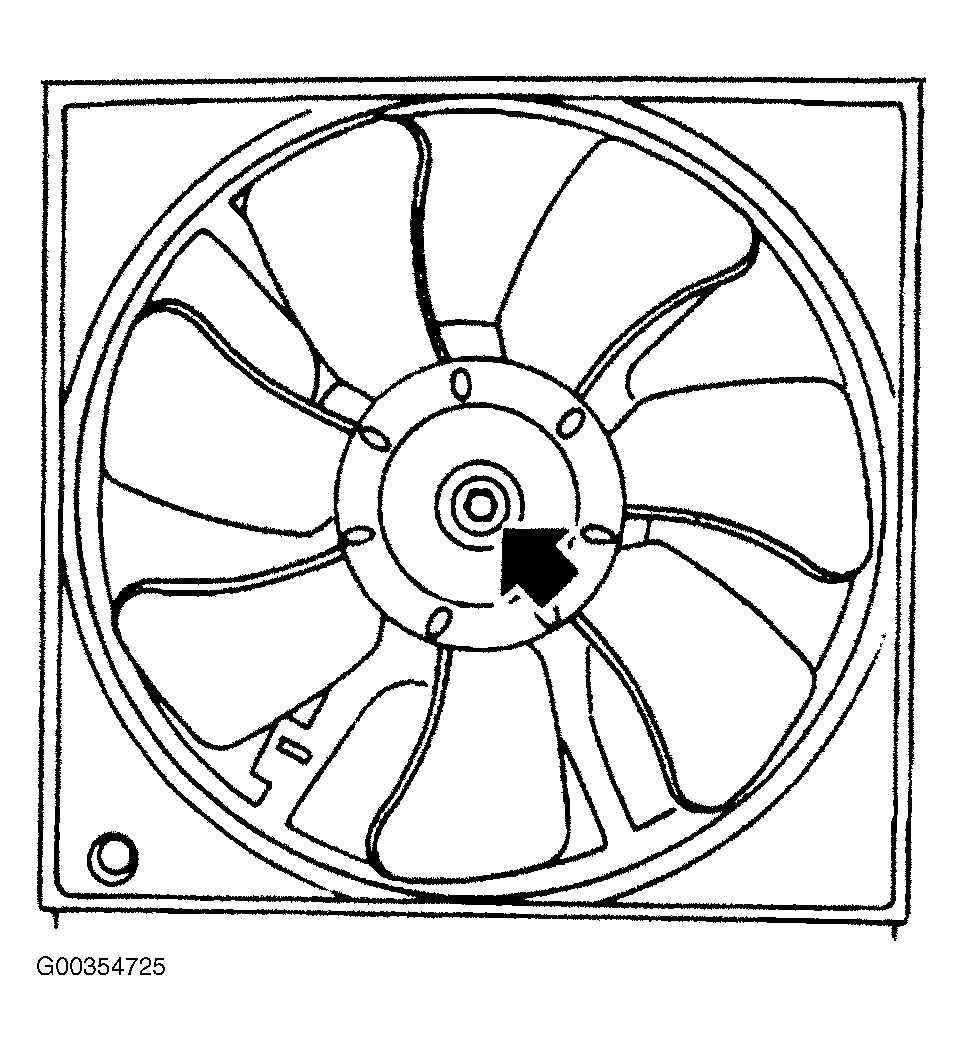

Fig 1: Removing Nut Holding Fan Onto Motor & Shroud

Courtesy of SUBARU OF AMERICA, INC.
