Removal & Installation

Disconnect battery ground cable.
Lift-up the vehicle.
Remove under cover. See Fig 1.
Disconnect connector of main fan motor. See Fig 2.
Lower the vehicle.
Remove air intake duct. See Fig 3.
Disconnect over flow hose. See Fig 4.
Remove reservoir tank. See Fig 5.
Remove radiator main fan motor assembly. See Fig 6.
NOTE: When the main fan motor assembly cannot be installed as is, loosen the sub fan motor assembly securing bolts to install it. See RADIATOR SUB FAN & FAN MOTOR .
Installation in the reverse order of removal. See Fig 6 and Fig 5 .

Fig 1: Removing Under Cover

Courtesy of SUBARU OF AMERICA, INC.

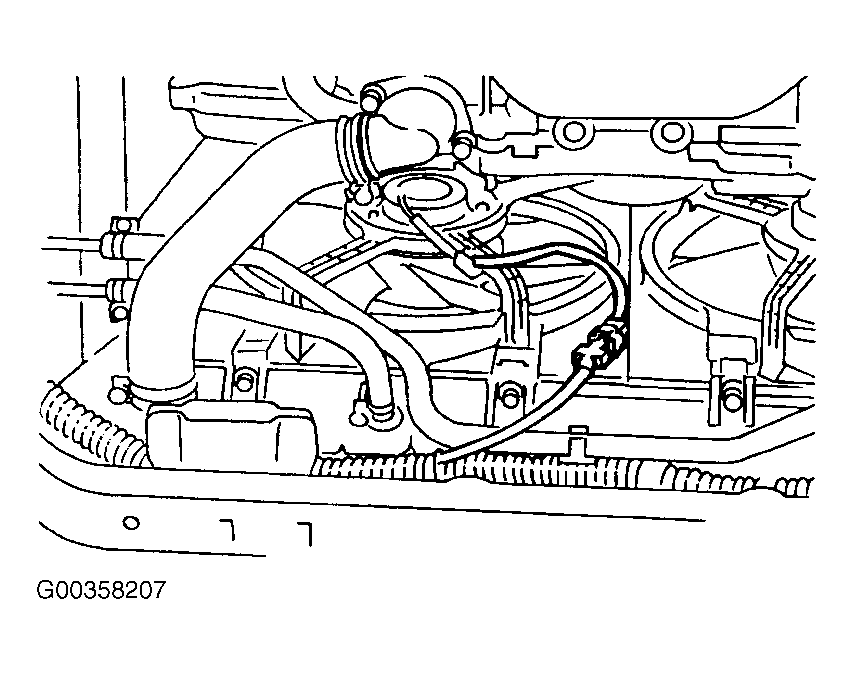

Fig 2: Disconnecting Connector Of Main Fan Motor

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Removing Air Intake Duct

Courtesy of SUBARU OF AMERICA, INC.

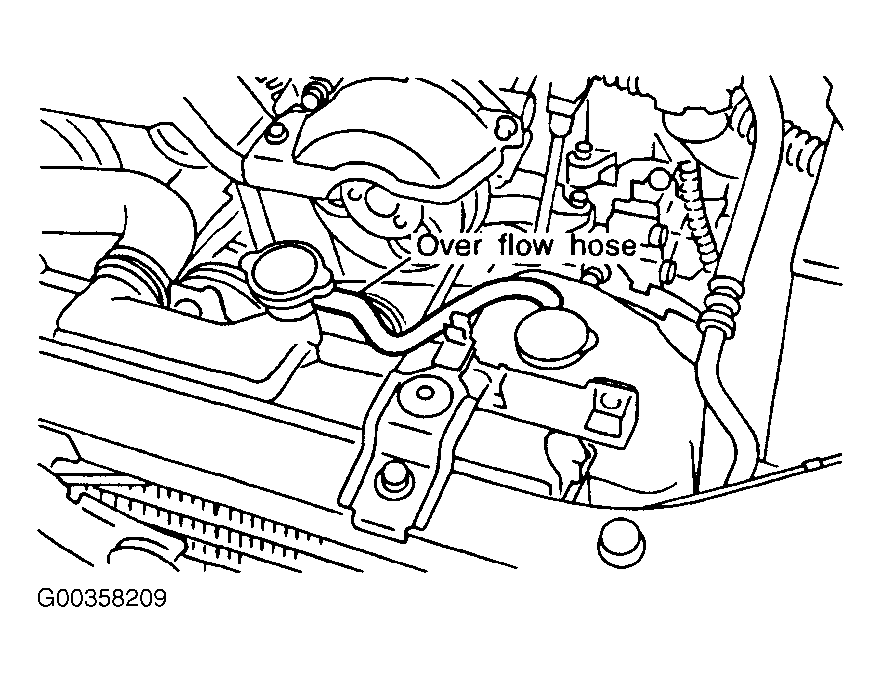

Fig 4: Disconnecting Over Flow Hose

Courtesy of SUBARU OF AMERICA, INC.

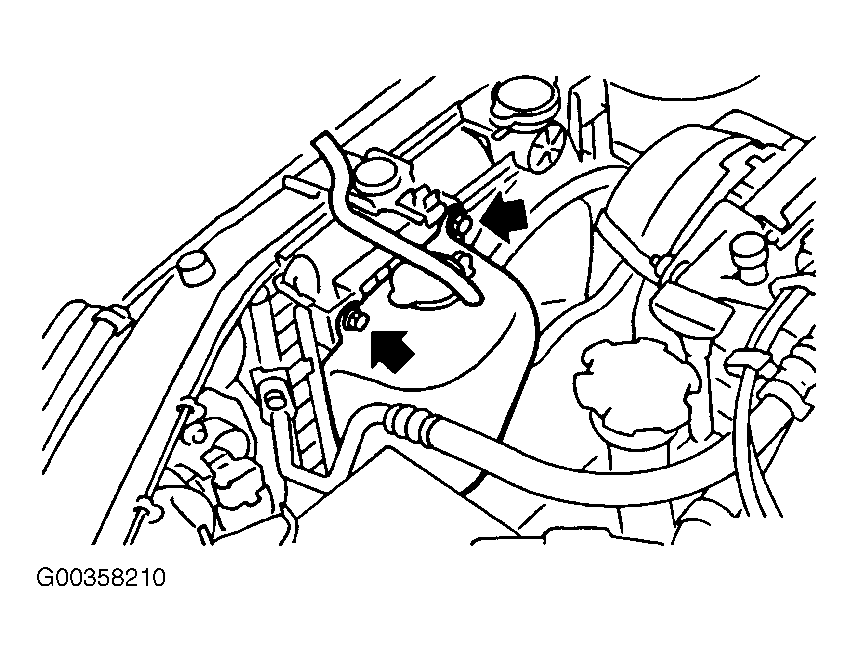

Fig 5: Removing Reservoir Tank

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Removing Radiator Main Fan Motor Assembly

Courtesy of SUBARU OF AMERICA, INC.
