Component Locations

For location of radiator fan components, see Fig 1 or Fig 2 .

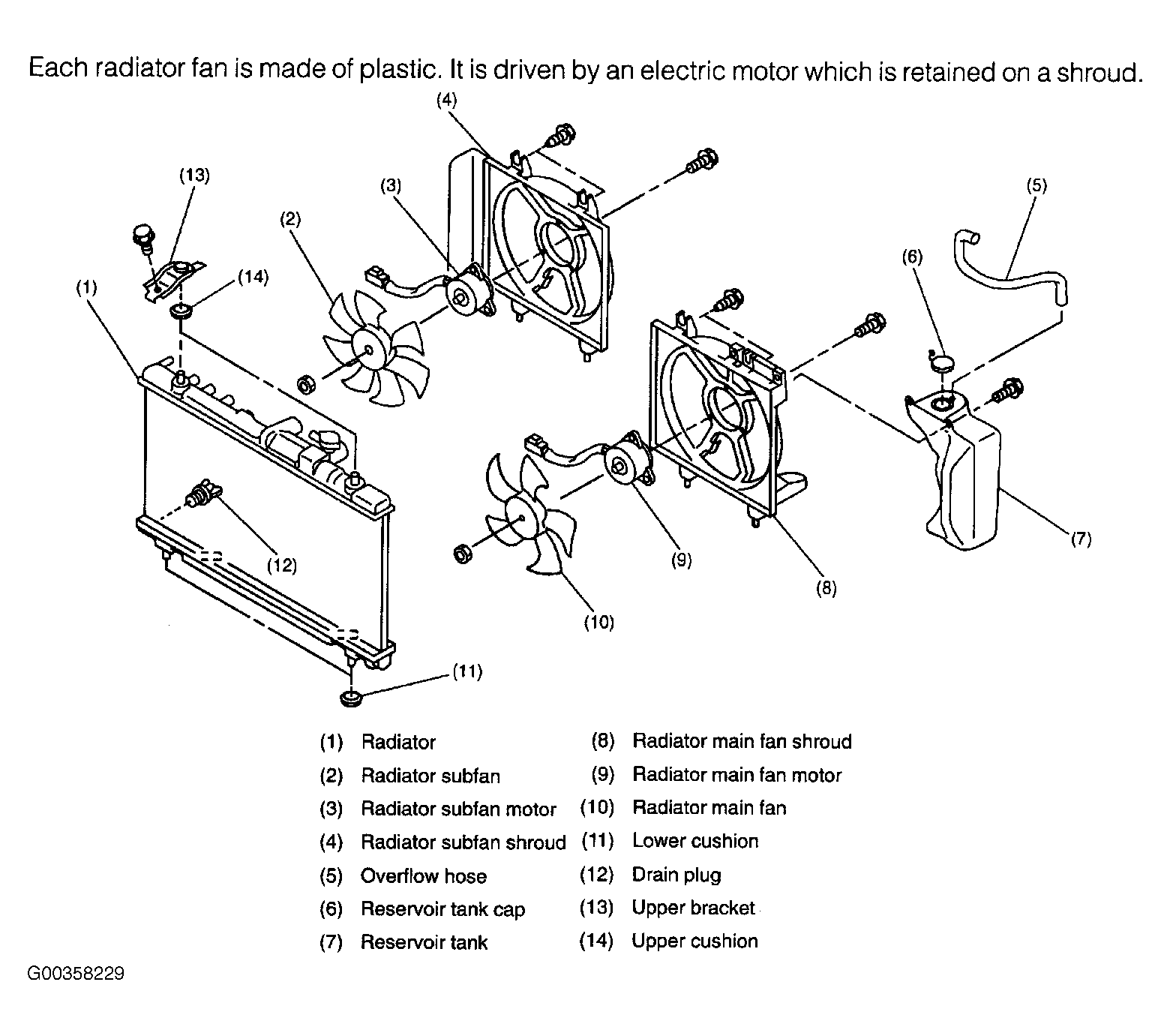

Fig 1: Exploded View Of Radiator Fan (H4SO) With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

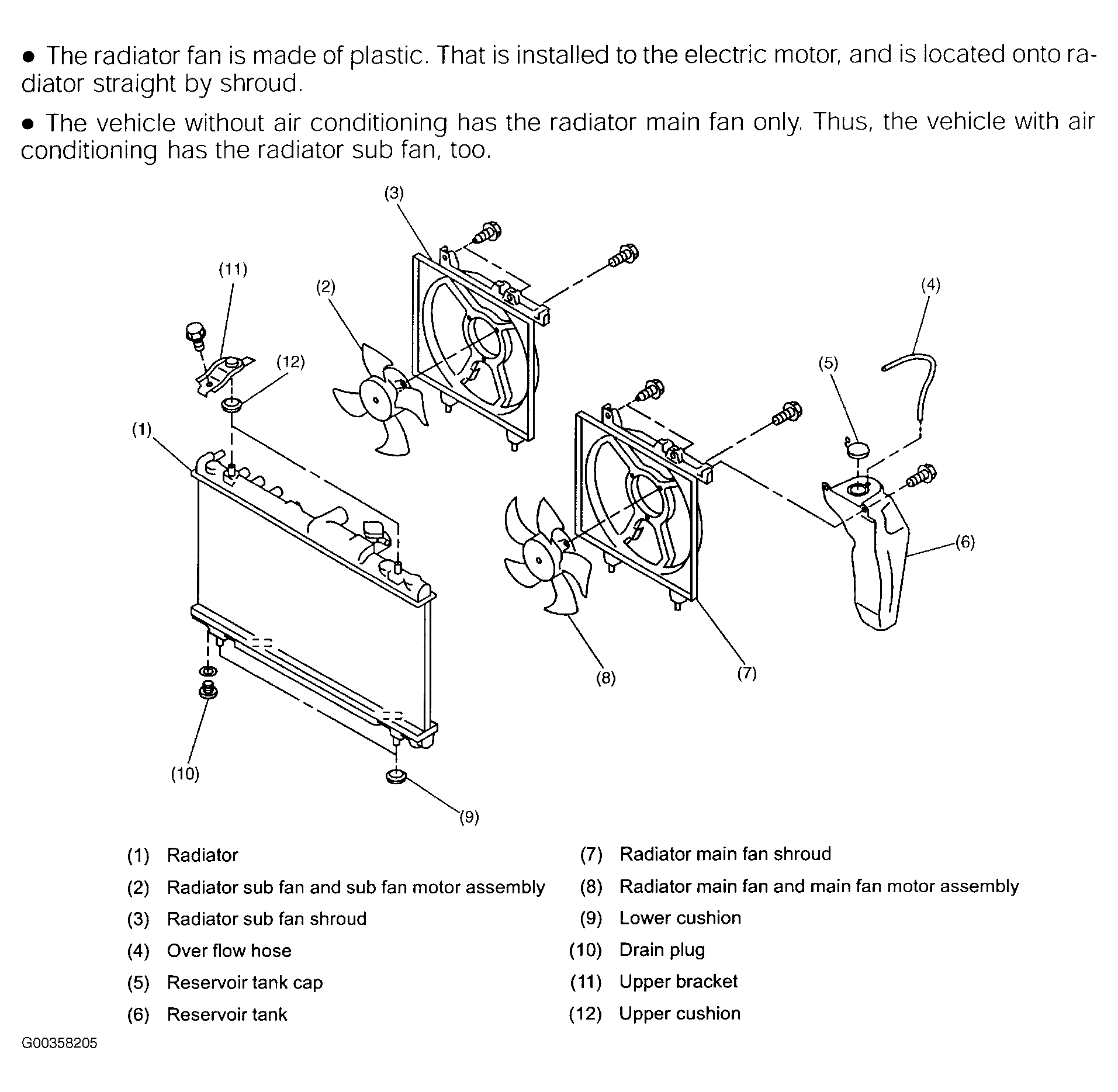

Fig 2: Exploded View Of Radiator Fan (H6DO) With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.
