Front Side Belt

NOTE: Perform the following procedures  1 to  4 with the engine installed to the body.
  1. Remove V-belt cover.

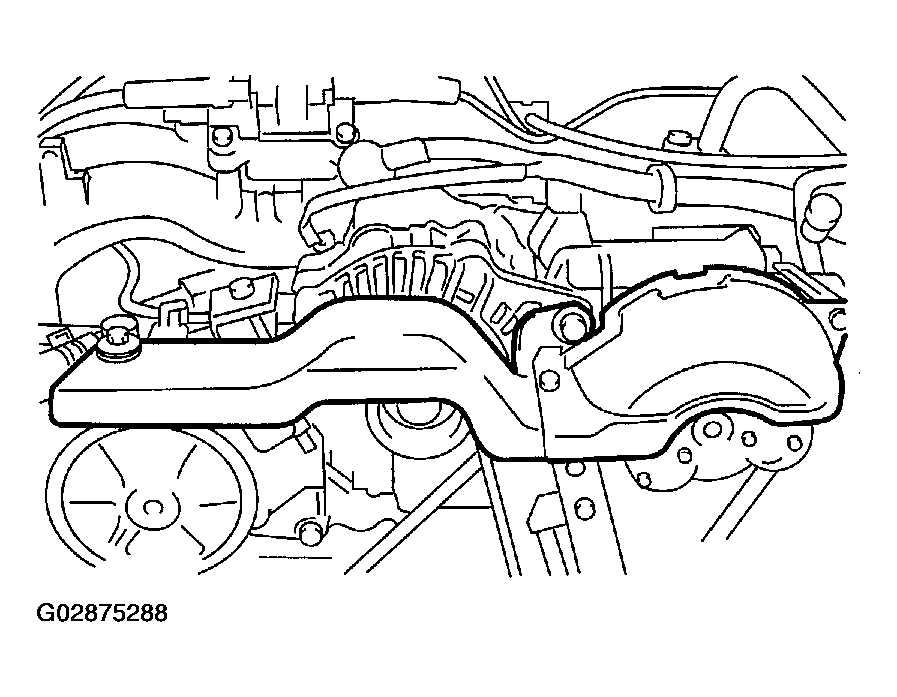

    Fig 1: Removing V-Belt Cover
    G02875288Courtesy of SUBARU OF AMERICA, INC.
  2. Loosen the lock bolt (A).
  3. Loosen the slider bolt (B).
  4. Remove the front side belt (C).

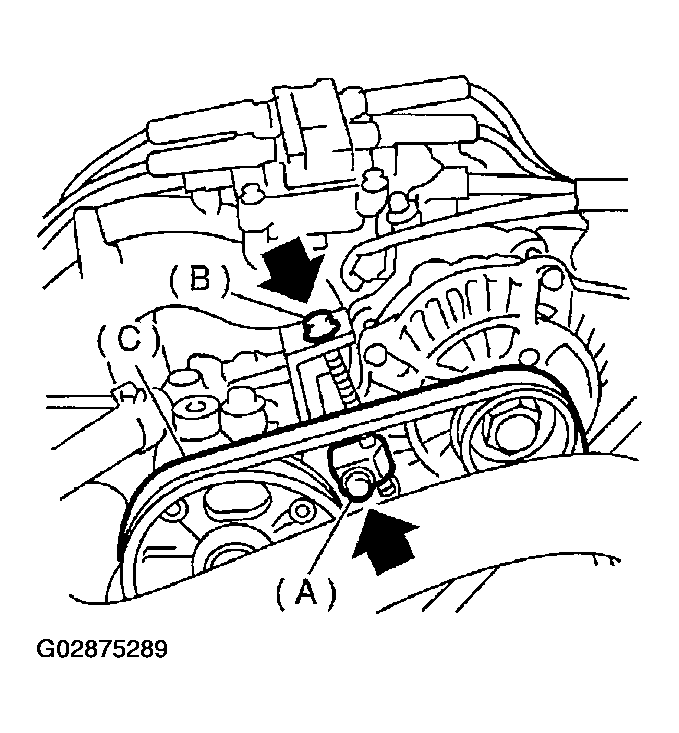

    Fig 2: Removing Front Side Belt
    G02875289Courtesy of SUBARU OF AMERICA, INC.
