Wiper and Washer System (Front): Schematic

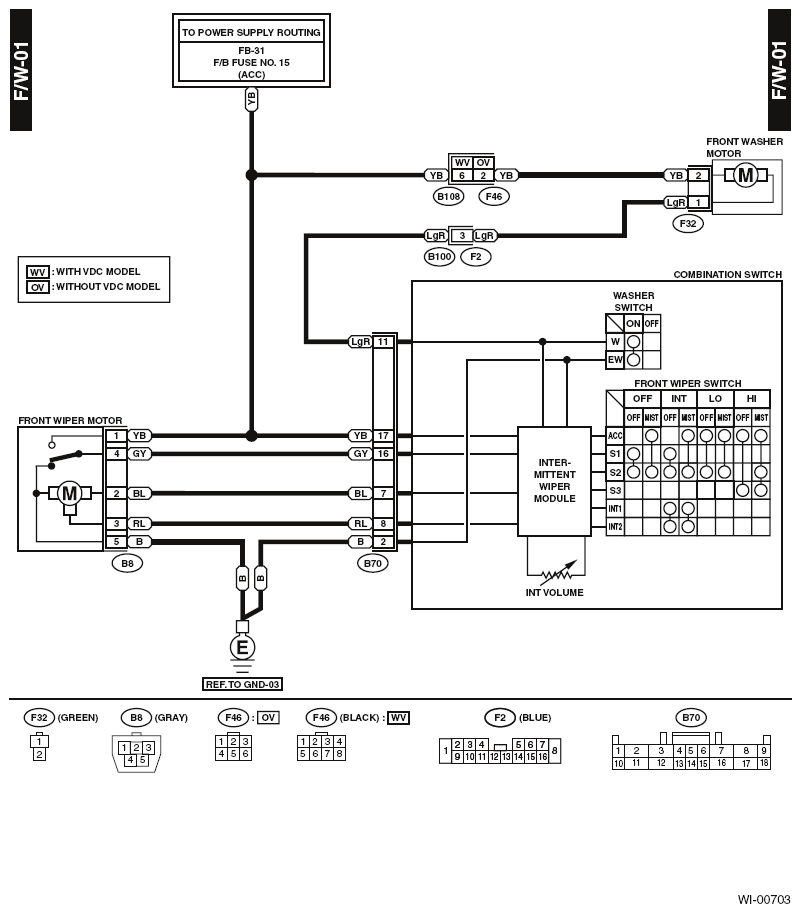

Fig 1: Wiper And Washer System (Front) Schematic

G11887847

Courtesy of SUBARU OF AMERICA, INC.
