Sedan & Wagon Model

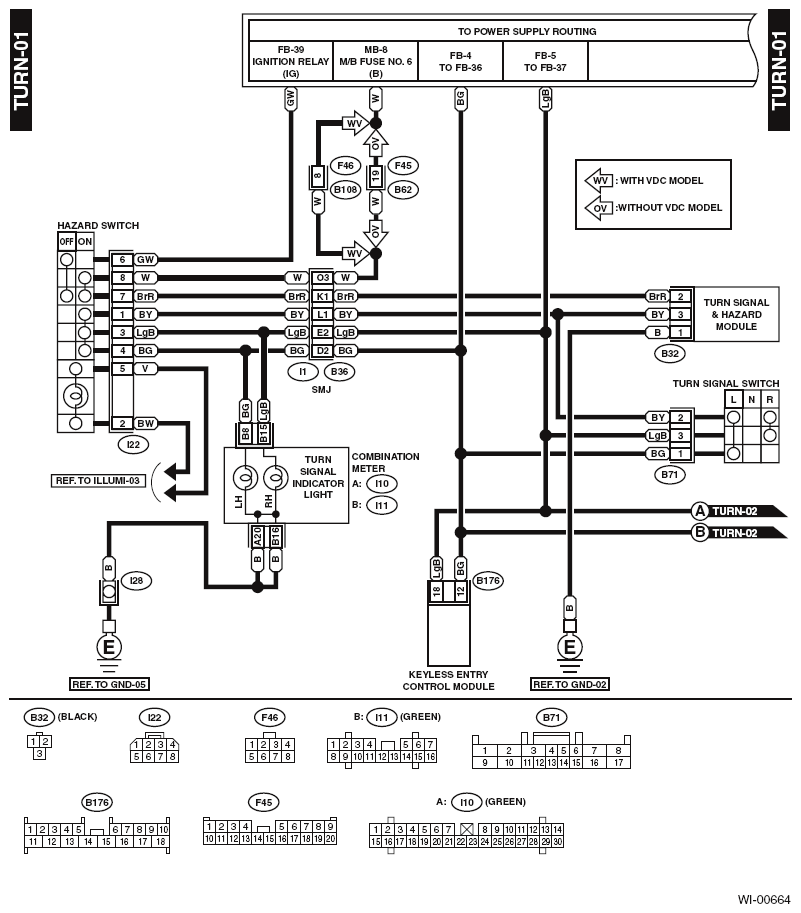

Fig 1: Turn Signal Light And Hazard Light System Schematic - Sedan And Wagon Model (1 Of 2)
G11887810Courtesy of SUBARU OF AMERICA, INC.

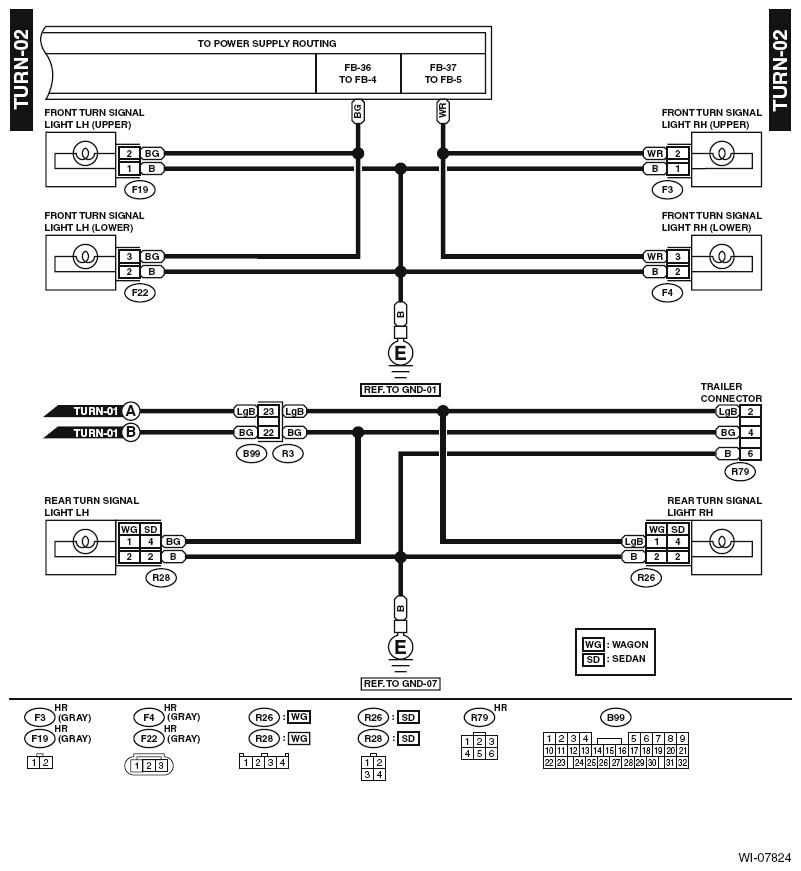

Fig 2: Turn Signal Light And Hazard Light System Schematic - Sedan And Wagon Model (2 Of 2)
G11887811Courtesy of SUBARU OF AMERICA, INC.
