Rear Accessory Power Supply System: Schematic

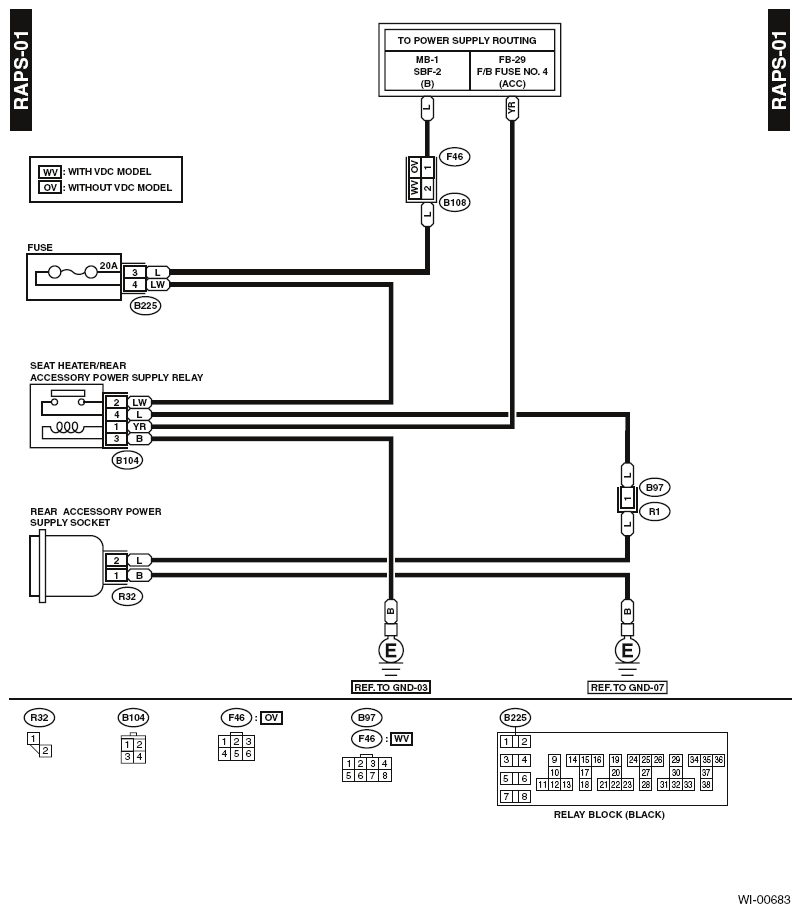

Fig 1: Rear Accessory Power Supply System Schematic

G11887829

Courtesy of SUBARU OF AMERICA, INC.
