Home >> Subaru >> 2003 >> Outback Limited, 4D Sedan >> Repair and Diagnosis (Single Page) >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams & Fuse/Relay Locations >> Parking Brake and Brake Fluid Level Warning System >> Schematic

Parking Brake and Brake Fluid Level Warning System: Schematic

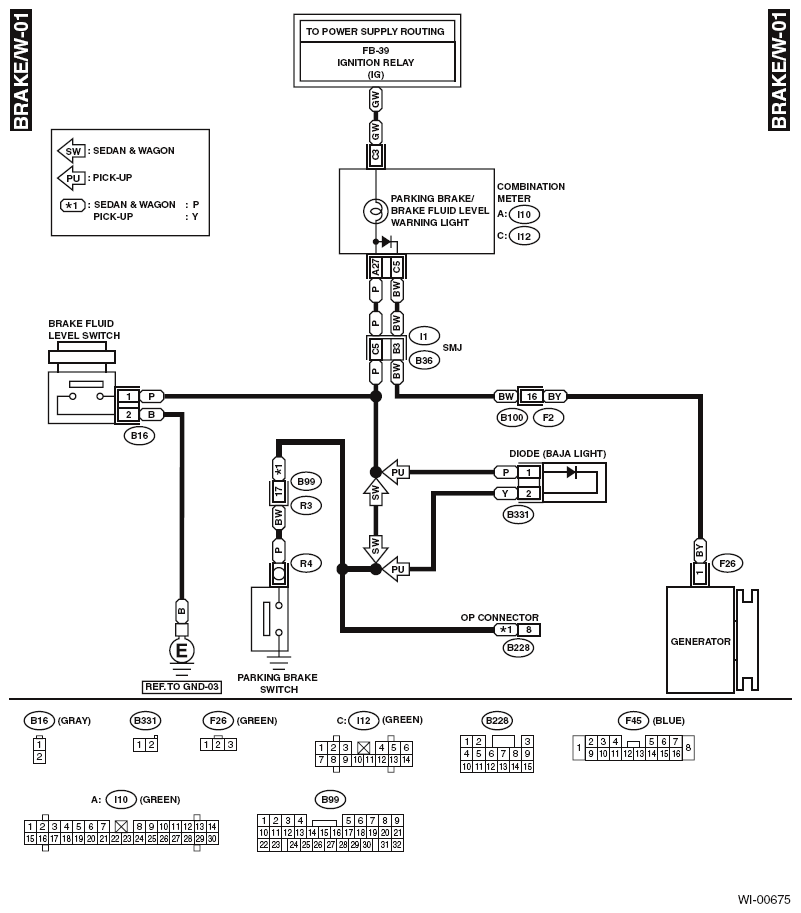

Fig 1: Parking Brake And Brake Fluid Level Warning System Schematic

G11887821

Courtesy of SUBARU OF AMERICA, INC.
