Engine Coolant Temperature Gauge System: Schematic

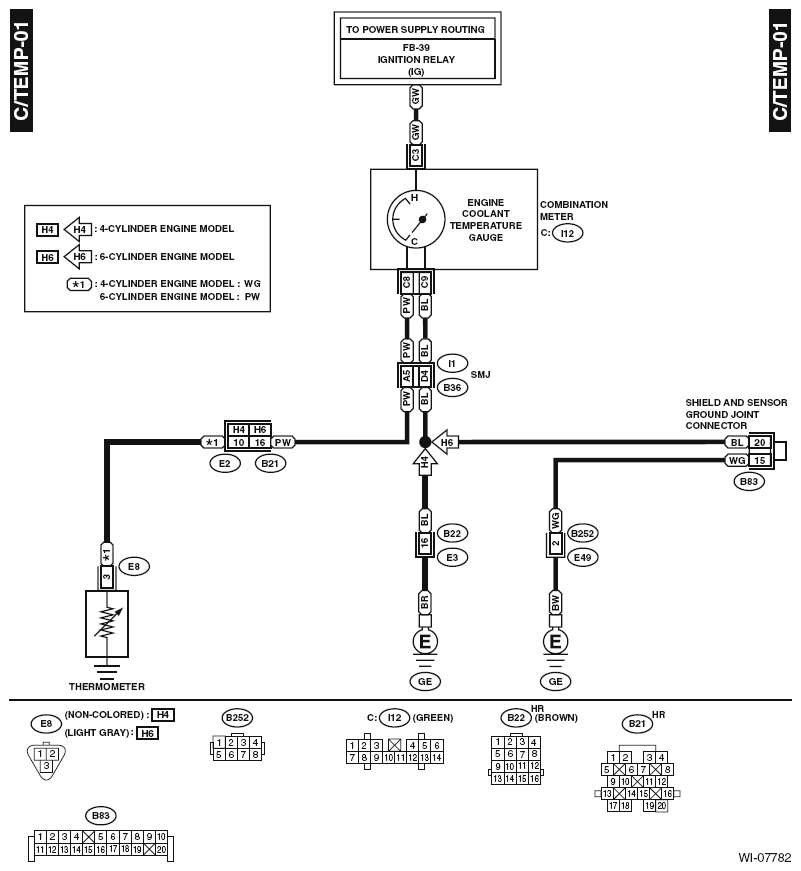

Fig 1: Engine Coolant Temperature Gauge System Schematic

G11887748

Courtesy of SUBARU OF AMERICA, INC.
