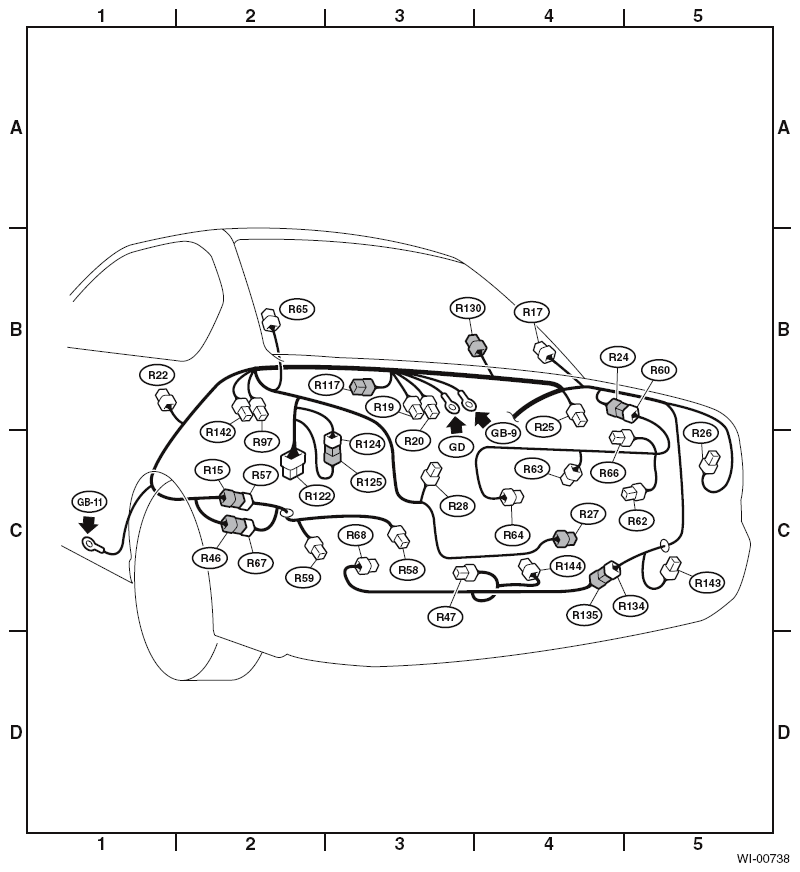

| R15 |
6 |
Black |
C-2 |
R57 |
Fuel tank cord |
| R17 |
1 |
Black |
B-3 |
|
Rear defogger (Power) (Without choke coil model) |
| R19 |
2 |
|
B-2 |
|
High-mounted stop light |
| R20 |
2 |
Blue |
B-3 |
|
Trunk room light |
| R22 |
3 |
Black |
B-1 |
|
Rear door switch LH |
| R24 |
8 |
|
B-4 |
R60 |
Trunk lid cord |
| R25 |
2 |
|
B-3 |
|
Rear defogger condenser |
| R26 |
4 |
|
B-4 |
|
Rear combination light RH |
| R27 |
2 |
|
C-3 |
|
Trunk room light switch |
| R28 |
4 |
|
C-3 |
|
Rear combination light LH |
| R46 |
2 |
|
C-2 |
R67 |
Fuel tank cord (With fuel pump control module model) |
| R47 |
3 |
|
C-3 |
|
Fuel tank pressure sensor |
| R57 |
6 |
Black |
C-2 |
R15 |
Rear wiring harness |
| R58 |
6 |
|
C-2 |
|
Fuel gauge module & fuel pump assembly |
| R59 |
2 |
|
C-2 |
|
Fuel gauge sub module |
| R60 |
8 |
|
B-4 |
R24 |
Rear wiring harness |
| R62 |
4 |
|
C-4 |
|
Rear finisher light RH |
| R63 |
2 |
|
C-3 |
|
License plate light |
| R64 |
4 |
|
C-3 |
|
Rear finisher light LH |
| R65 |
1 |
Black |
B-2 |
|
Rear defogger (Ground) (Without choke coil model) |
| R66 |
2 |
|
B-4 |
|
High-mounted stop light (Rear spoiler) |
| R67 |
2 |
|
C-2 |
R46 |
Rear wiring harness (With fuel pump control module model) |
| R68 |
2 |
|
C-3 |
|
Pressure control solenoid valve |
| R97 |
2 |
|
B-2 |
|
Antenna amp. |
| R117 |
2 |
|
B-2 |
|
Sub woofer (Mcintosh audio) |
| R122 |
10 |
|
C-2 |
|
Fuel pump control module |
| R124 |
2 |
|
C-2 |
R125 |
Fuel pump control solenoid |
| R125 |
2 |
|
C-2 |
R124 |
Fuel pump control solenoid |
| R130 |
2 |
|
B-3 |
|
Rear defogger (With choke coil model) |
| R134 |
6 |
|
C-4 |
R135 |
ORVR cord |
| R135 |
6 |
|
C-4 |
R134 |
Rear wiring harness |
| R142 |
2 |
Black |
B-2 |
|
Fuel pump condenser |
| R143 |
2 |
|
C-4 |
|
Drain valve |
| R144 |
2 |
|
C-3 |
|
Fuel tank sensor control valve |
