Rear Wiring Harness and Rear Tail Gate Cord: Location

Connector				Connecting to
No.	Pole	Color	Area	No.	Name
R15	6	Black	B-2	R57	Fuel tank cord
R16	3	(1)	C-5		Rear door switch RH
R17	1	(1)	B-4		Rear defogger
R26	6	(1)	C-3		Rear combination light RH
R28	6	(1)	C-1		Rear combination light LH
R47	3	(1)	C-3		Fuel tank pressure sensor
R57	6	(1)	B-3	R15	Rear wiring harness
R58	6	(1)	C-3		Fuel pump & Fuel gauge module
R59	2	(1)	C-3		Fuel gauge sub module
R62	2	(1)	C-3		Rear finisher light RH
R64	2	(1)	B-1		Rear finisher light LH
R68	2	(1)	C-3		Pressure control solenoid
R76	2	(1)	C-2		License plate light LH
R77	2	(1)	C-2		License plate light RH
R79	6	(1)	C-4		Trailer connector
R134	8	(1)	C-4	R135	On refueling vapor recovery cord
R135	8	(1)	C-4	R134	Rear wiring harness
R143	2	(1)	C-4		Drain valve
R144	2	(1)	C-3		Fuel tank sensor control valve
R150	16	(1)	C-4	R151	Rear wiring harness (Rear)
R151	16	(1)	B-4	R150	Rear wiring harness (Front)
R152	8	(1)	B-4	R153	Roof light cord
R153	8	(1)	B-4	R152	Rear wiring harness (Front)
R156	4	(1)	B-4		Baja light
R158	2	(1)	B-3		Switch back gate warning light
(1) Non-colored

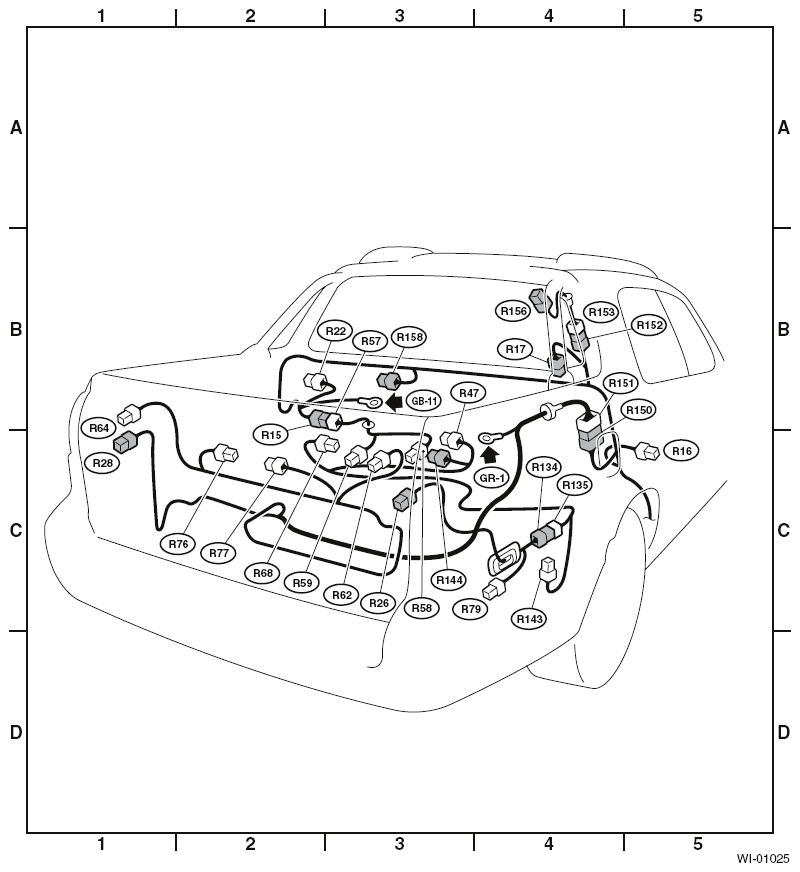

Fig 1: Rear Wiring Harness And Rear Tail Gate Cord Location

Courtesy of SUBARU OF AMERICA, INC.
