Rear Wiring Harness and Rear Gate Cord: Location

Connector				Connecting to
No.	Pole	Color	Area	No.	Name
R15	6	Black	D-1	R57	Fuel tank cord
R22	3	Black	C-1		Rear door switch LH
R25	2	(1)	C-3		Rear defogger condenser
R26	4	(1)	C-4		Rear combination light RH
R28	4	(1)	C-2		Rear combination light LH
R32	2	(1)	C-2		Rear accessory power supply socket
R37	2	(1)	C-3	D33	Rear gate cord
R38	8	(1)	C-3	D34
R39	8	Black	C-4	D35
R46	2	(1)	C-1	R67	Fuel tank cord
R47	3	(1)	C-3		Fuel tank pressure sensor
R57	6	Black	D-1	R15	Rear wiring harness
R58	6	(1)	D-2		Fuel gauge module & fuel pump assembly
R59	2	(1)	D-2		Fuel gauge sub module
R67	2	(1)	C-1	R46	Rear wiring harness
R68	2	(1)	C-2		Pressure control solenoid valve
R79	6	(1)	C-2		Trailer connector
R97	2	(1)	C-1		Antenna amp
R116	8	(1)	C-3		Rear wiper intermittent module
R117	2	(1)	C-3		Sub woofer (Mcintosh audio)
R122	10	(1)	C-1		Fuel pump control module
R124	2	(1)	C-1	R125	Fuel pump control solenoid
R125	2	(1)	C-1	R124	Fuel pump control solenoid
R134	6	(1)	C-3	R135	On refueling vapor recovery cord
R135	6	(1)	C-3	R134	Rear wiring harness
R143	2	(1)	C-3		Drain valve
R144	2	(1)	C-3		Fuel tank sensor control valve
(1) Non-colored

Connector				Connecting to
No.	Pole	Color	Area	No.	Name
D33	2	(1)	C-3	R37	Rear wiring harness
D34	8	(1)	C-3	R38
D35	8	Black	C-4	R39
D37	1	(1)	B-3		Luggage room light (Power)
D38	1	(1)	B-3		Luggage room light
D39	2	(1)	B-3		High-mounted stop light
D40	1	(1)	B-3		Rear defogger (Power)
D42	4	(1)	B-4		Rear finisher light RH
D43	4	(1)	B-3		Rear wiper motor
D44	2	(1)	B-4		License plate light RH
D45	2	(1)	A-3		License plate light LH
D46	2	Black	A-4		Rear gate latch switch
D47	4	(1)	B-4		Rear gate lock actuator
D48	1	Black	B-3		Rear defogger (Ground)
D49	4	(1)	A-3		Rear finisher light LH
D66	2	Black	C-3		Rear tweeter RH
D67	2	Black	B-2		Rear tweeter LH
(1) Non-colored

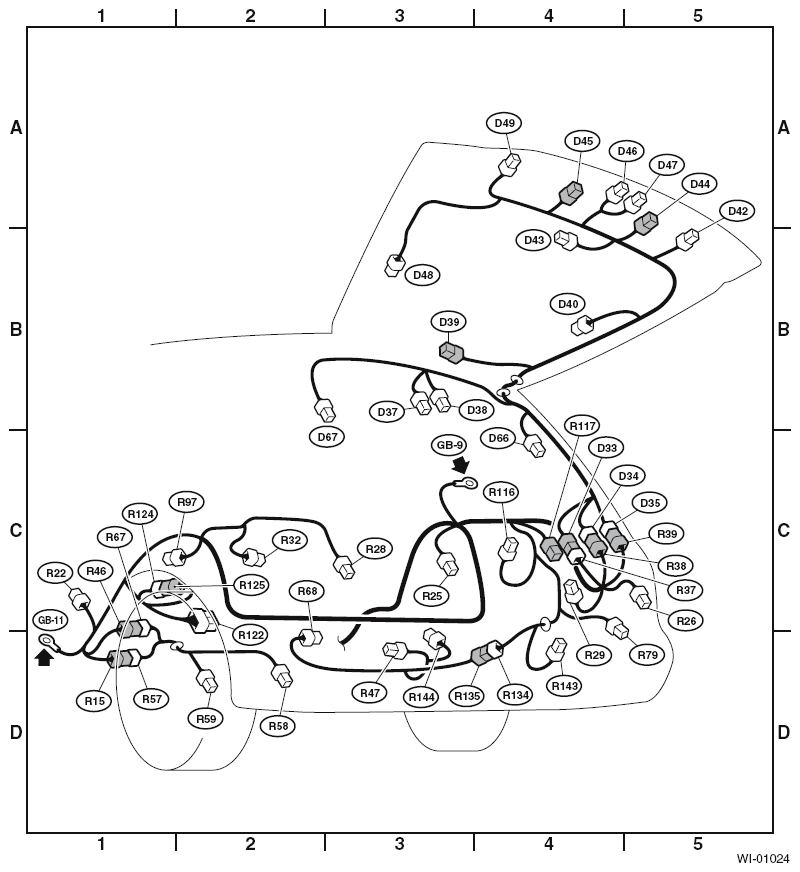

Fig 1: Rear Wiring Harness And Rear Gate Cord Location

Courtesy of SUBARU OF AMERICA, INC.
