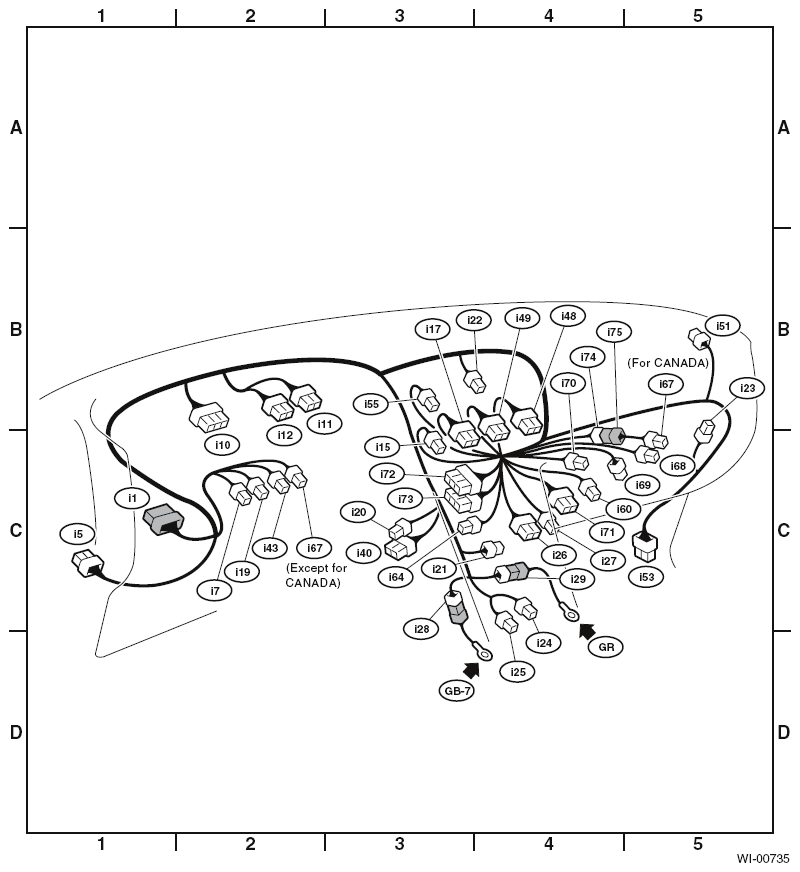

| i1 |
66 |
|
C-1 |
B36 |
Bulkhead wiring harness (SMJ) |
| i5 |
12 |
|
C-1 |
|
F/B |
| i7 |
6 |
Yellow |
C-2 |
|
Front fog light switch |
| i10 |
30 |
Green |
B-2 |
|
Combination meter |
| i11 |
16 |
Green |
B-2 |
|
| i12 |
14 |
Green |
B-2 |
|
| i15 |
6 |
|
B-3 |
|
Mode control panel (Heater control) |
| i17 |
20 |
Gray |
B-3 |
|
| i19 |
6 |
Brown |
C-2 |
|
Cruise control main switch |
| i20 |
8 |
|
C-2 |
B80 |
Bulkhead wiring harness (Manual A/C) |
| i21 |
2 |
|
C-3 |
|
Ash tray illumination light |
| i22 |
8 |
|
B-3 |
|
Hazard switch |
| i23 |
2 |
|
B-4 |
|
Glove box illumination light |
| i24 |
2 |
|
C-3 |
|
Cigarette lighter |
| i25 |
3 |
|
C-3 |
|
Cigarette lighter illumination light |
| i26 |
14 |
|
C-3 |
|
Radio |
| i27 |
2 |
|
C-3 |
|
CD player illumination light |
| i28 |
1 |
Black |
C-3 |
|
Body ground |
| i29 |
1 |
Black |
C-3 |
|
Body ground (Radio) |
| i40 |
10 |
|
C-2 |
B201 |
Bulkhead wiring harness (Manual A/C) |
| 22 |
|
C-2 |
B201 |
Bulkhead wiring harness (Auto A/C) (Onstar) |
| 16 |
|
C-2 |
B201 |
Bulkhead wiring harness (Pick-up) |
| i43 |
6 |
|
C-2 |
|
Wiper deicer switch |
| i48 |
16 |
Gray |
B-3 |
|
Auto A/C control module |
| i49 |
20 |
Gray |
B-3 |
|
| i51 |
2 |
Black |
B-4 |
|
Sunload sensor (Auto A/C) |
| i53 |
16 |
Blue |
C-4 |
R98 |
Rear wiring harness |
| i55 |
2 |
|
B-3 |
|
In-vehicle temperature sensor (Auto A/C) |
| i60 |
4 |
|
C-4 |
|
VDC off switch |
| i64 |
8 |
|
C-3 |
|
PREMIUM Audio |
| i67 |
6 |
Gray |
B-4 |
|
Cargo Light switch (For CANADA) |
| i67 |
6 |
Gray |
C-2 |
|
Cargo Light switch (Except For CANADA) |
| i68 |
6 |
Gray |
C-4 |
|
Baja Light |
| i69 |
4 |
|
C-4 |
|
Onstar switch 1 |
| i70 |
3 |
|
C-3 |
|
Onstar switch 2 |
| i71 |
14 |
|
C-3 |
|
Vehicle interface module |
| i72 |
32 |
Red |
C-3 |
|
Vehicle interface module |
| i73 |
32 |
Blue |
C-3 |
|
Vehicle interface module |
| i74 |
6 |
|
C-4 |
i75 |
Cargo Light switch adapter cord |
| i75 |
6 |
|
C-4 |
i74 |
Cargo Light switch adapter cord |
