4-Cylinder Engine Model

Connector Connecting to
No. Pole Color Area No. Name
E1 6 (1) A-4 B20 Bulkhead wiring harness
E2 20 (1) A-2 B21 Bulkhead wiring harness
E3 16 Brown A-2 B22 Bulkhead wiring harness
E4 2 (1) A-2   Purge control solenoid valve
E5 2 (1) B-1   Injector #1
E6 2 (1) A-2   Injector #3
E7 6 (1) A-3   Idle air control solenoid valve
E8 3 (1) B-2   Engine coolant temperature sensor and thermometer
E10 2 (1) B-2   Crankshaft position sensor
E11 1 (1) B-2   Oil pressure switch
E12 4 (1) A-2   Ignition coil and ignitor
E13 4 (1) A-3   Throttle position sensor
E14 2 (1) B-3   Knock sensor
E15 2 (1) B-3   Camshaft position sensor
E16 2 (1) B-3   Injector #2
E17 2 (1) B-4   Injector #4
E18 6 (1) A-4   EGR valve solenoid
E19 1 (1) B-2   Power steering oil pressure switch
E20 2 (1) A-3   Intake air temperature sensor
E21 3 (1) A-3   Pressure sensor
E42 2 (1) A-3   Air assist injector solenoid valve
(1) Non-colored
Connector Connecting to
No. Pole Color Area No. Name
T1 2 (1) D-2 B24 Bulkhead wiring harness (MT)
T2 2 (1) D-2 B25
T3 12 (1) D-3 B12 Bulkhead wiring harness (AT)
T4 20 Black D-3 B11
T5 4 Gray C-2 B19 Bulkhead wiring harness
T6 4 Gray D-4   Rear oxygen sensor
T7 12 (1) C-4   Inhibitor switch
(1) Non-colored

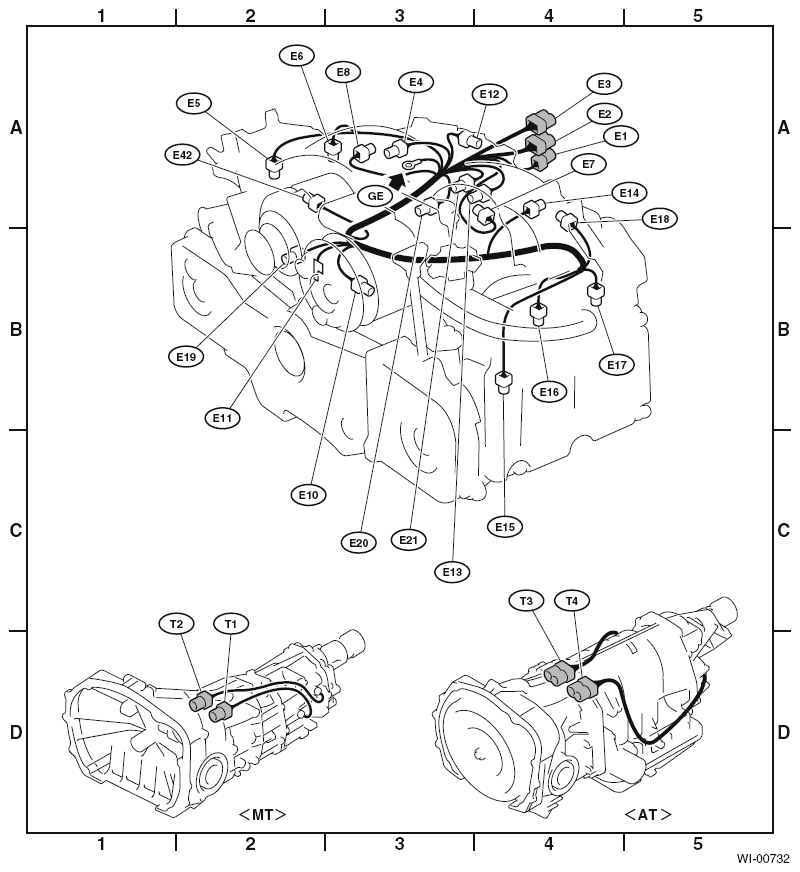

Fig 1: Engine Wiring Harness And Transmission Cord Location - 4 Cylinder Engine Model
G11887858Courtesy of SUBARU OF AMERICA, INC.
