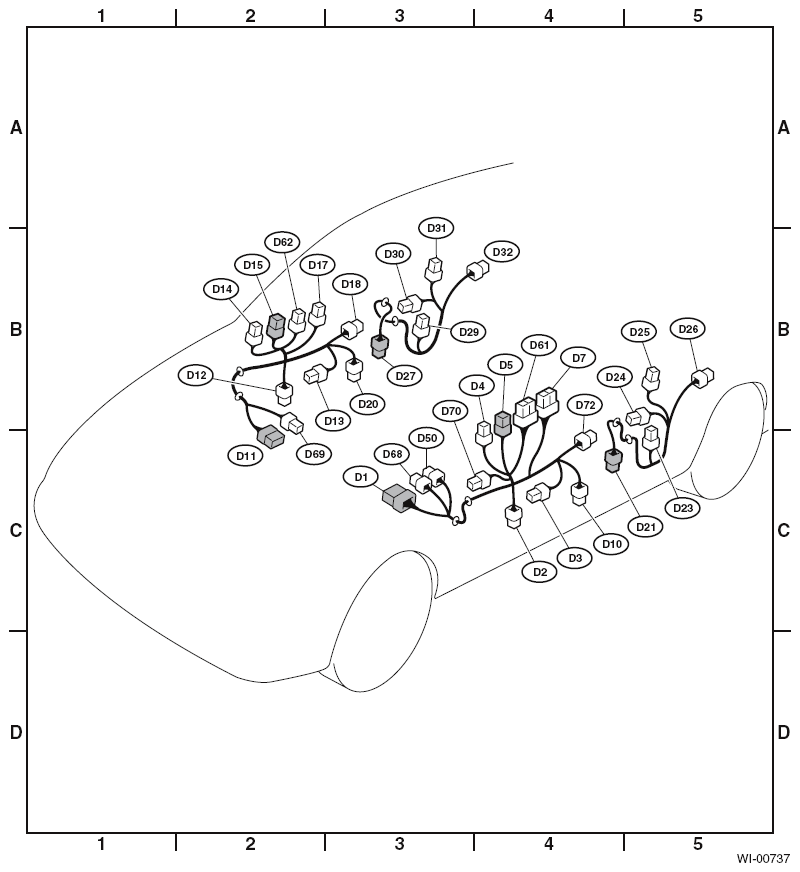

| D1 |
24 |
|
C-2 |
B30 |
Bulkhead wiring harness |
| D2 |
2 |
|
C-3 |
|
Front door speaker LH |
| D3 |
2 |
Green |
C-3 |
|
Front power window motor LH |
| D4 |
2 |
Black |
C-3 |
|
Front door tweeter LH |
| D5 |
6 |
|
C-3 |
|
Remote control rearview mirror LH |
| D7 |
16 |
|
C-3 |
|
Power window main switch |
| D10 |
2 |
|
C-3 |
|
Step light LH |
| D11 |
24 |
|
C-2 |
B101 |
Bulkhead wiring harness |
| D12 |
2 |
|
C-2 |
|
Front door speaker RH |
| D13 |
2 |
Green |
B-2 |
|
Front power window motor RH |
| D14 |
2 |
Black |
B-2 |
|
Front door tweeter RH |
| D15 |
6 |
|
B-2 |
|
Remote control rearview mirror RH |
| D17 |
6 |
|
B-2 |
|
Front power window sub switch RH |
| D18 |
4 |
|
B-2 |
|
Front door lock actuator RH |
| D20 |
2 |
|
B-2 |
|
Step light RH |
| D21 |
8 |
|
C-3 |
R11 |
Rear wiring harness |
| D23 |
2 |
Black |
C-4 |
|
Rear door speaker LH |
| D24 |
2 |
Green |
C-4 |
|
Rear power window motor LH |
| D25 |
6 |
|
B-4 |
|
Rear power window sub switch LH |
| D26 |
4 |
|
B-4 |
|
Rear door lock actuator LH |
| D27 |
8 |
|
B-2 |
R14 |
Rear wiring harness |
| D29 |
2 |
Black |
B-2 |
|
Rear door speaker RH |
| D30 |
2 |
Green |
B-2 |
|
Rear power window motor RH |
| D31 |
6 |
|
B-2 |
|
Rear power window sub switch RH |
| D32 |
4 |
|
B-3 |
|
Rear door lock actuator RH |
| D50 |
2 |
|
C-3 |
B113 |
Bulkhead wiring harness |
| D61 |
10 |
|
C-3 |
|
Remote control rearview mirror switch |
| D62 |
6 |
Brown |
B-2 |
|
Front door lock switch RH |
| D68 |
2 |
|
C-3 |
R99 |
Rear wiring harness |
| D69 |
2 |
|
C-2 |
R101 |
Rear wiring harness |
| D70 |
2 |
Gray |
C-3 |
|
Keyless buzzer |
| D72 |
4 |
|
C-3 |
|
Front door lock actuator LH |
