Clearance Light and Illumination Light System
>>
Schematic
>>
Sedan & Wagon Model
Sedan & Wagon Model

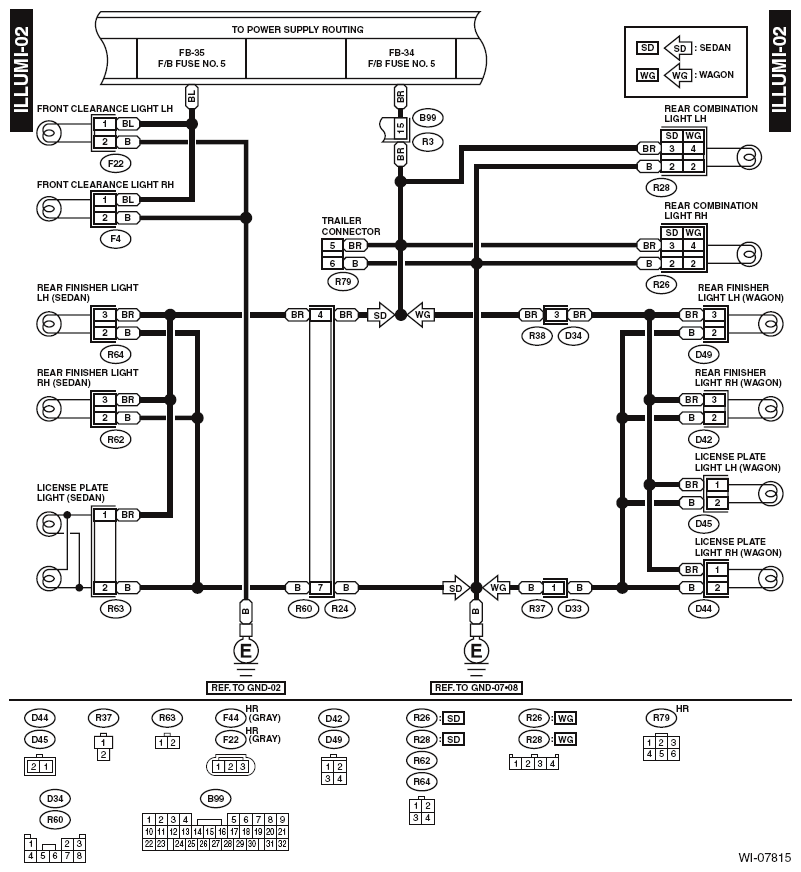

Fig 1: Clearance Light And Illumination Light System - Sedan And Wagon Model (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

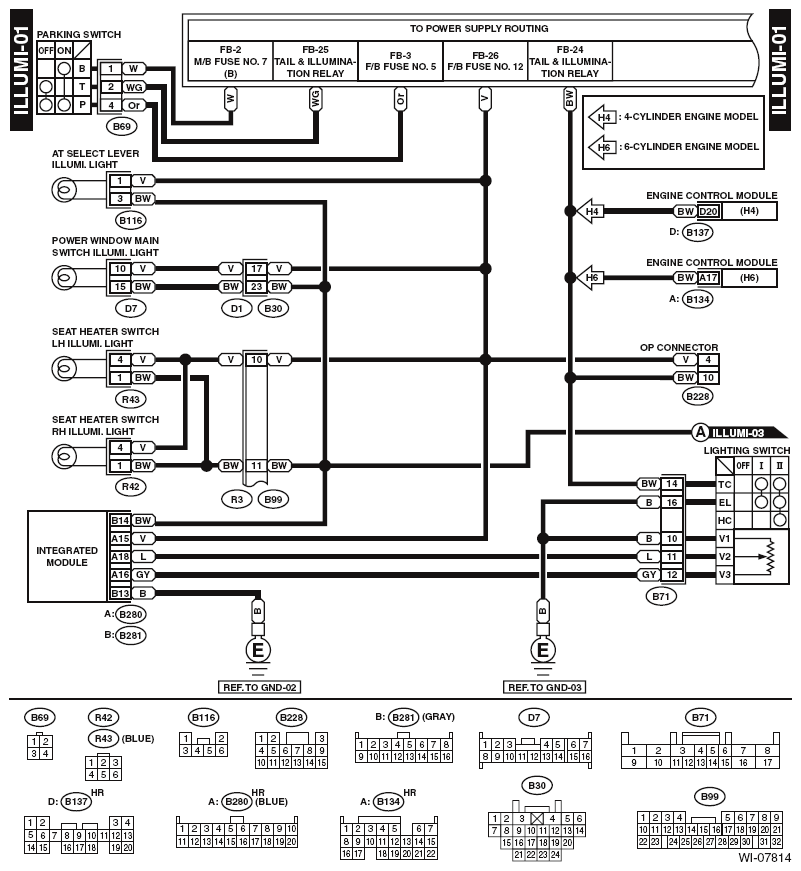

Fig 2: Clearance Light And Illumination Light System - Sedan And Wagon Model (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

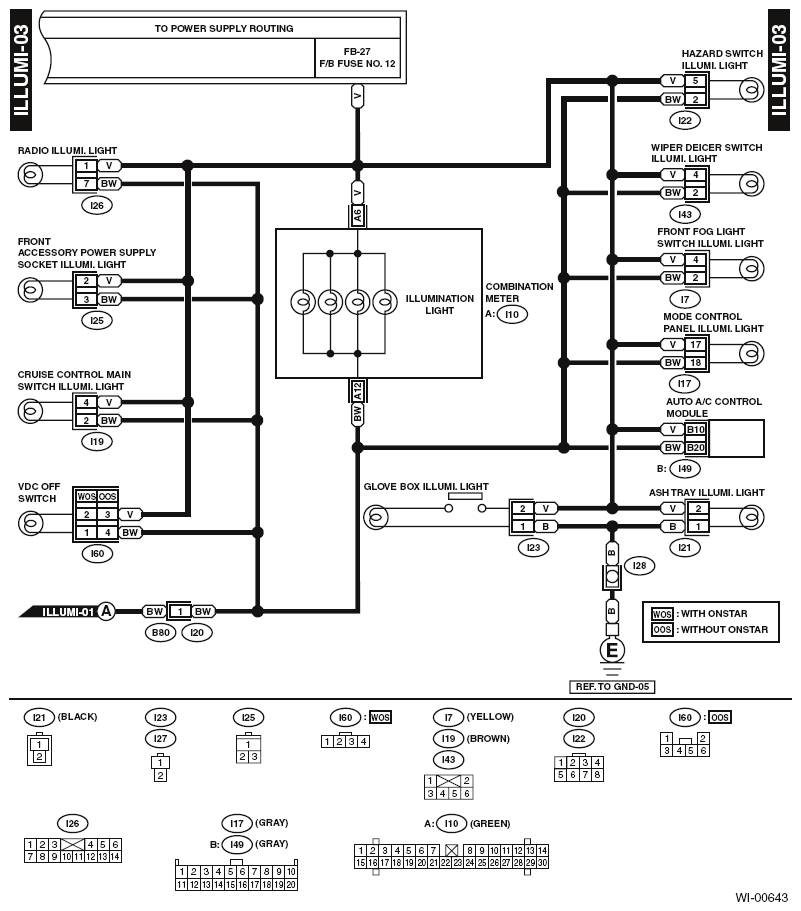

Fig 3: Clearance Light And Illumination Light System - Sedan And Wagon Model (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
